Splice Location Index
DESCRIPTION
If a link on the index chart to a figure is not provided, that means that the splice and/or figure in question does NOT apply to the vehicle model selected.
The abbreviation T/O (Take Out) is used in the location column to indicate a point in which the wiring harness branches out to a component.
The abbreviation N/S means Not Shown in the illustrations.

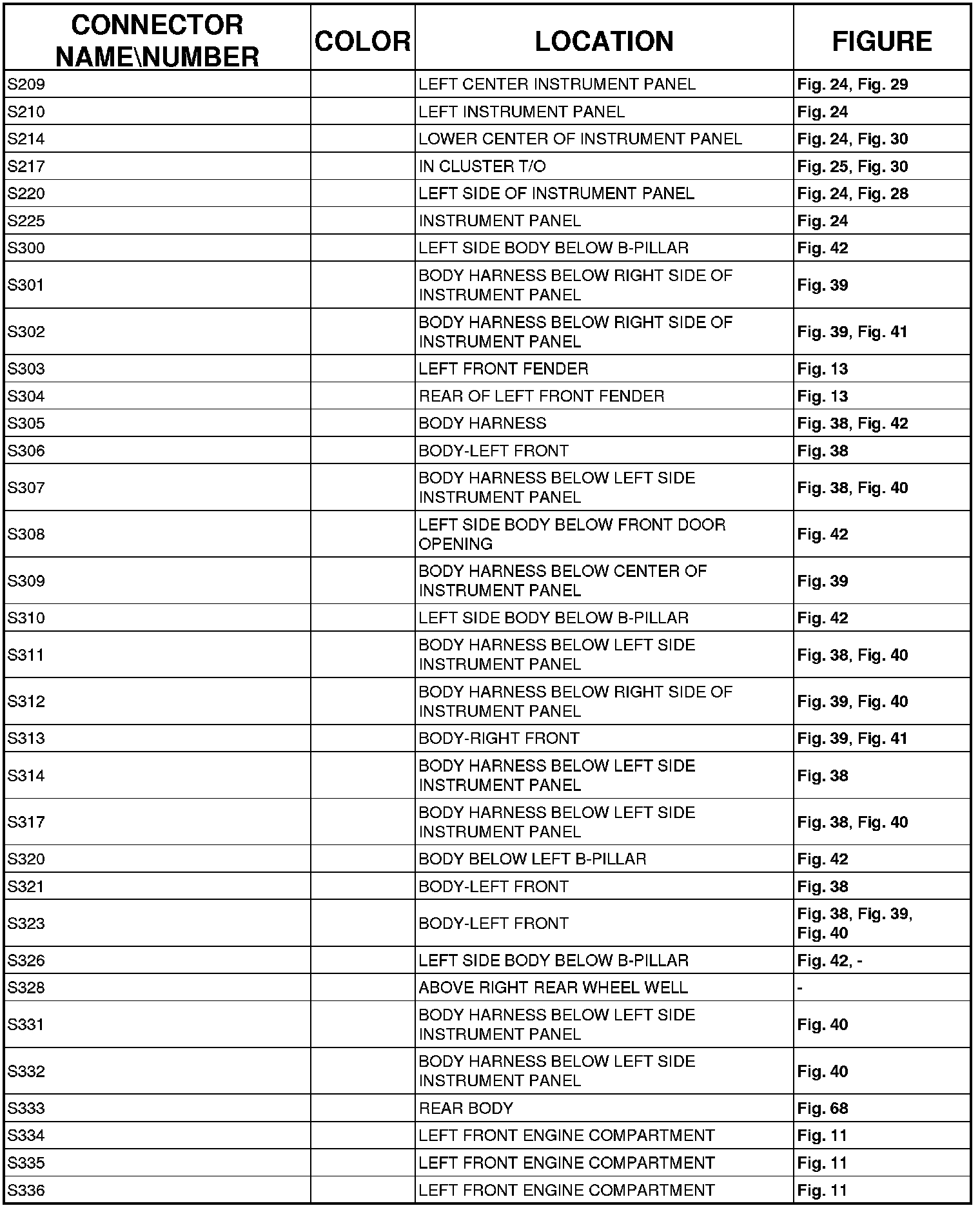

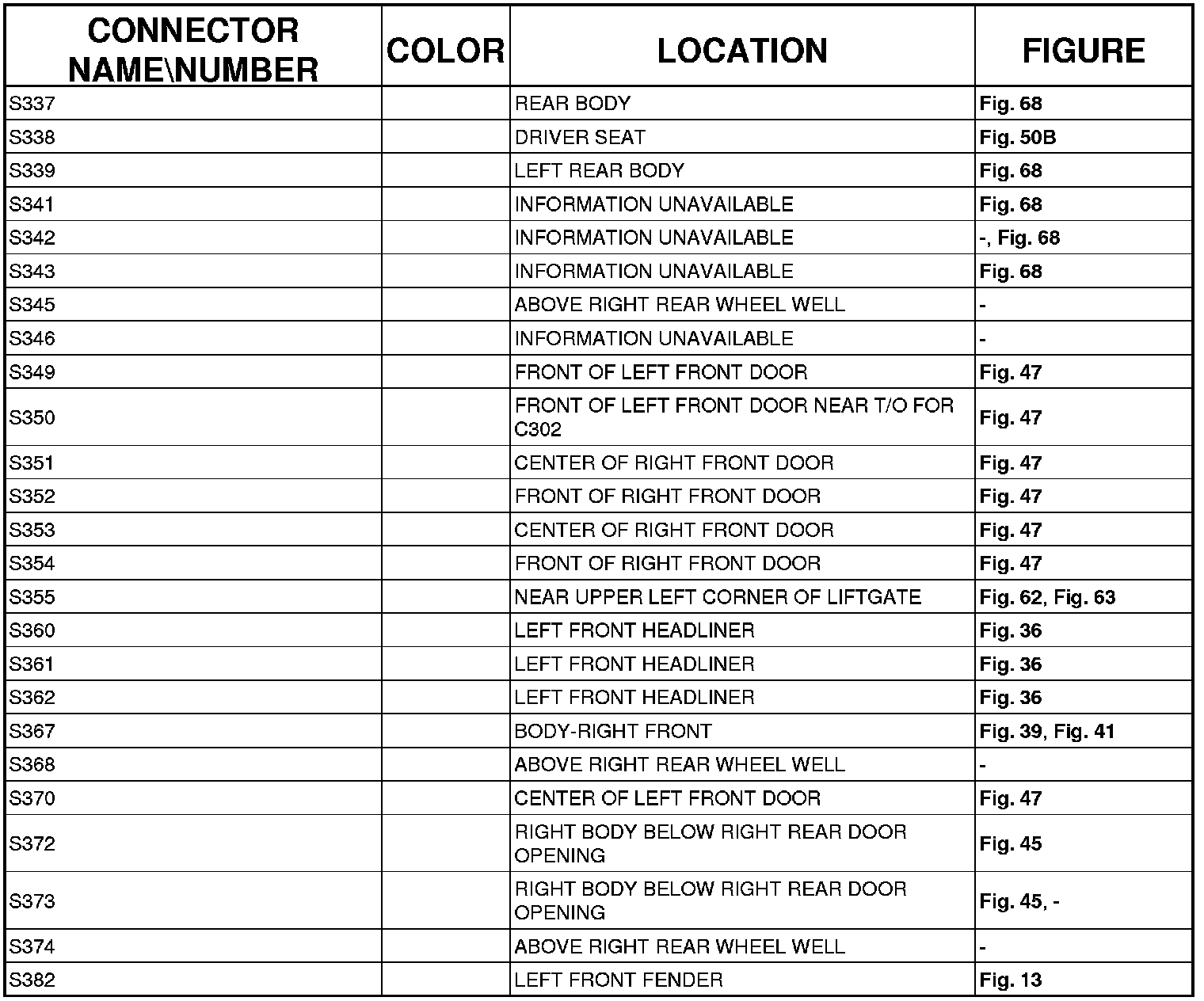

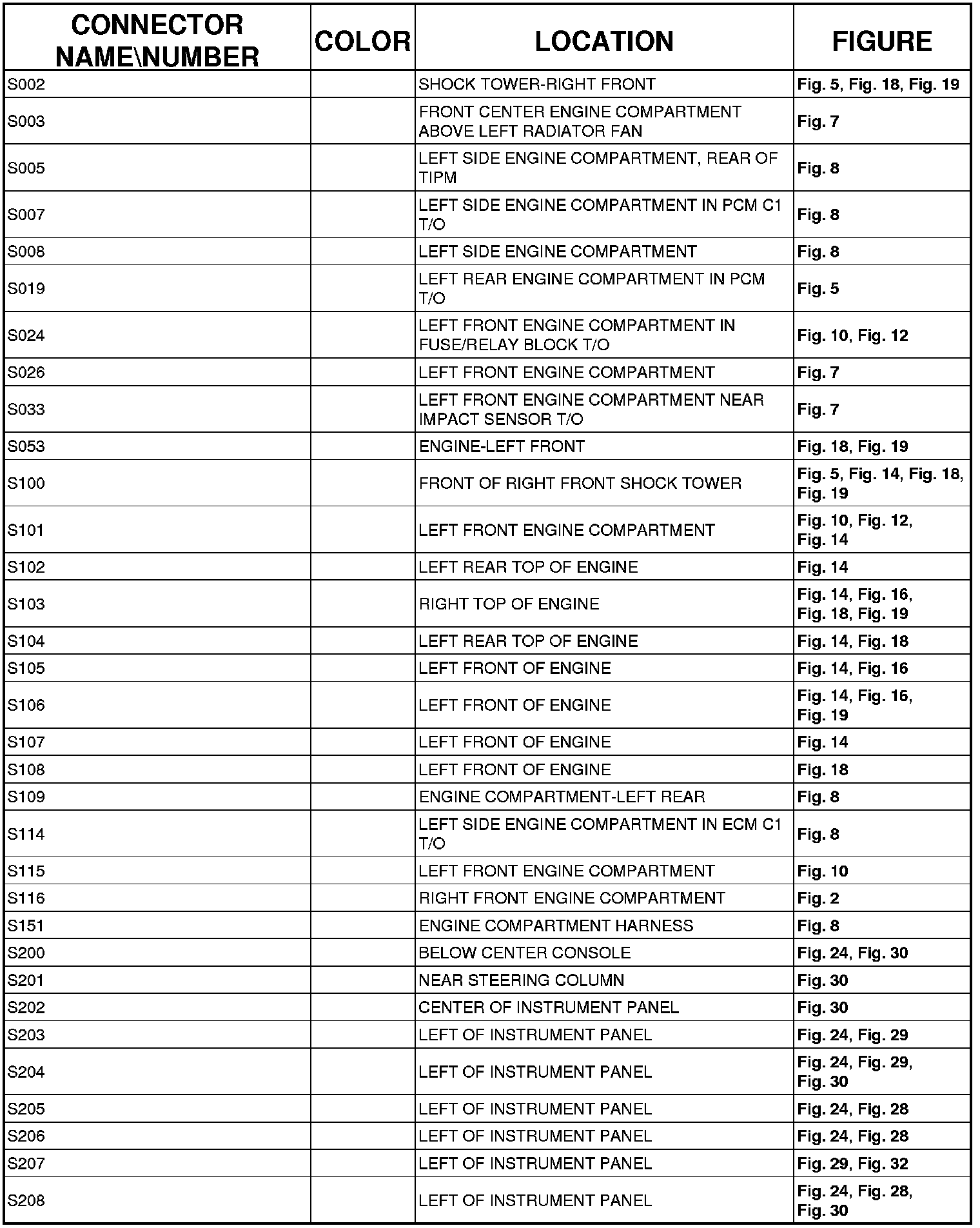

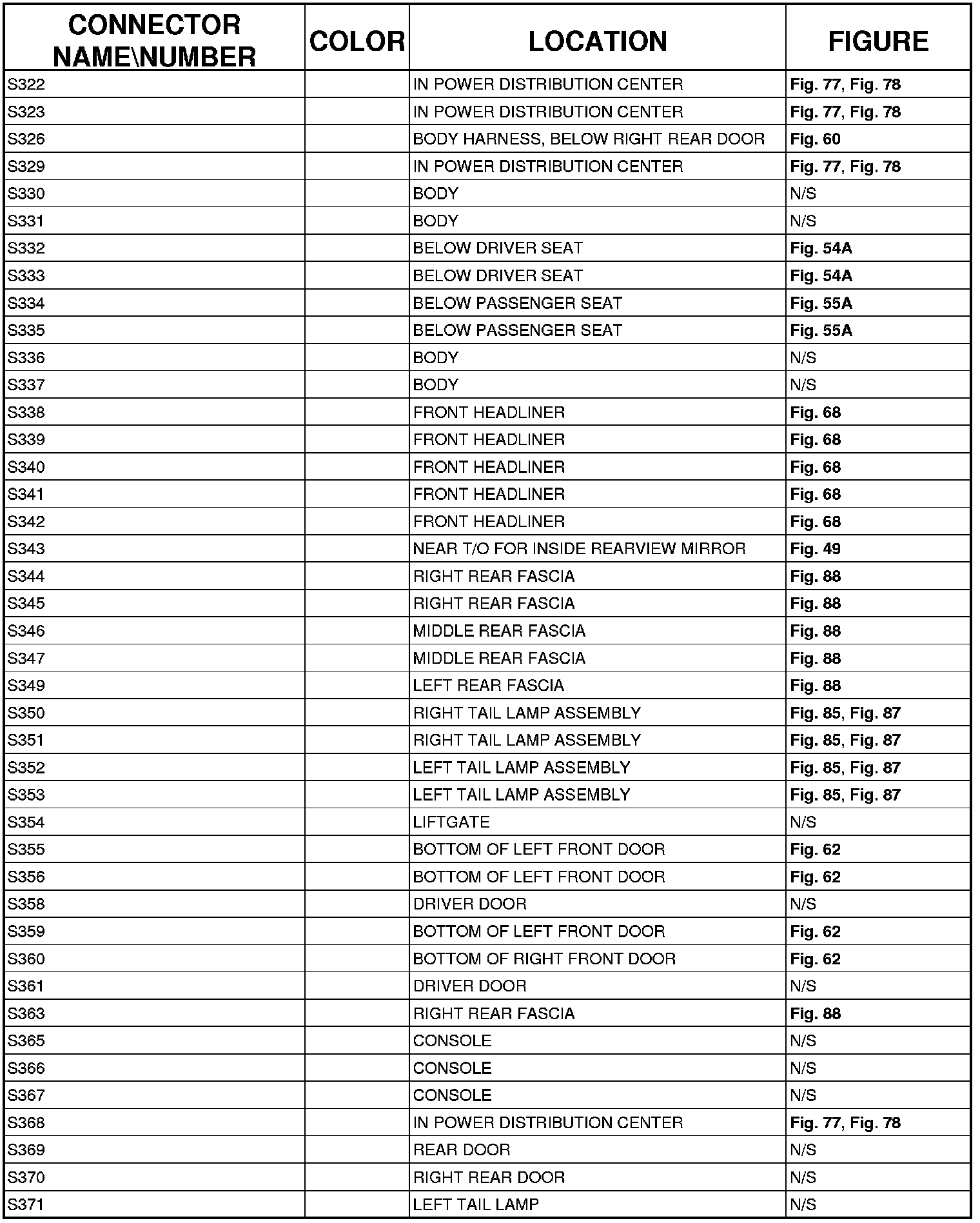

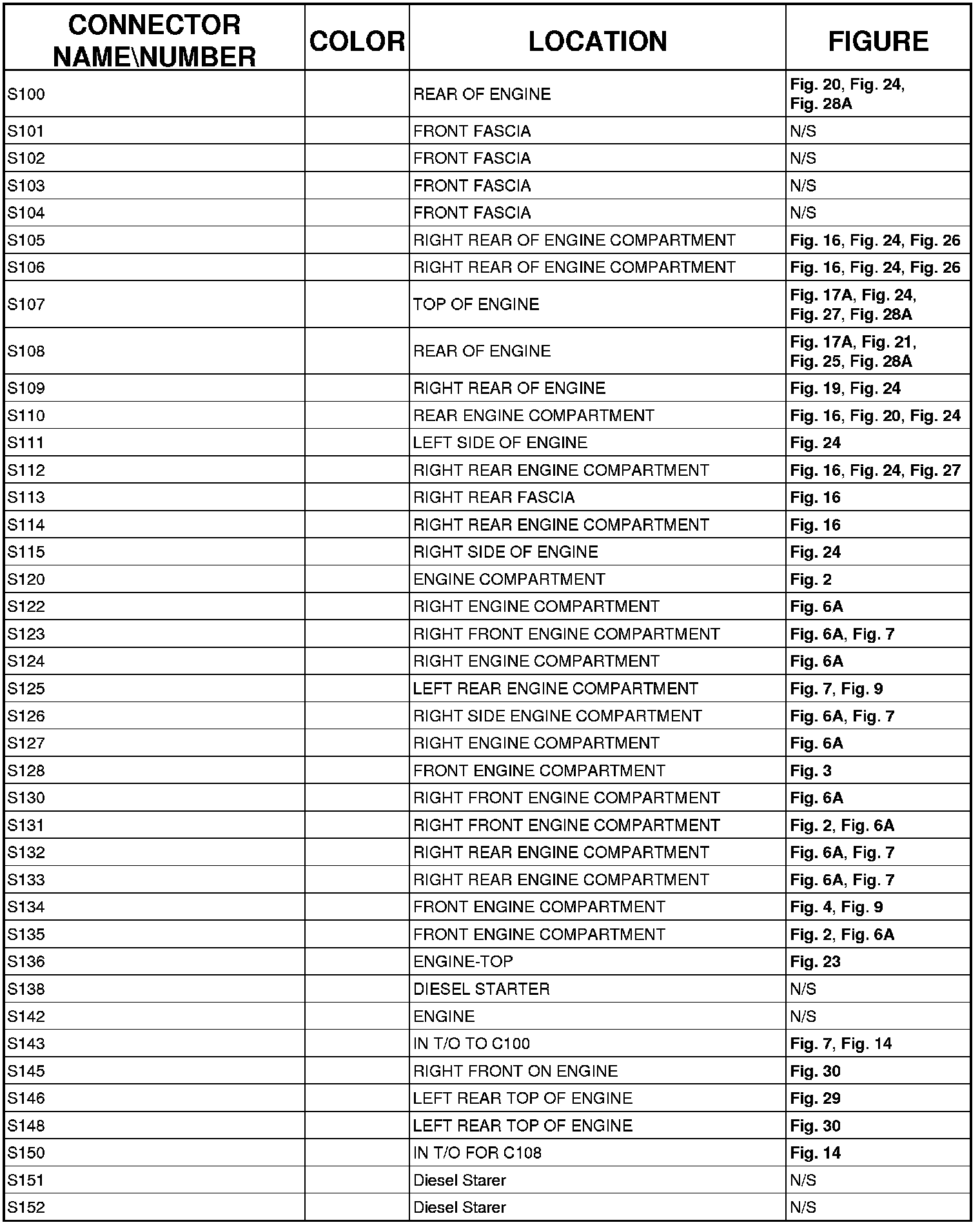

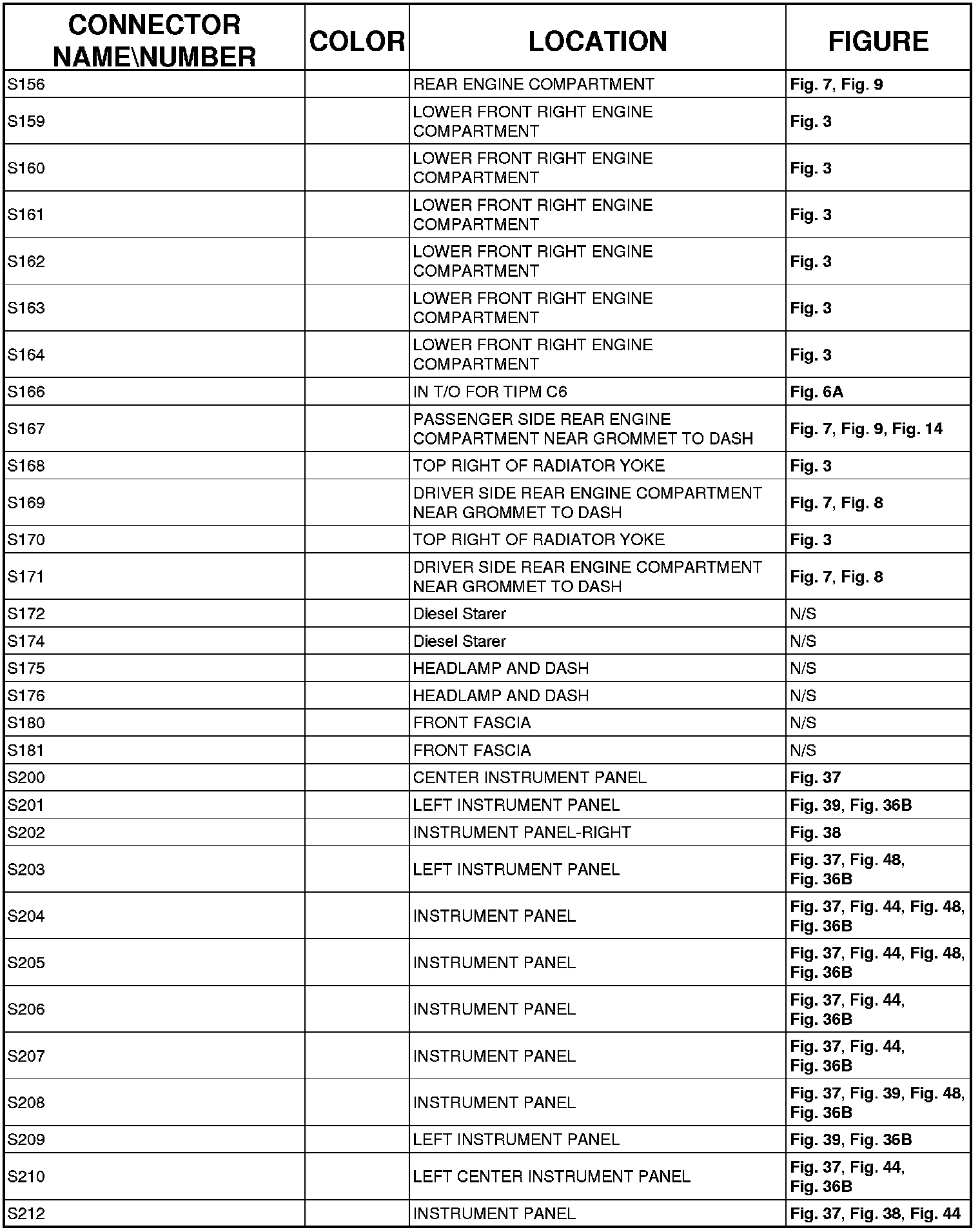

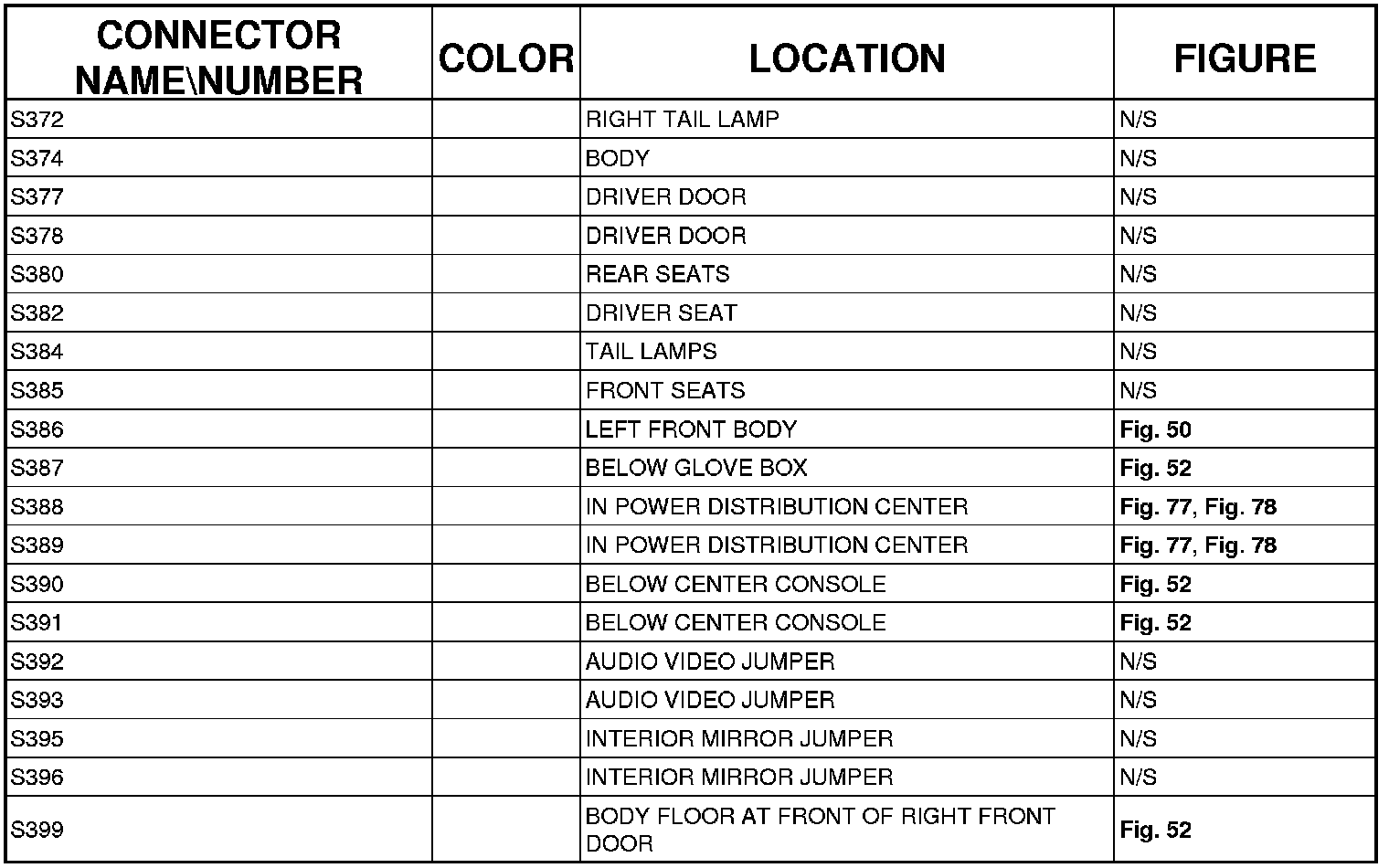

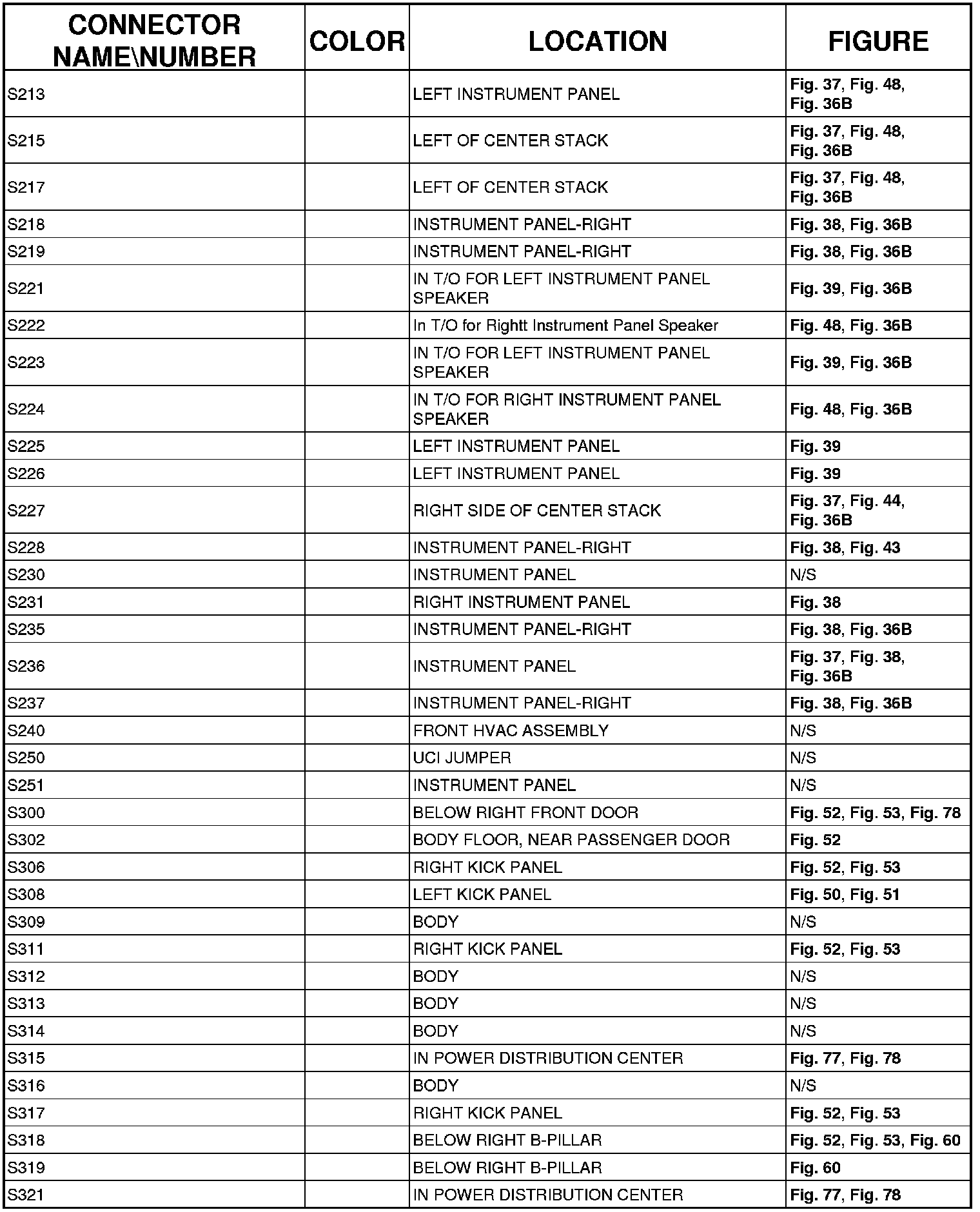

SPLICES
