Fuel Pump Module C1 (AWD) (Body) 5 Way

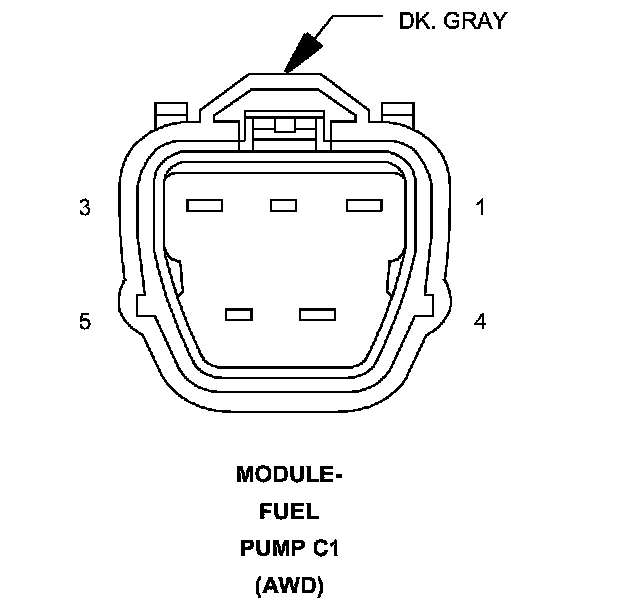

Connector C1 (AWD) - (BODY) 5 WAY

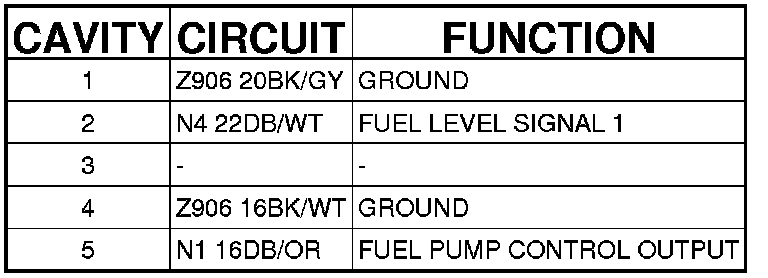

MODULE-FUEL PUMP (AWD) - (BODY) 5 WAY
