CVT Automatic Transaxle






SPECIFICATIONS

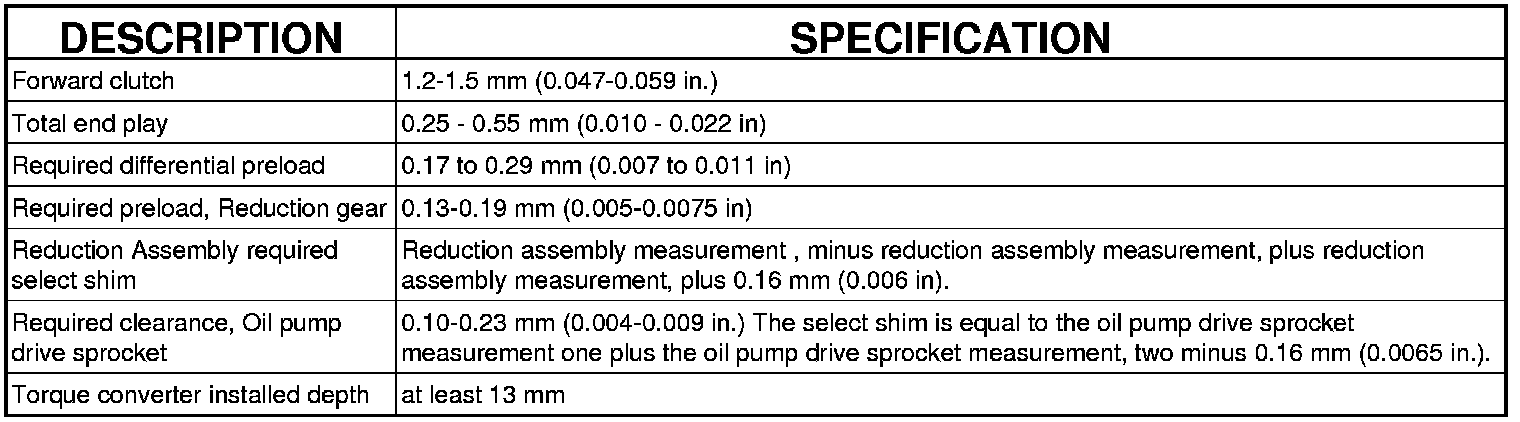

CLEARANCES






TORQUE





FLEX PLATE

Flex Plate to Crankshaft-Bolts 29 Nm + 51° (22 ft. lbs. + 51°)
