Sending Unit And Sensor, Fuel Level: Description: Description: AWD

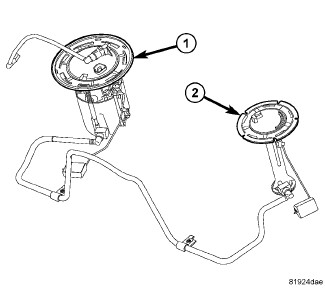

The all wheel drive (AWD) vehicles with the saddle fuel tank configurations have a main (1) and auxiliary (2) fuel level sending units.
The main fuel level sending unit located on the main fuel pump reservoir (1) is serviceable. See Fuel System/Fuel Delivery/SENDING UNIT and SENSOR, Fuel Level - Removal .
The auxiliary fuel level sending unit (2) is integrated with the auxiliary fuel pump module. The auxiliary fuel pump module and the fuel level sending unit is serviced as an assembly. See Fuel System/Fuel Delivery/MODULE, Fuel Pump - Removal .
