Common Rail Draining

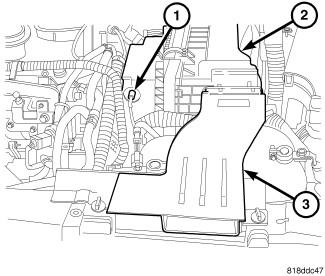

Fig 1: Air Cleaner

Courtesy of CHRYSLER LLC

Remove the vacuum line (1).
Remove the air cleaner inlet (3).

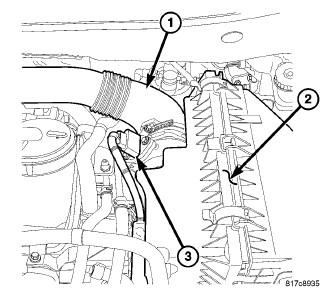

Fig 2: AIR FILTER HOUSING
Courtesy of CHRYSLER LLC
Disconnect MAF (3) electrical connector.
Remove clean air hose (1).
Remove air cleaner assembly (2).

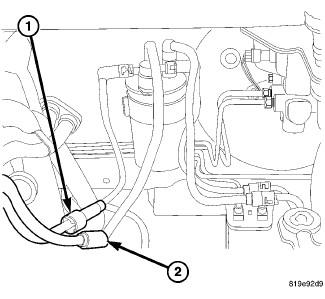

Fig 3: FUEL LINES
Courtesy of CHRYSLER LLC
Disconnect fuel feed (1) and return lines (2).

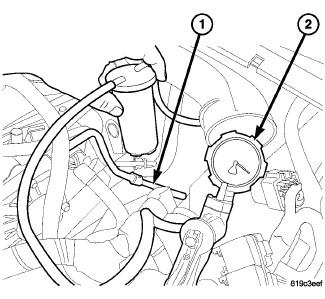

Fig 4: FUEL REMOVAL
Courtesy of CHRYSLER LLC
Connect a vacuum pump (2) to the return fuel line (1).
Operate vacuum pump (2) until no more fuel comes out of the return line (1).
