Battery System: Battery: Installation: Installation

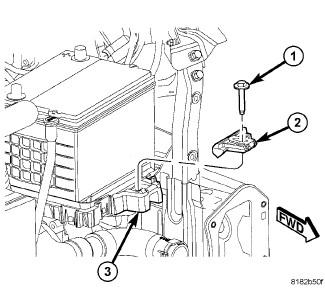

Fig 1: Identifying Battery Hold Down

Courtesy of CHRYSLER LLC

WARNING:

To protect the hands from battery acid, a suitable pair of heavy duty rubber gloves should be worn when removing or servicing a battery. Safety glasses also should be worn.

WARNING: Remove metallic jewelry to avoid injury by accidental arcing of battery current.

NOTE: When replacing battery, the thermal guard MUST be transferred to the new battery (if equipped).

Install battery in vehicle making sure that the thermal guard (if equipped) is present and battery is properly positioned on battery tray (3).
Install the battery hold down retainer (2) and bolt (1) making sure that it is properly positioned on battery. Tighten the hold down bolt to 7 N.m (62 in. lbs.)

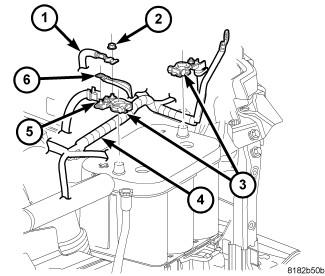

Fig 2: Negative Cable
Courtesy of CHRYSLER LLC

WARNING: The battery negative and positive cable polarity are different from the gasoline engine equipped vehicles to the diesel engine equipped vehicles. Please note the location of the positive and negative cables prior to service of the battery or related components.

NOTE: Diesel battery shown, gasoline battery similar.
Connect the battery positive cable then the negative cable (3).
Tighten the cable clamp nuts to 5 N.m (45 in.lbs.).

Fig 3: Air Cleaner Box & Snorkel
Courtesy of CHRYSLER LLC
Install the air cleaner fresh air duct (2) and secure in place by rotating the two retaining clips (3).
Verify proper vehicle operation.
