Oil Pressure Sensor - Installation

INSTALLATION






NOTE: Apply Mopar(R) Thread Sealant with PTFE to the sensor threads before installing into the engine block.

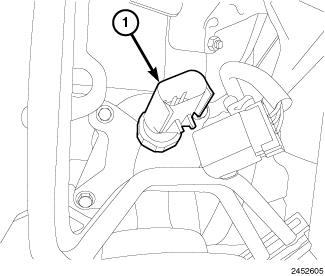

1. Install the oil pressure sensor (1).

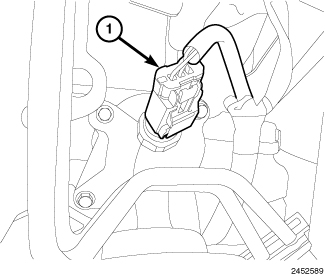

2. Connect the oil pressure sensor electrical connector (1).

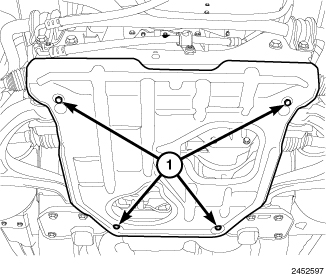

3. Position the lower splash shield and install the retaining bolts (1).
4. Lower the vehicle
5. Connect the negative battery cable.
