Front Control Module (FCM) - Electrical Diagnostics
>>
DTC Troubleshooting
>>
B1667-Reverse Lamp Control Circuit Low
>>
Circuit Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Schematic

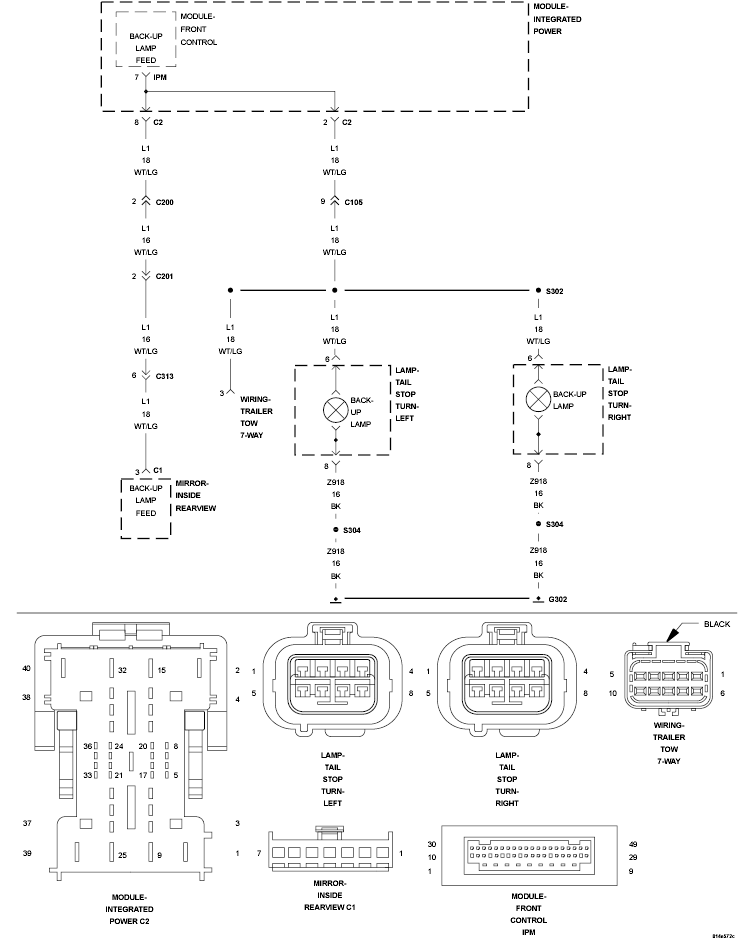

Fig 1: Back-Up Lamp Feed Circuit Schematic
