Commander Limited, 4WD
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Front Control Module (FCM) - Electrical Diagnostics
>>
DTC Troubleshooting
>>
B1668-Reverse Lamp Control Circuit High
>>
Circuit Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Schematic

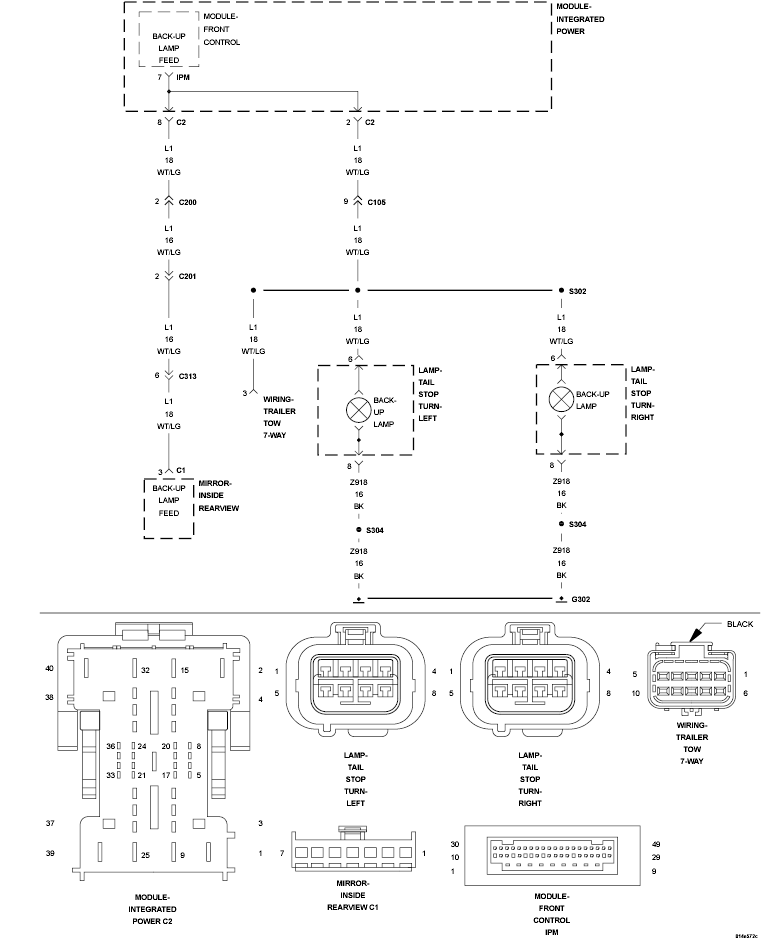

Fig 1: Back-Up Lamp Feed Circuit Schematic
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
