Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Integrated Power Module

G00418140

Courtesy of CHRYSLER LLC

Fig 2: Power Distribution Center

G00467439

Courtesy of CHRYSLER LLC

Fig 3: Junction Block

G00467440

Courtesy of CHRYSLER LLC

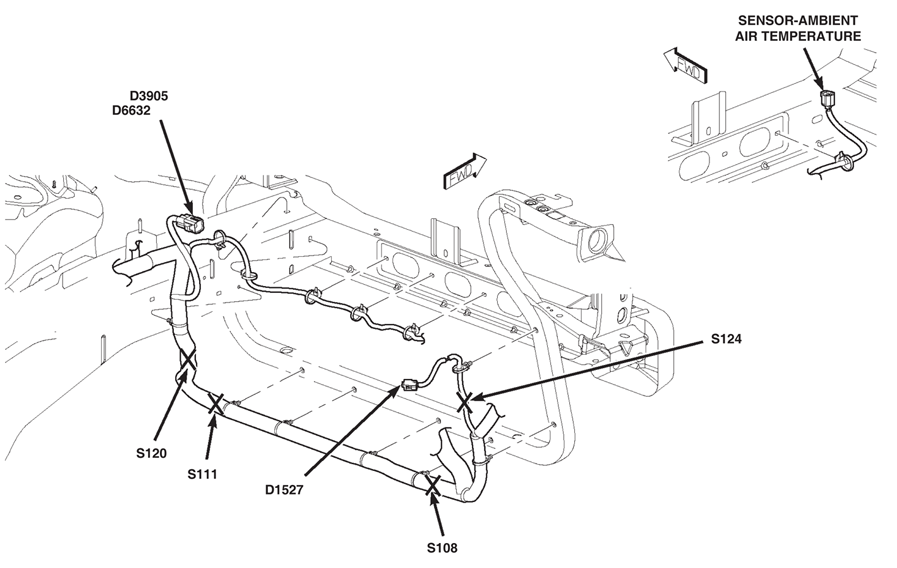

Fig 4: Front Of Engine Compartment

G00508816

Courtesy of CHRYSLER LLC

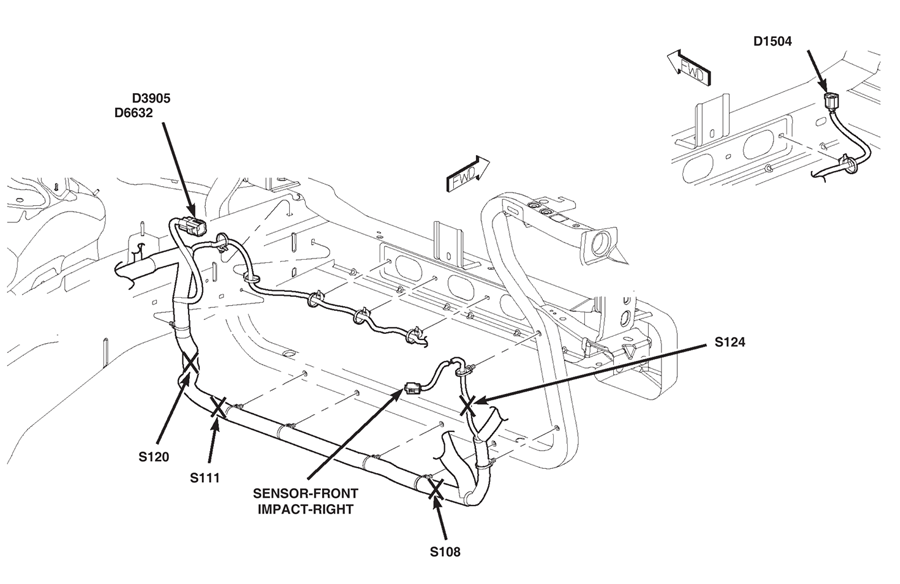

Fig 5: Front Of Engine Compartment

G00508817

Courtesy of CHRYSLER LLC

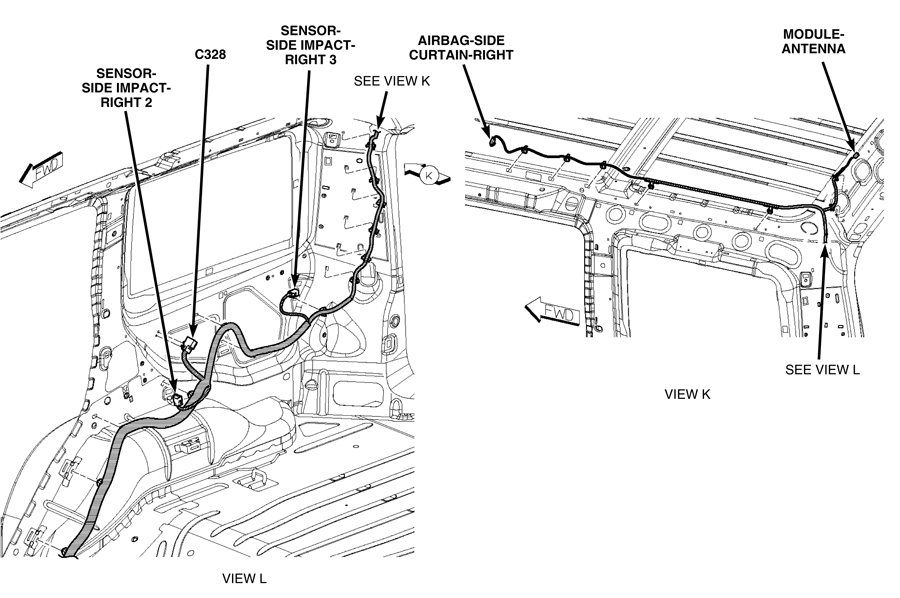

Fig 6: Right Rear Body

G00508818

Courtesy of CHRYSLER LLC

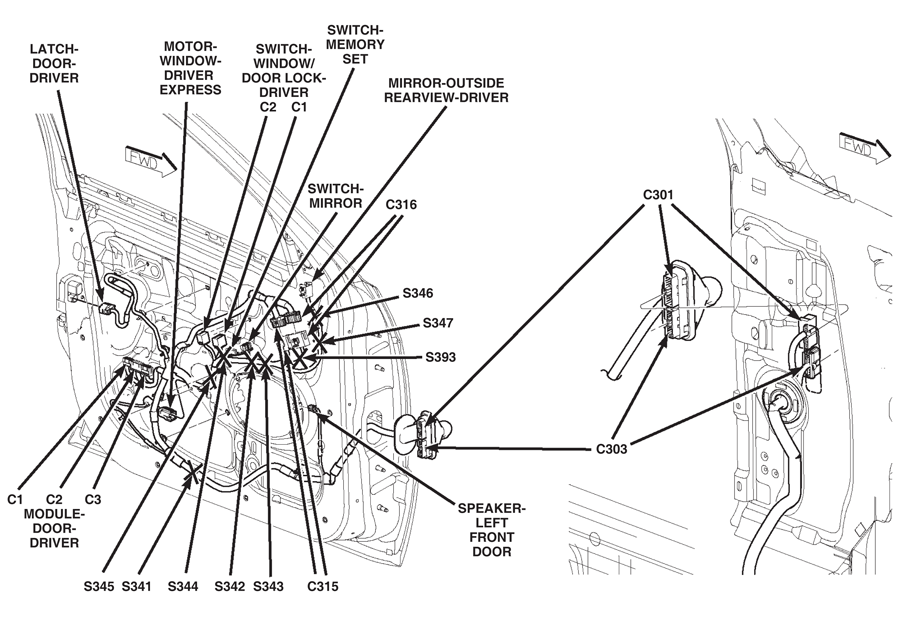

Fig 7: Driver Door

G00508820

Courtesy of CHRYSLER LLC

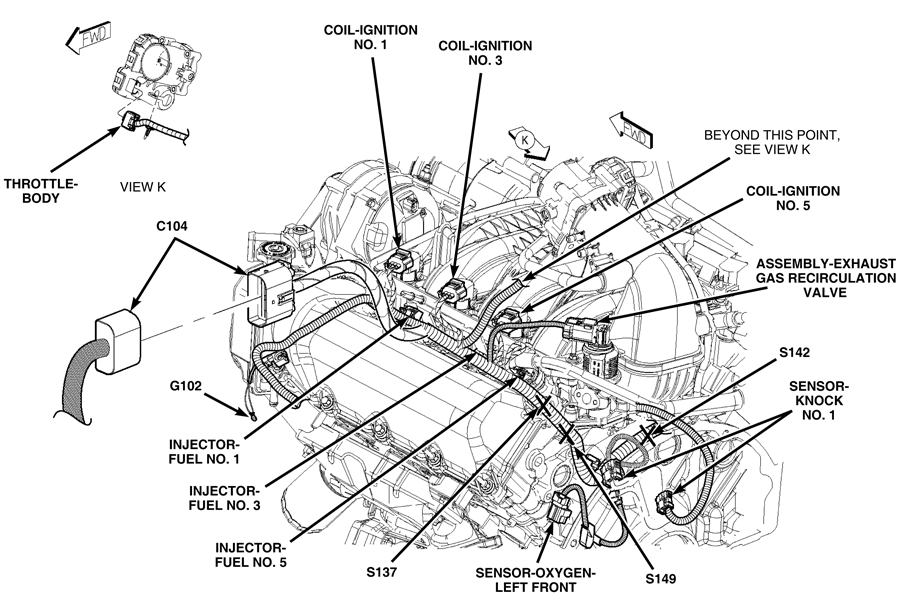

Fig 8: Left Side Of Engine

G00508821

Courtesy of CHRYSLER LLC

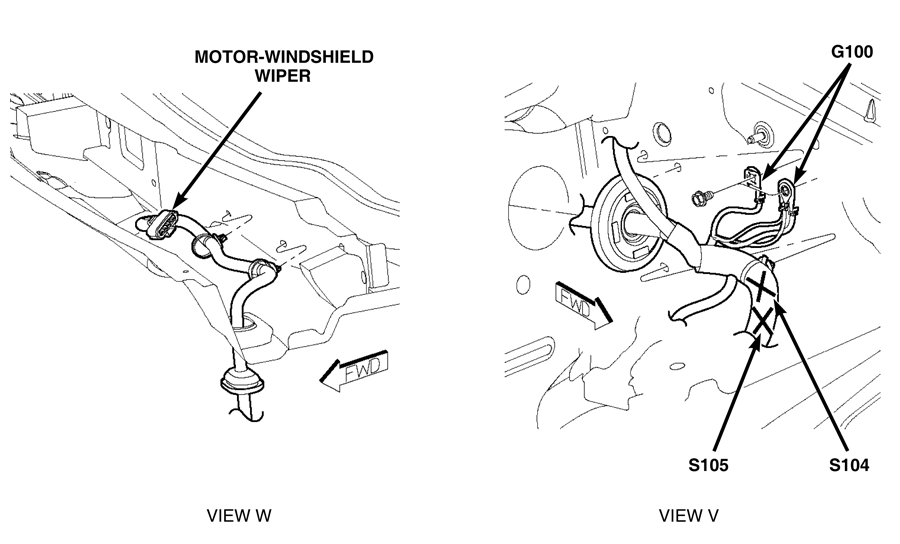

Fig 9: Left Rear Corner Of Engine Compartment

G00508822

Courtesy of CHRYSLER LLC

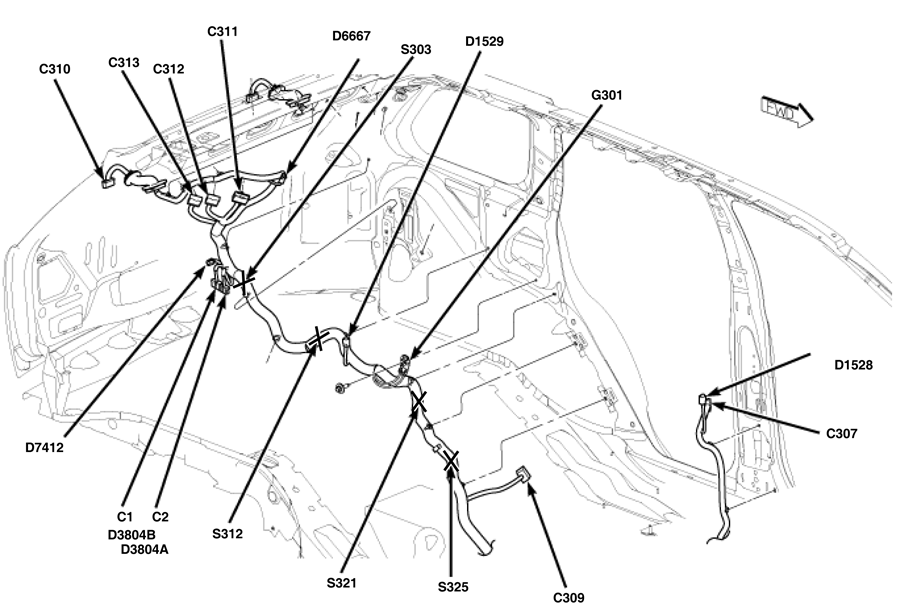

Fig 10: Left Rear Body

G00508823

Courtesy of CHRYSLER LLC

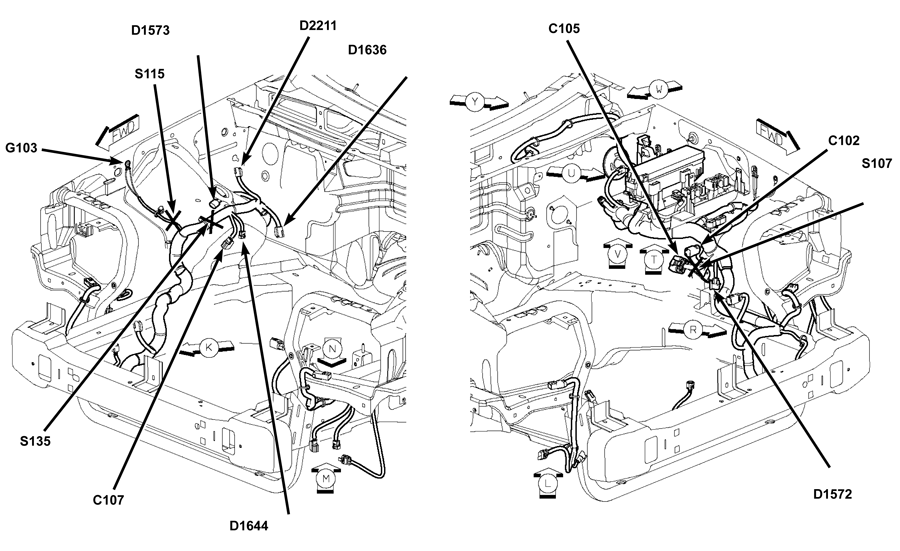

Fig 11: Left And Right Side Of Engine Compartment

G00508824

Courtesy of CHRYSLER LLC

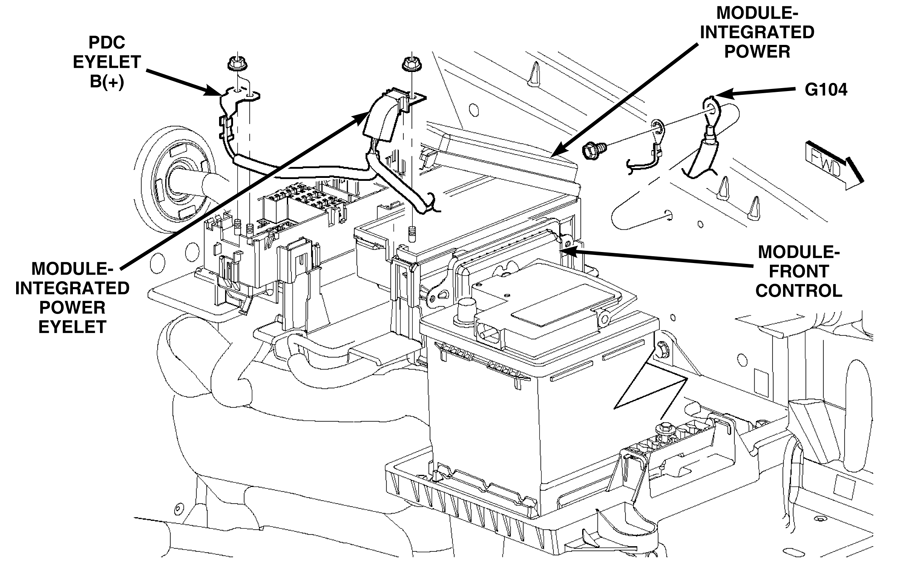

Fig 12: Left Side Of Engine Compartment

G00508825

Courtesy of CHRYSLER LLC

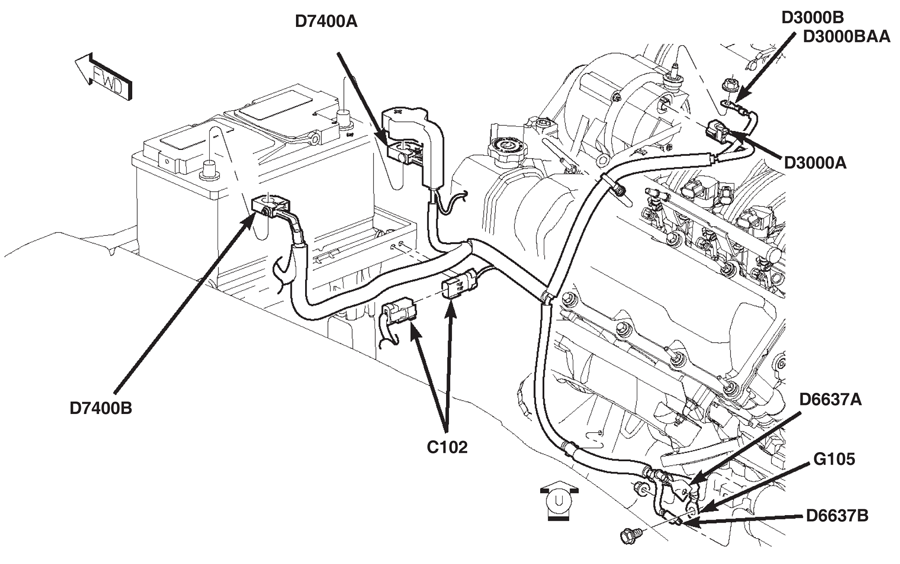

Fig 13: Left Side Of Engine Compartment

G00508826

Courtesy of CHRYSLER LLC

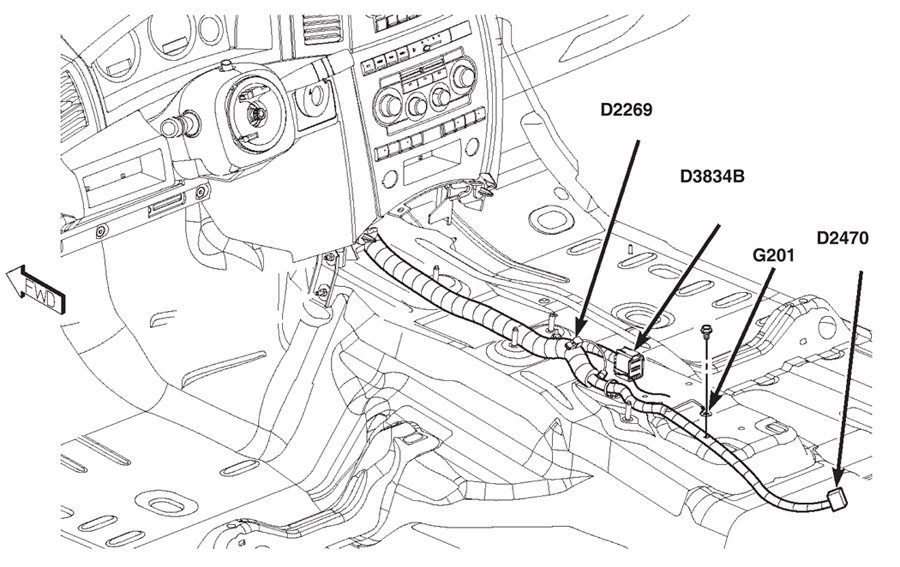

Fig 14: Below Center Console

G00508827

Courtesy of CHRYSLER LLC

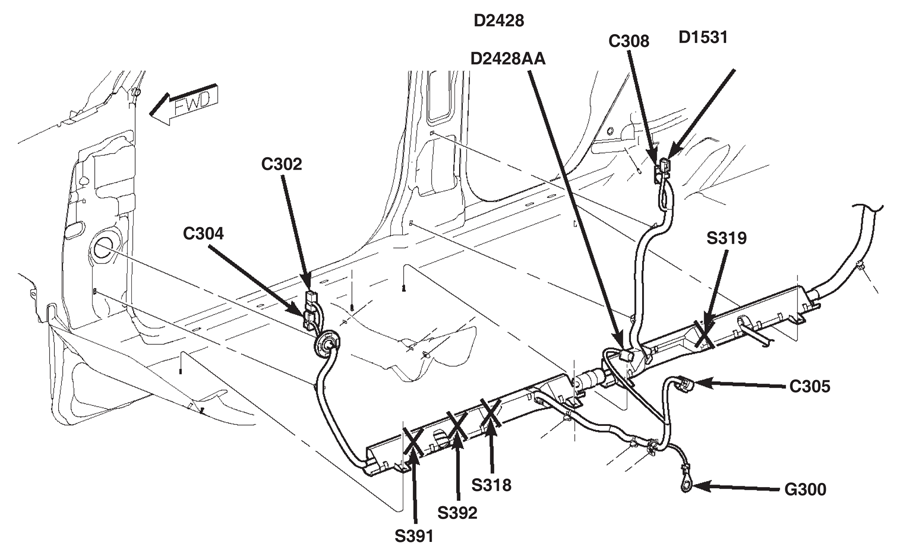

Fig 15: Right Side Body

G00508828

Courtesy of CHRYSLER LLC

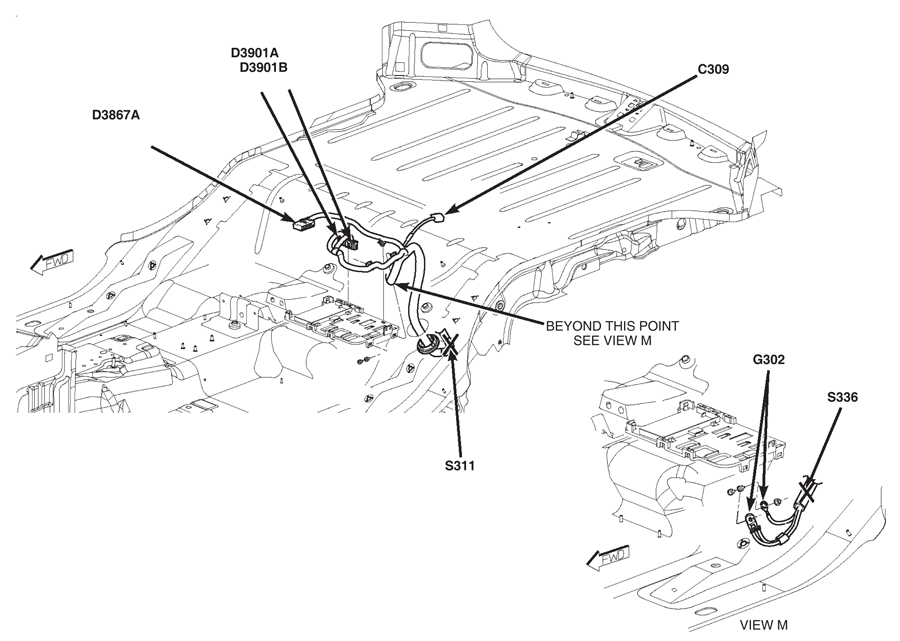

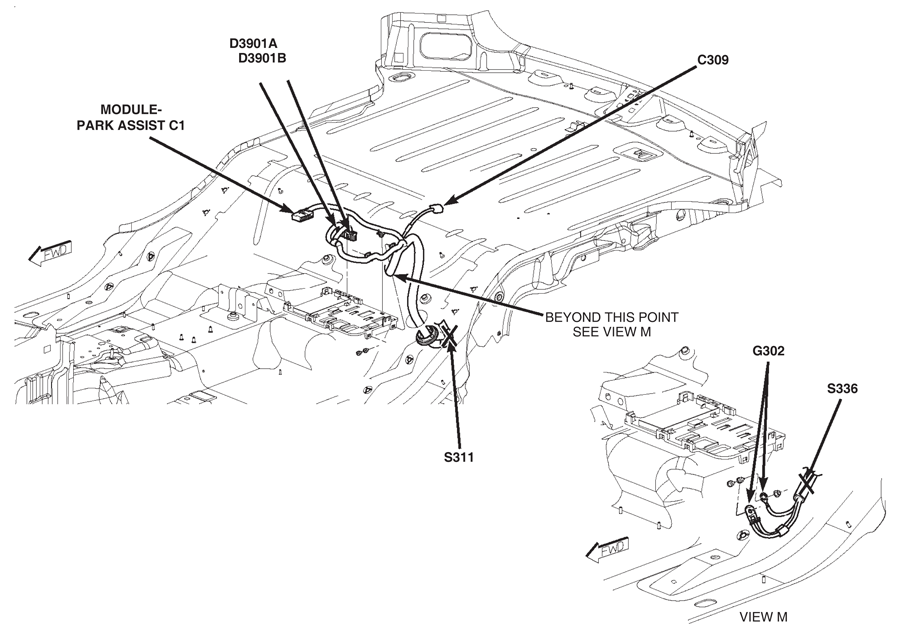

Fig 16: Center Underbody

G00508829

Courtesy of CHRYSLER LLC

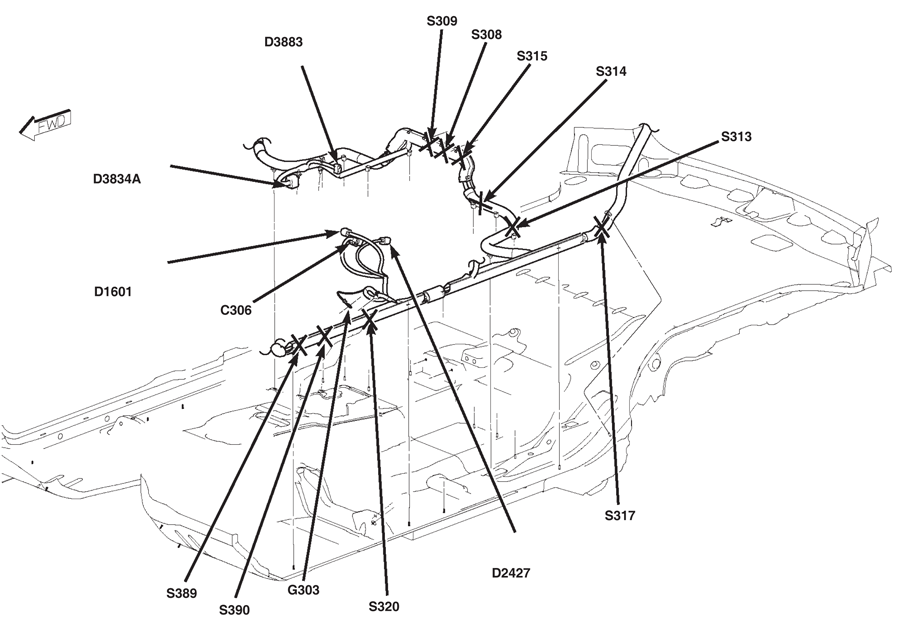

Fig 17: Left Side Body

G00508830

Courtesy of CHRYSLER LLC

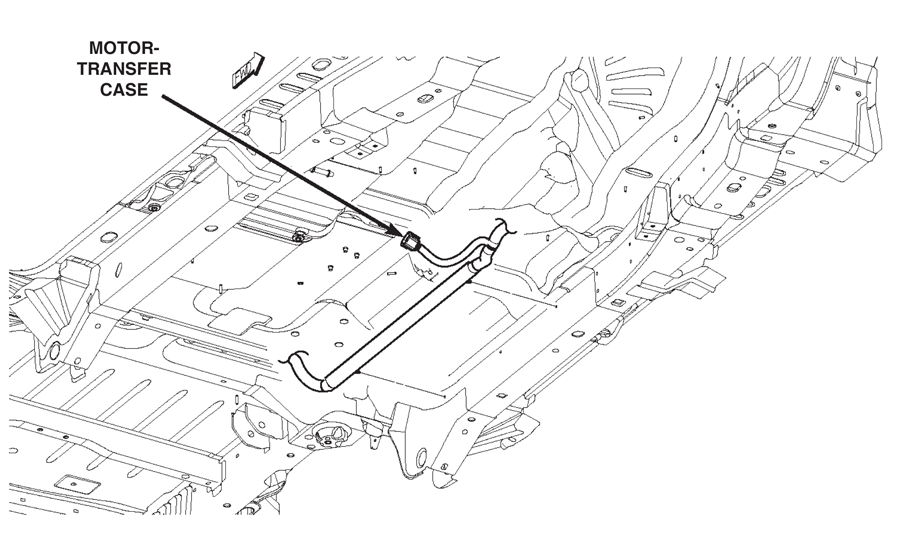

Fig 18: Center Underbody

G00508832

Courtesy of CHRYSLER LLC

Fig 19: Passenger Seat Side

G00508833

Courtesy of CHRYSLER LLC

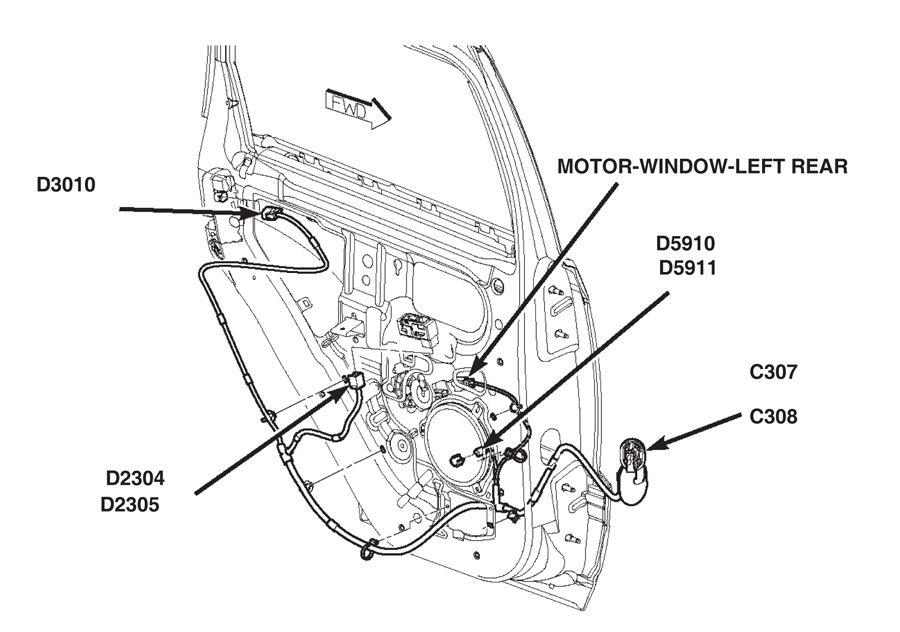

Fig 20: Left Rear Door Shown; Right Rear Is Similar

G00508834

Courtesy of CHRYSLER LLC

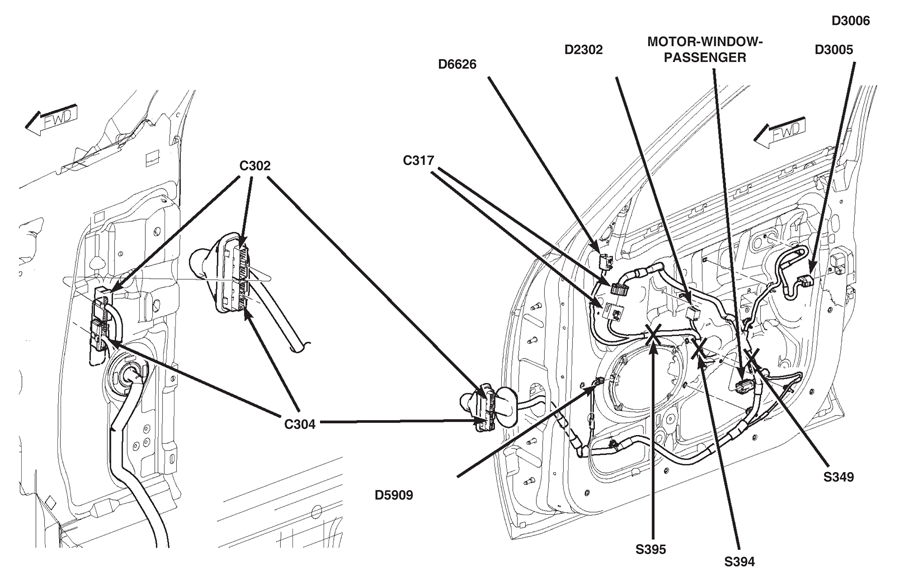

Fig 21: Right Door

G00508835

Courtesy of CHRYSLER LLC

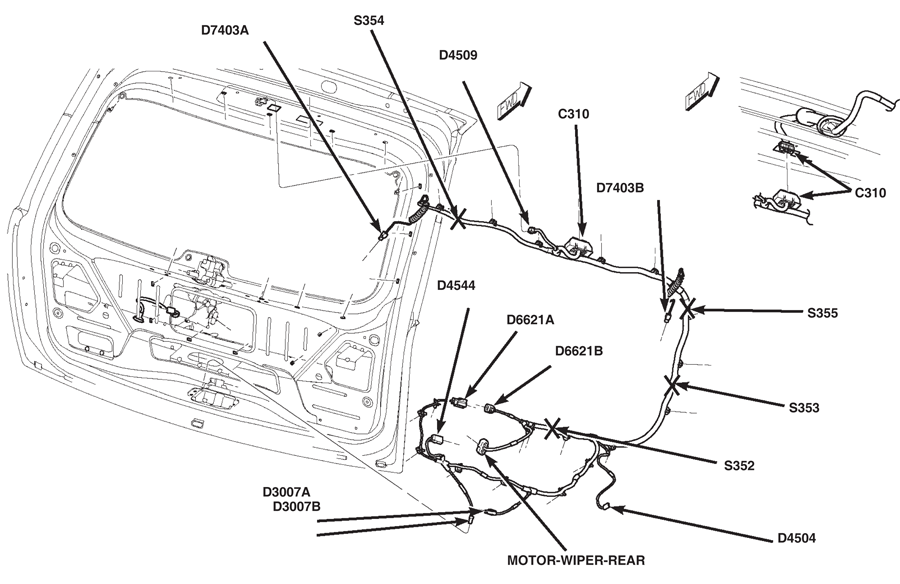

Fig 22: Liftgate

G00508836

Courtesy of CHRYSLER LLC

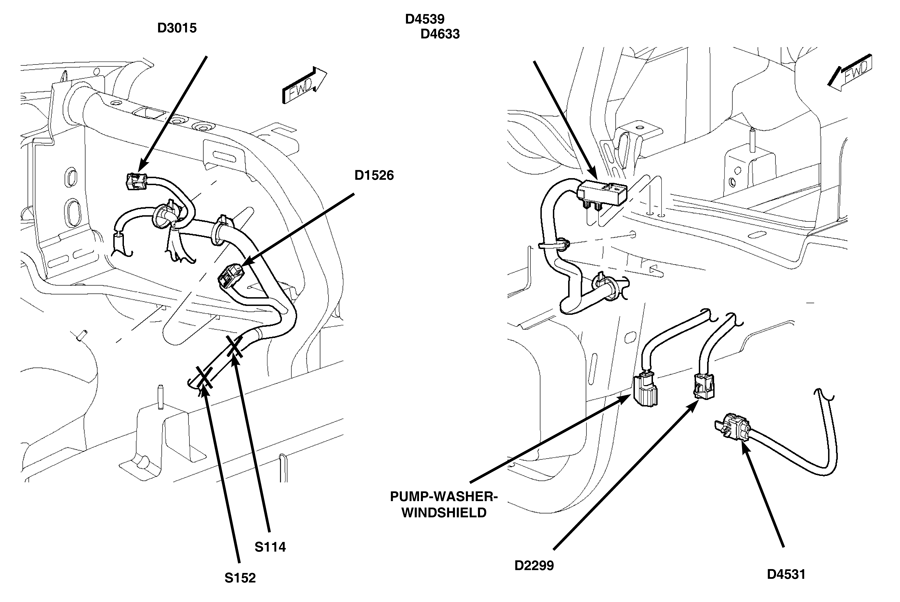

Fig 23: Left Front Of Engine Compartment

G00508837

Courtesy of CHRYSLER LLC

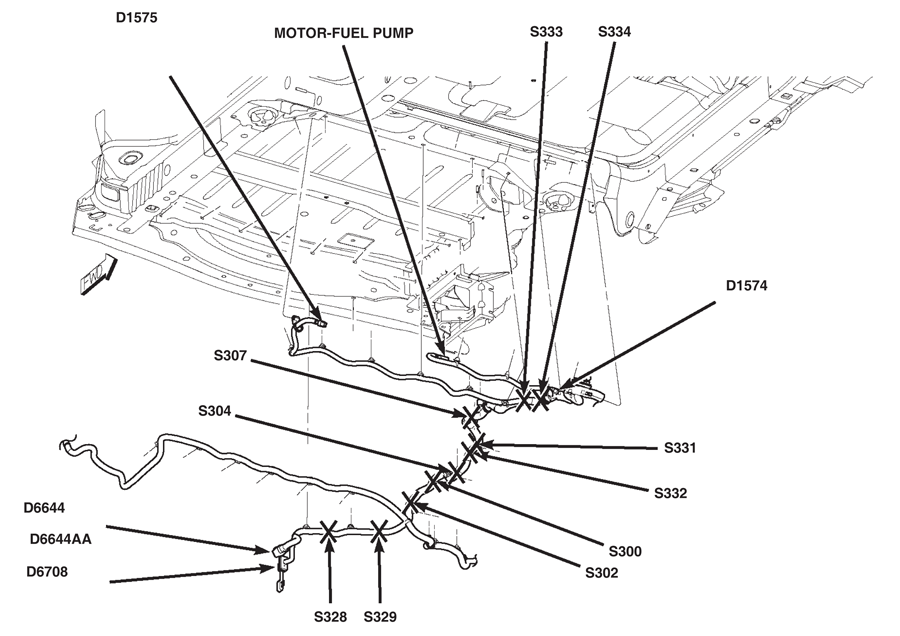

Fig 24: Rear Underbody

G00508838

Courtesy of CHRYSLER LLC

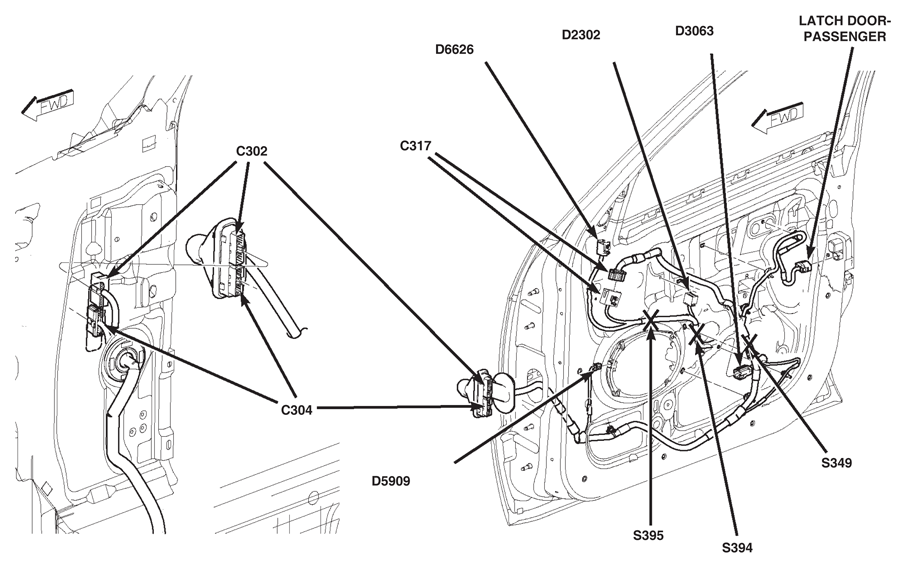

Fig 25: Right Passenger Door

G00508839

Courtesy of CHRYSLER LLC

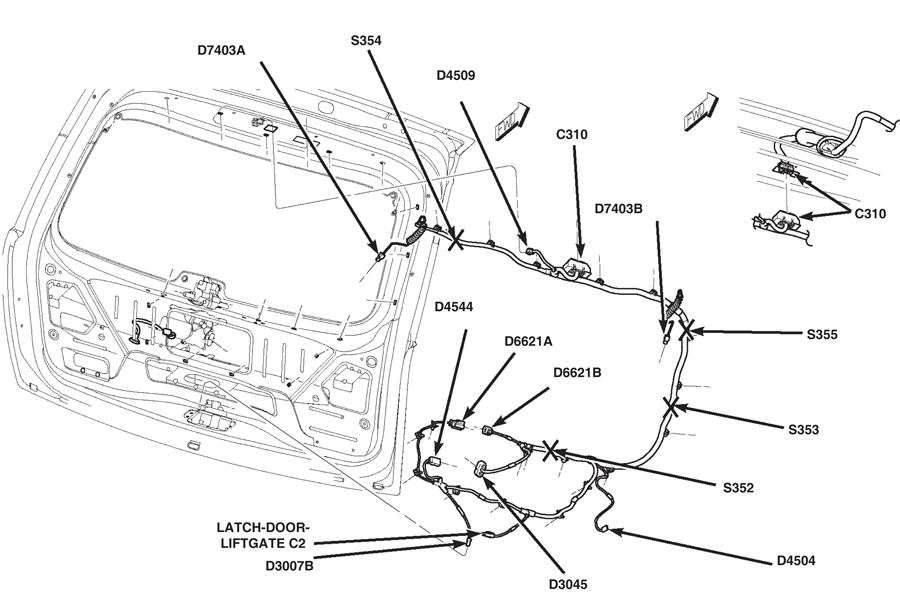

Fig 26: Liftgate

G00508840

Courtesy of CHRYSLER LLC

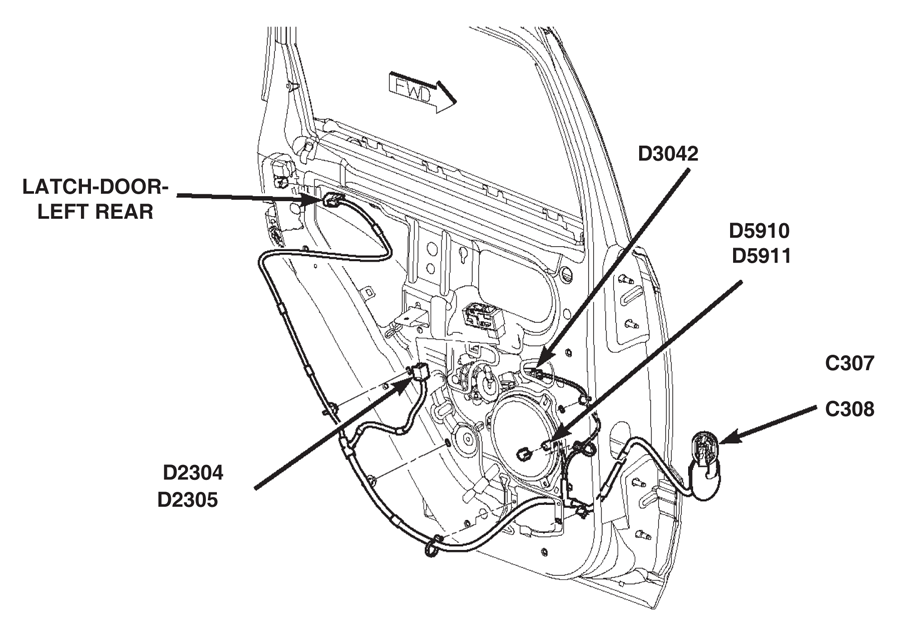

Fig 27: Left Rear Door Shown; Right Rear Is Similar

G00508841

Courtesy of CHRYSLER LLC

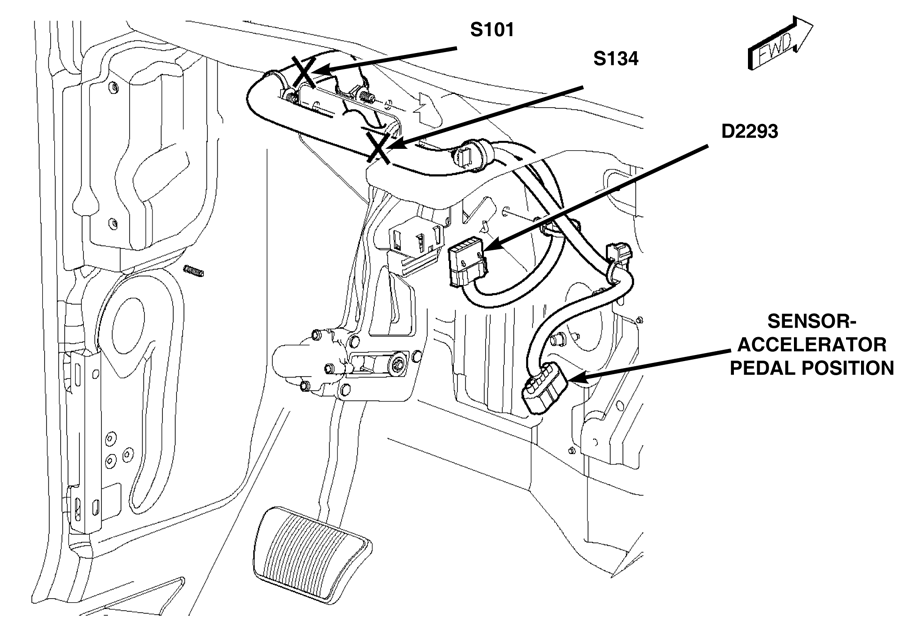

Fig 28: Lower Left Of Dash

G00508842

Courtesy of CHRYSLER LLC

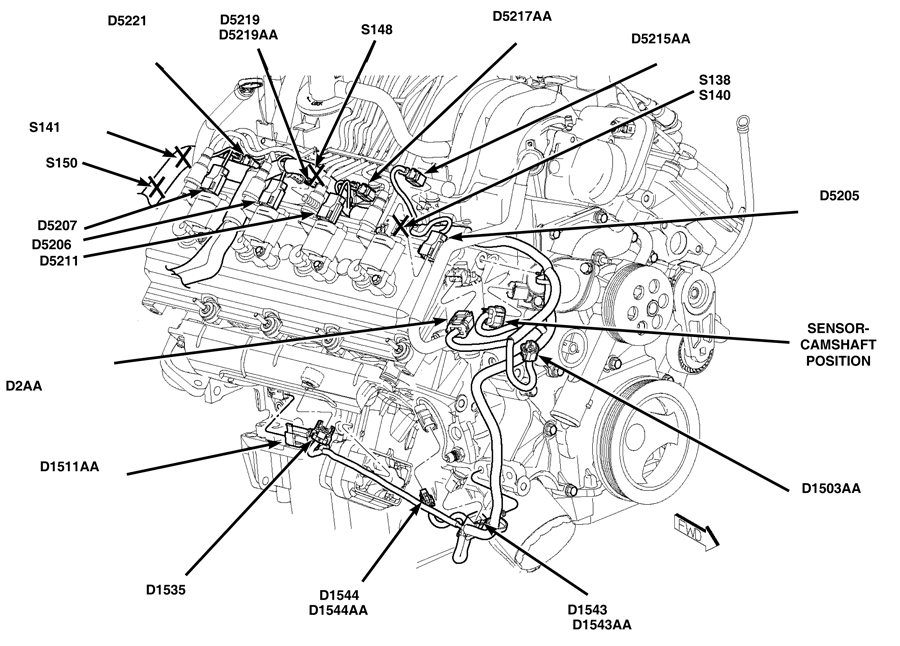

Fig 29: Right Side Of Engine

G00508843

Courtesy of CHRYSLER LLC

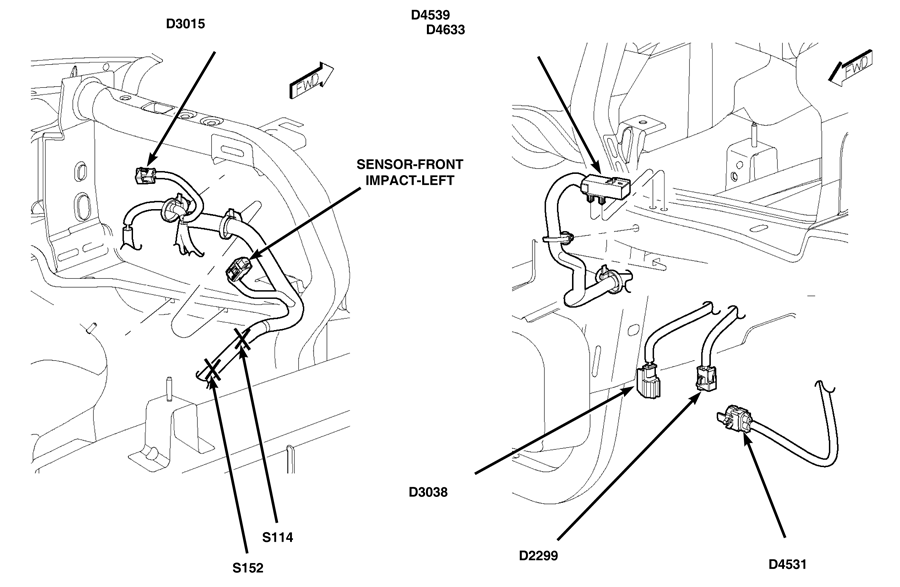

Fig 30: Left Front Of Engine Compartment

G00508844

Courtesy of CHRYSLER LLC

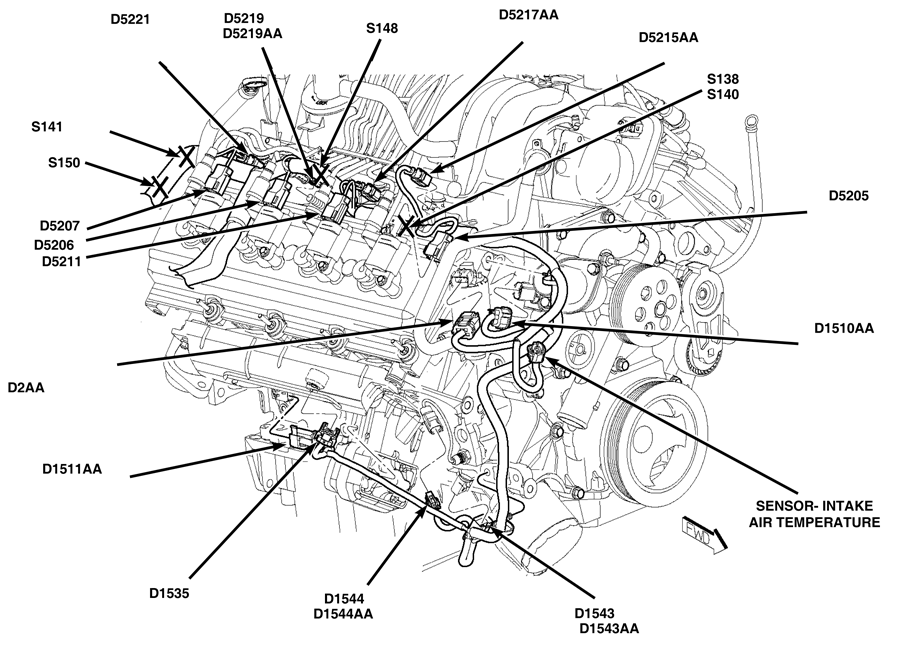

Fig 31: Right Side Of Engine

G00508845

Courtesy of CHRYSLER LLC

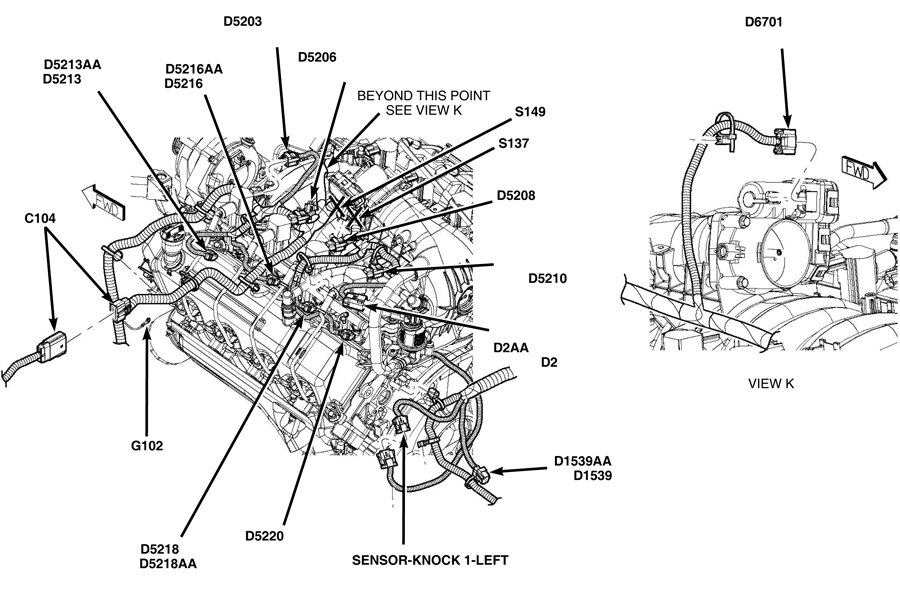

Fig 32: Left Side Of Engine

G00508846

Courtesy of CHRYSLER LLC

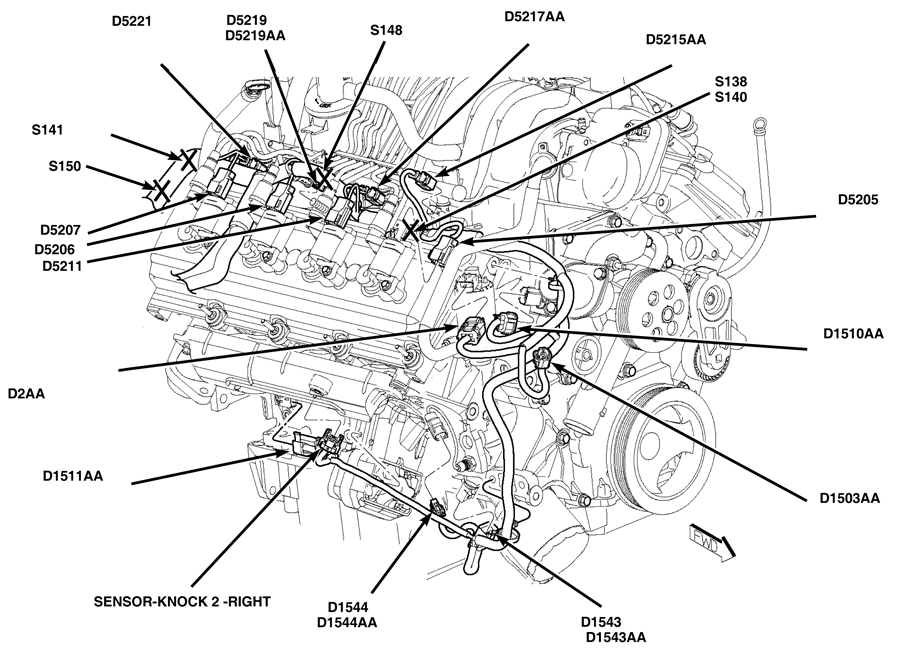

Fig 33: Right Side Of Engine

G00508847

Courtesy of CHRYSLER LLC

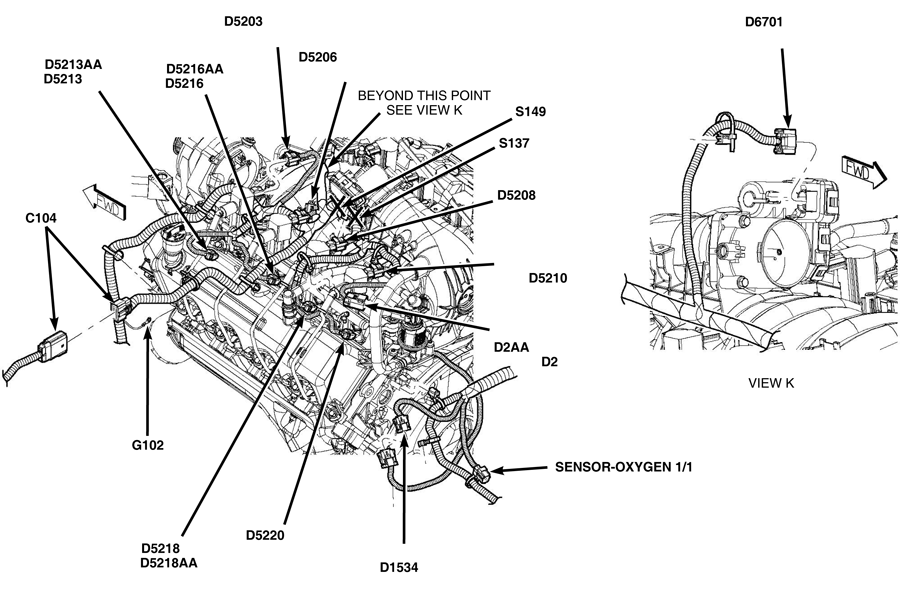

Fig 34: Left Side Of Engine

G00508848

Courtesy of CHRYSLER LLC

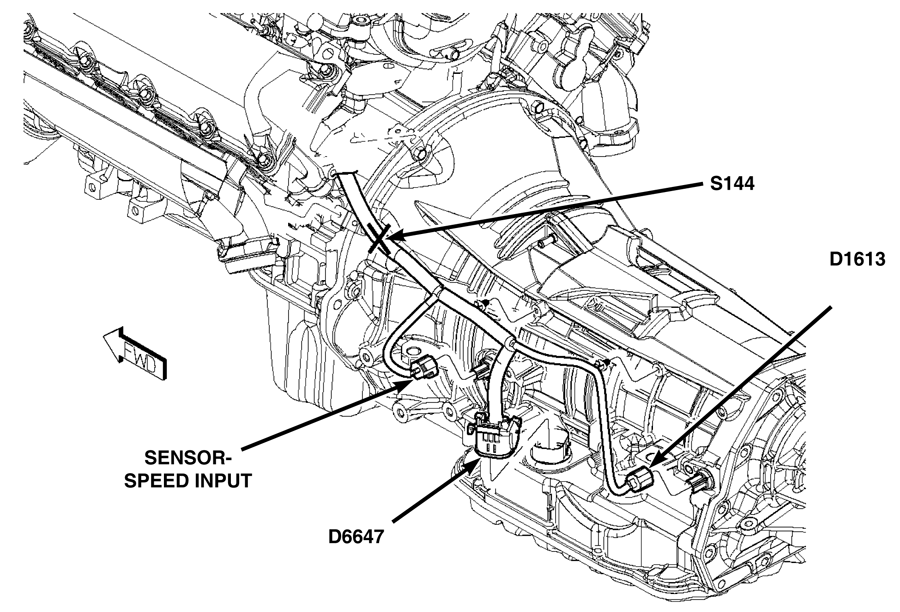

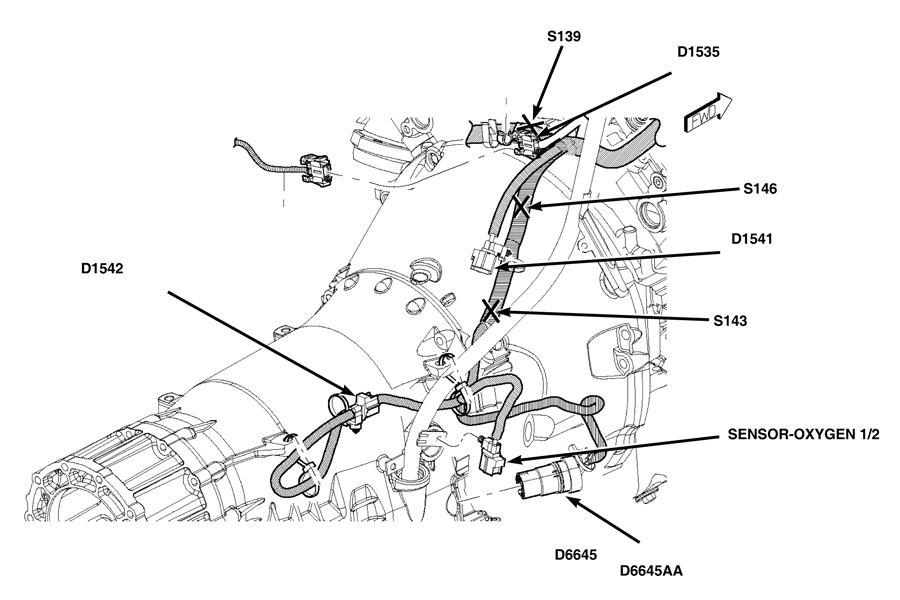

Fig 35: Transmission

G00508849

Courtesy of CHRYSLER LLC

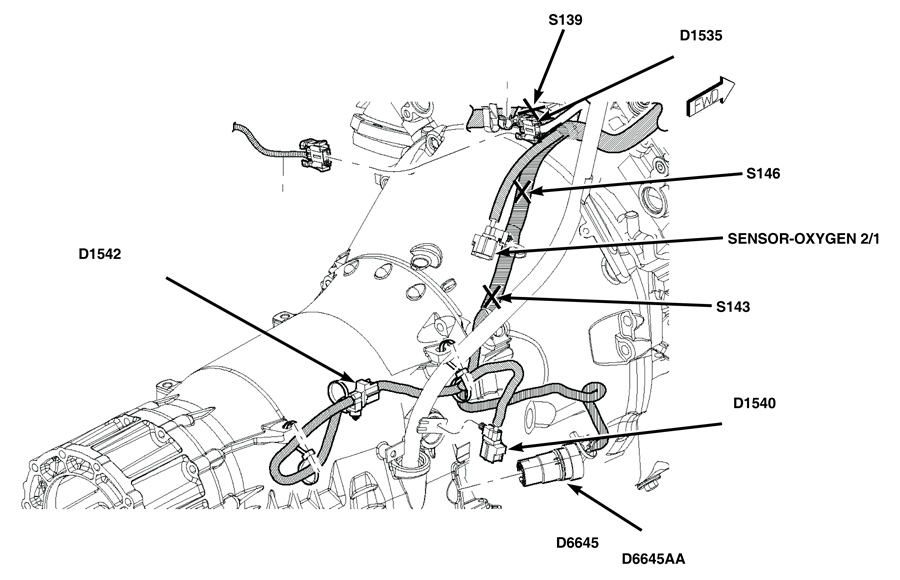

Fig 36: Transmission

G00508850

Courtesy of CHRYSLER LLC

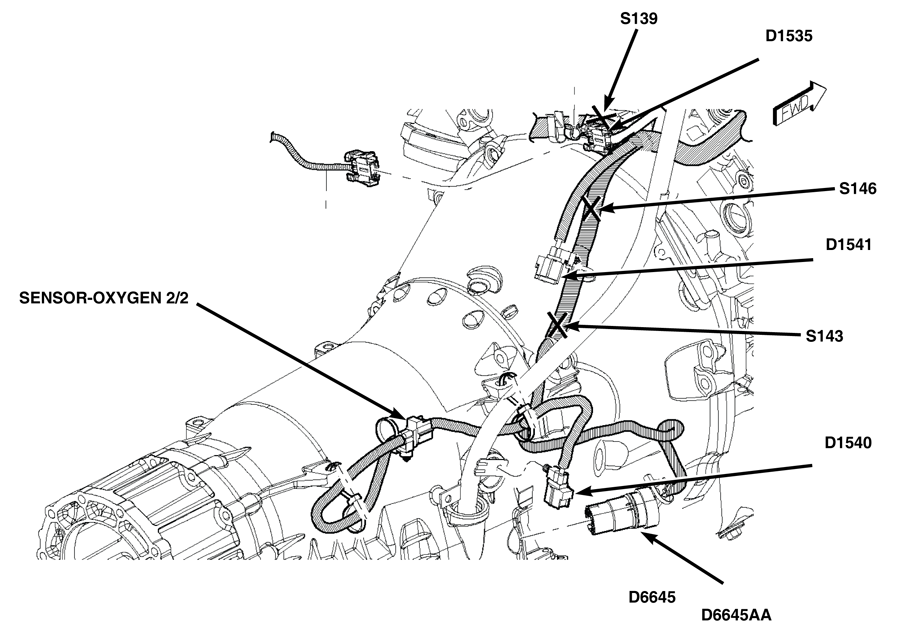

Fig 37: Transmission

G00508851

Courtesy of CHRYSLER LLC

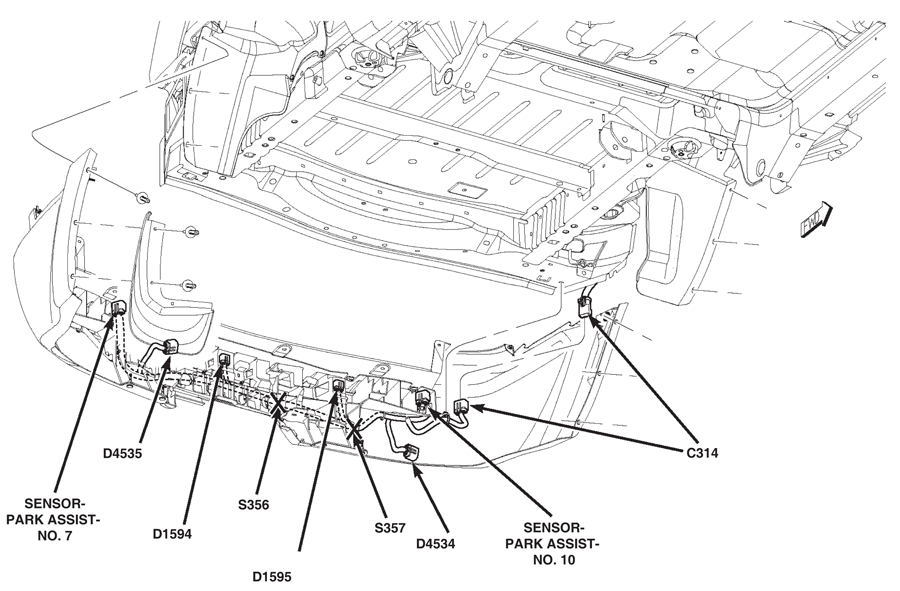

Fig 38: Rear Bumper

G00508852

Courtesy of CHRYSLER LLC

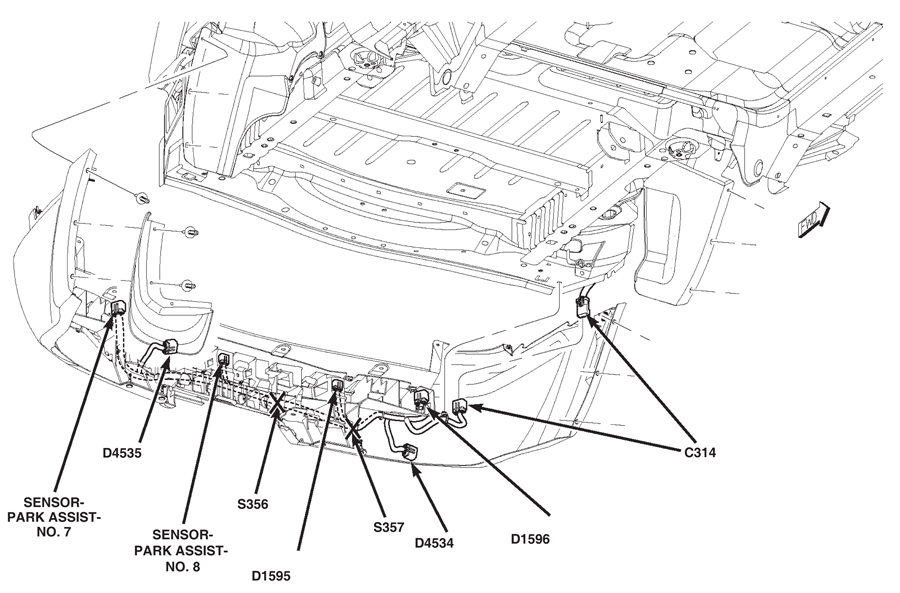

Fig 39: Rear Bumper

G00508853

Courtesy of CHRYSLER LLC

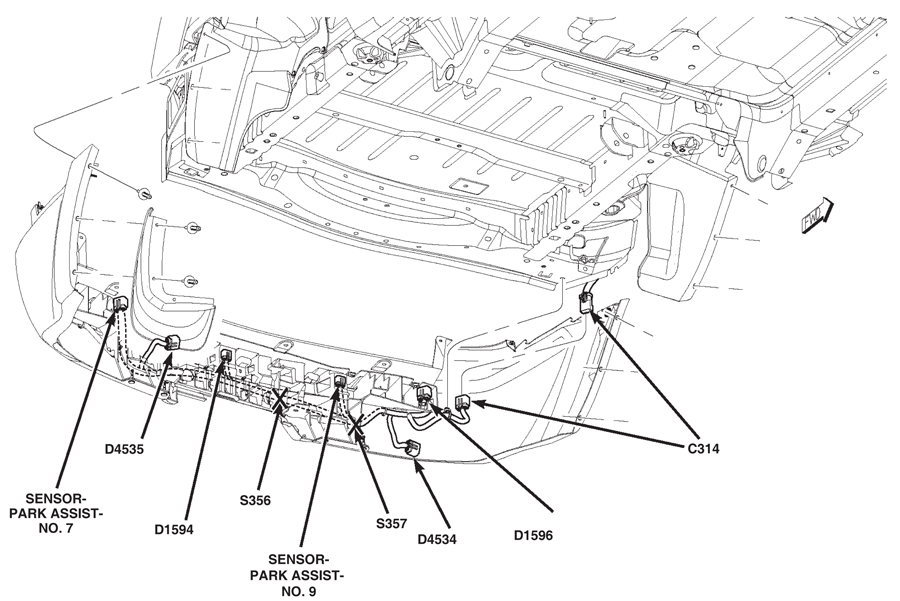

Fig 40: Rear Bumper

G00508854

Courtesy of CHRYSLER LLC

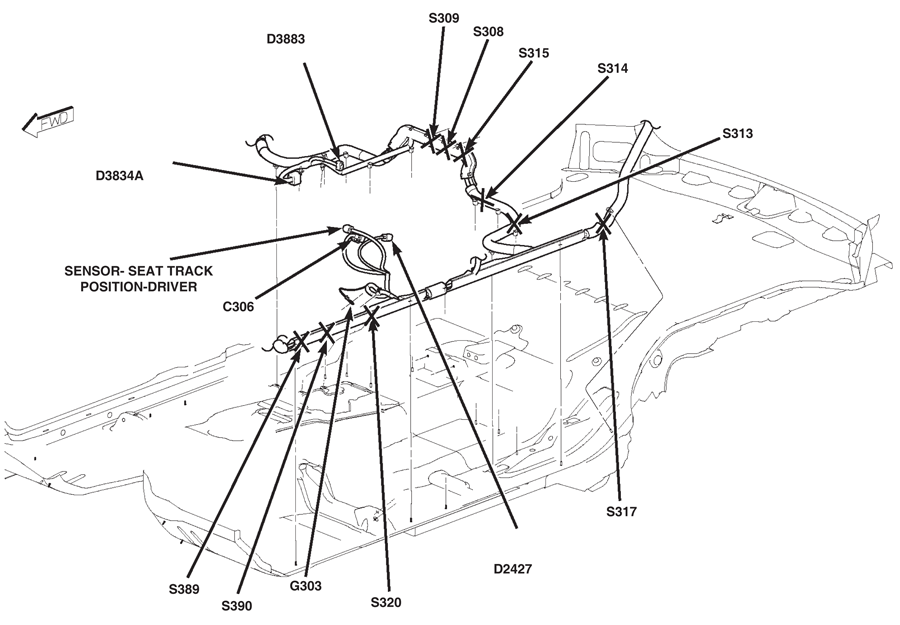

Fig 41: Left Side Of Body

G00508855

Courtesy of CHRYSLER LLC

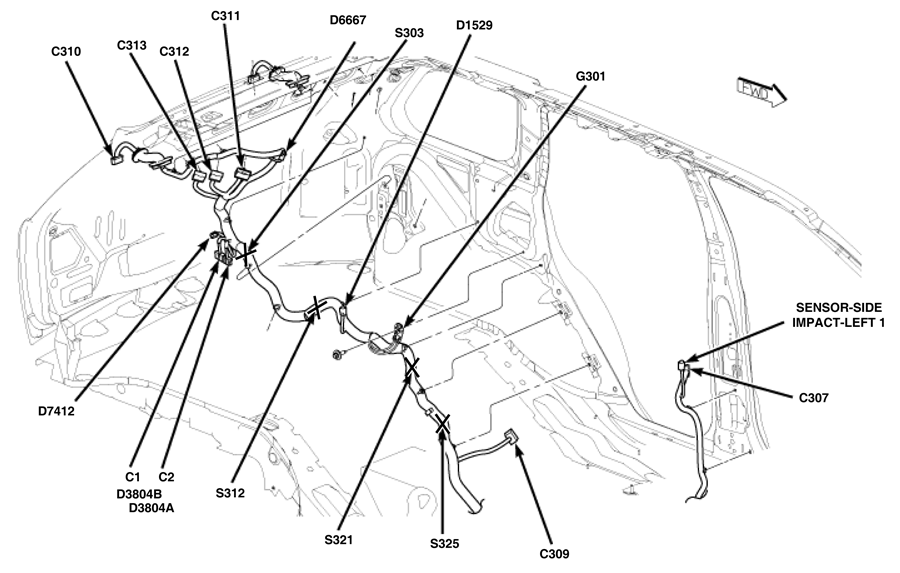

Fig 42: Left Rear Body

G00508856

Courtesy of CHRYSLER LLC

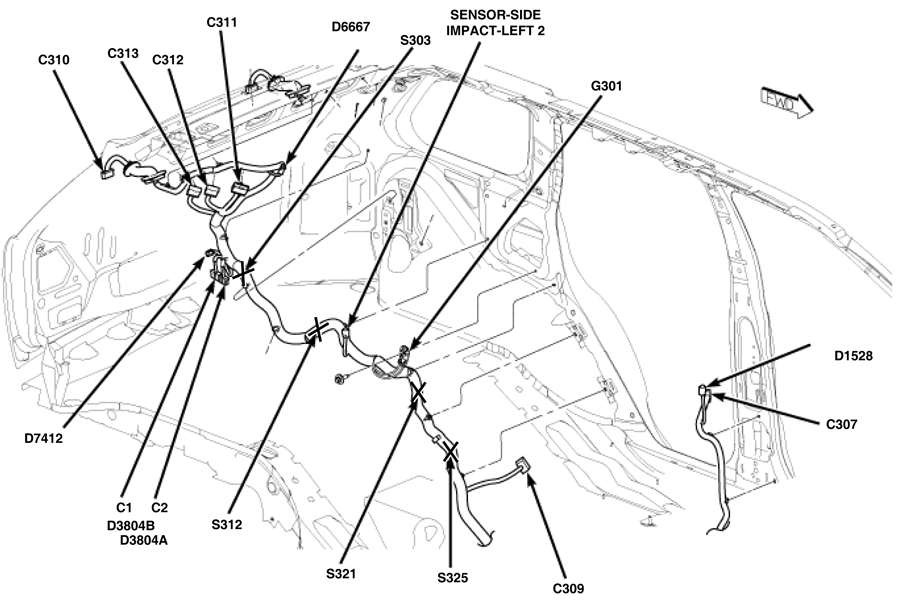

Fig 43: Left Rear Body

G00508857

Courtesy of CHRYSLER LLC

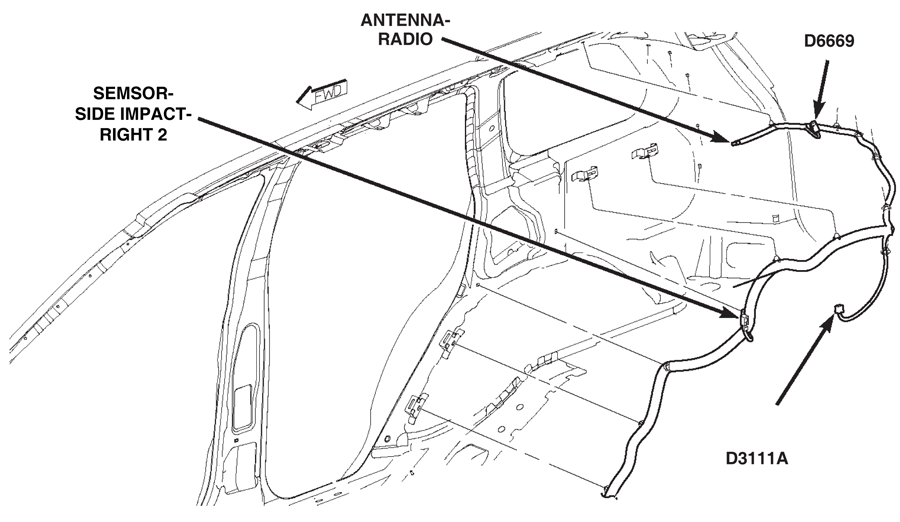

Fig 44: Right Rear Body

G00508858

Courtesy of CHRYSLER LLC

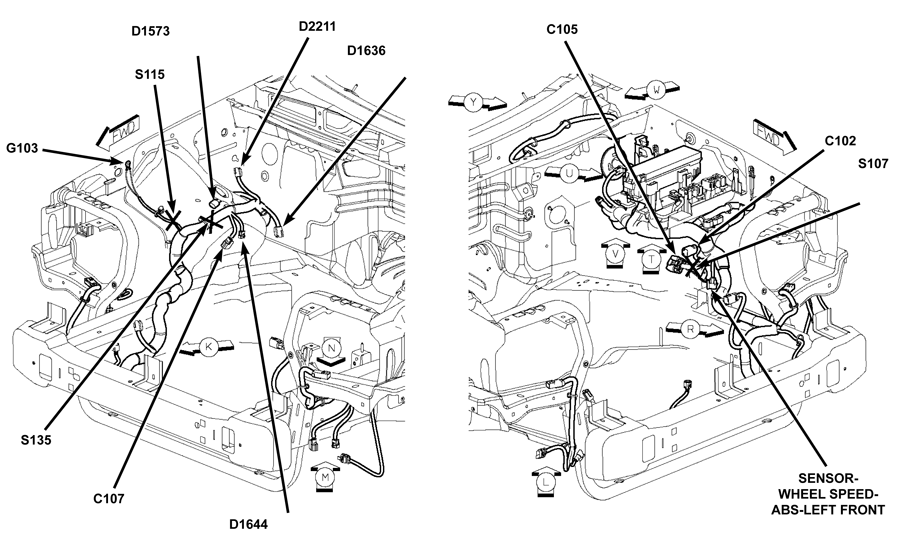

Fig 45: Left And Right Side Of Engine Compartment

G00508859

Courtesy of CHRYSLER LLC

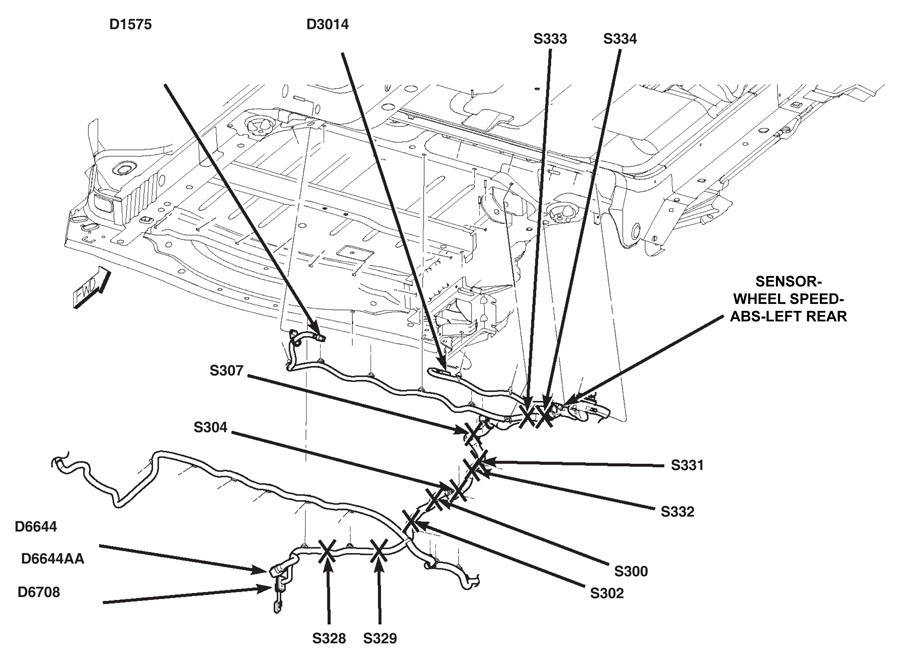

Fig 46: Rear Underbody

G00508860

Courtesy of CHRYSLER LLC

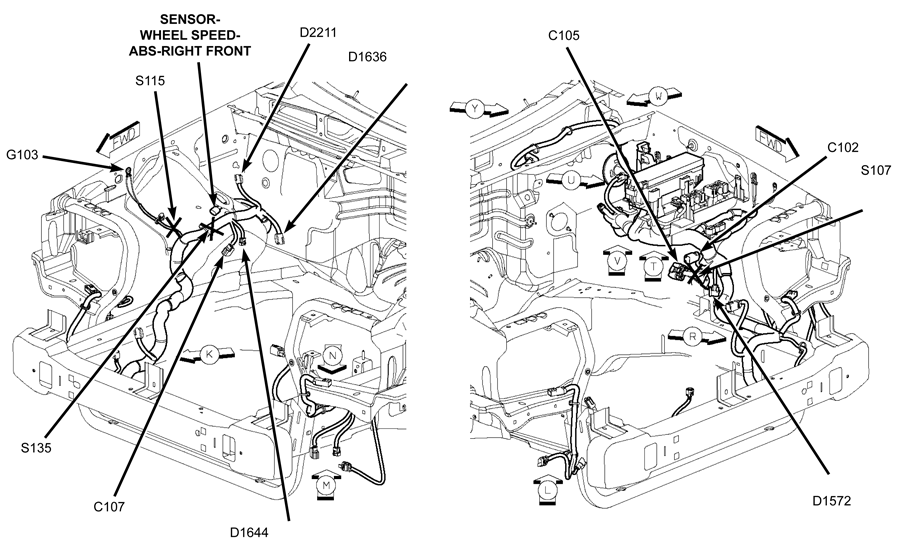

Fig 47: Left And Right Side Of Engine Compartment

G00508861

Courtesy of CHRYSLER LLC

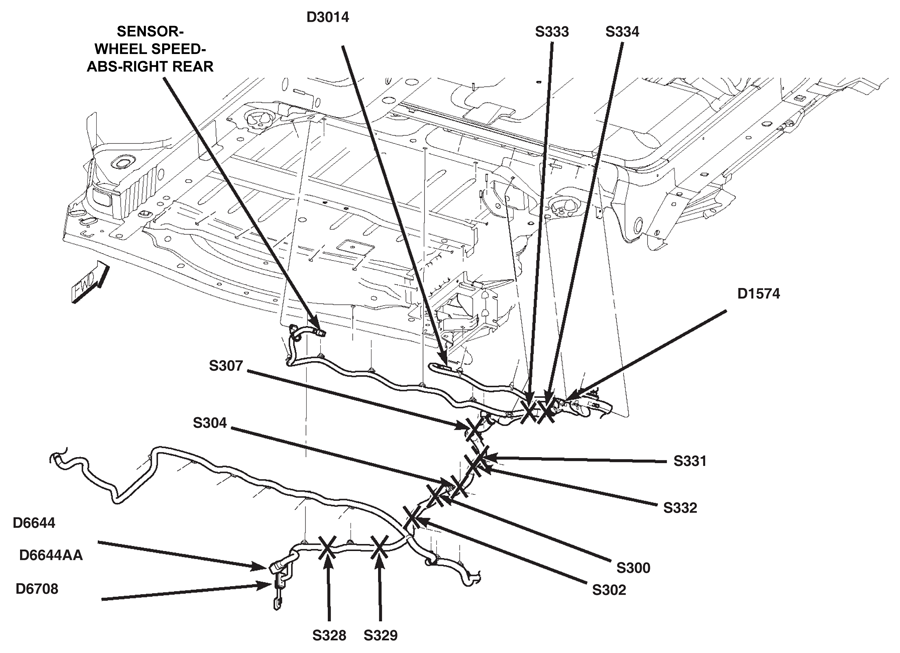

Fig 48: Rear Underbody

G00508862

Courtesy of CHRYSLER LLC

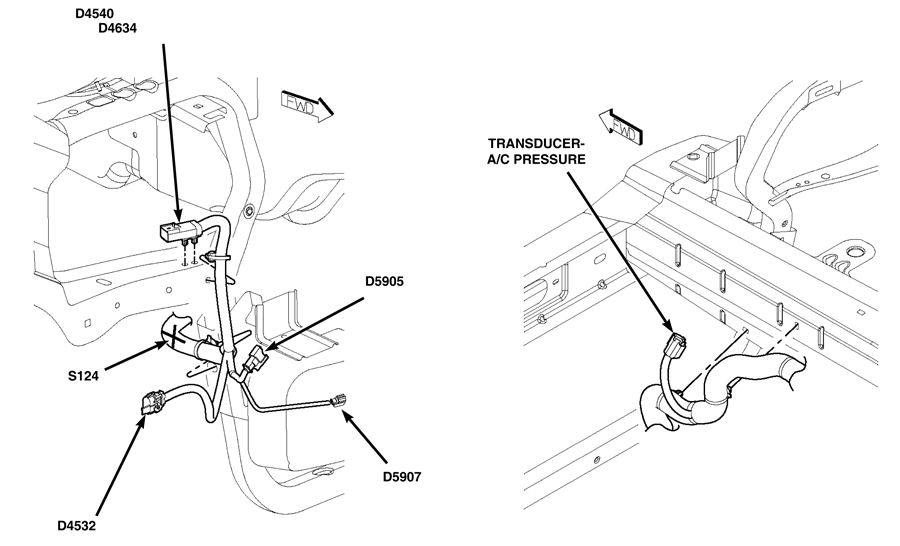

Fig 49: Right Front Of Engine Compartment

G00508863

Courtesy of CHRYSLER LLC

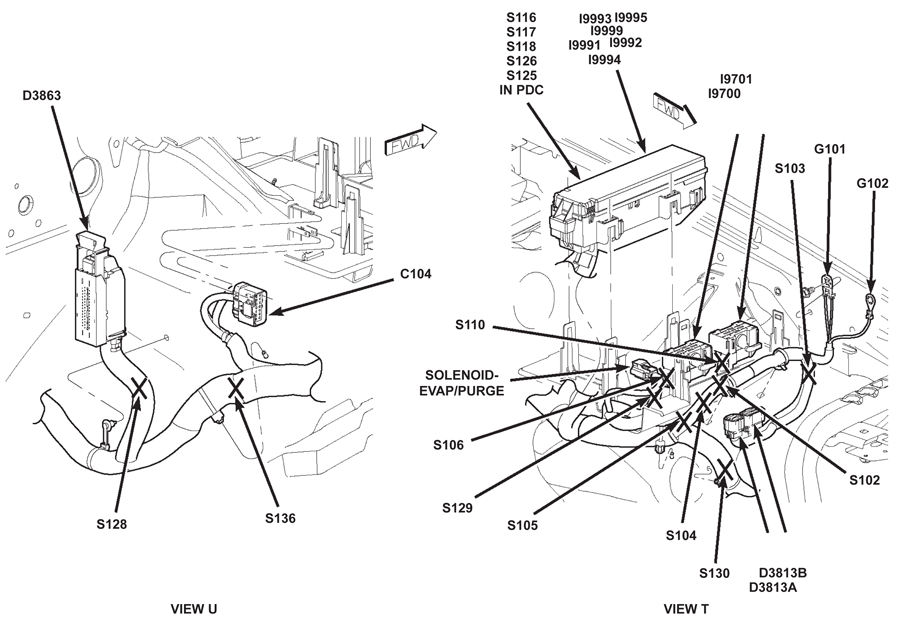

Fig 50: Left Side Of Engine Compartment

G00508864

Courtesy of CHRYSLER LLC

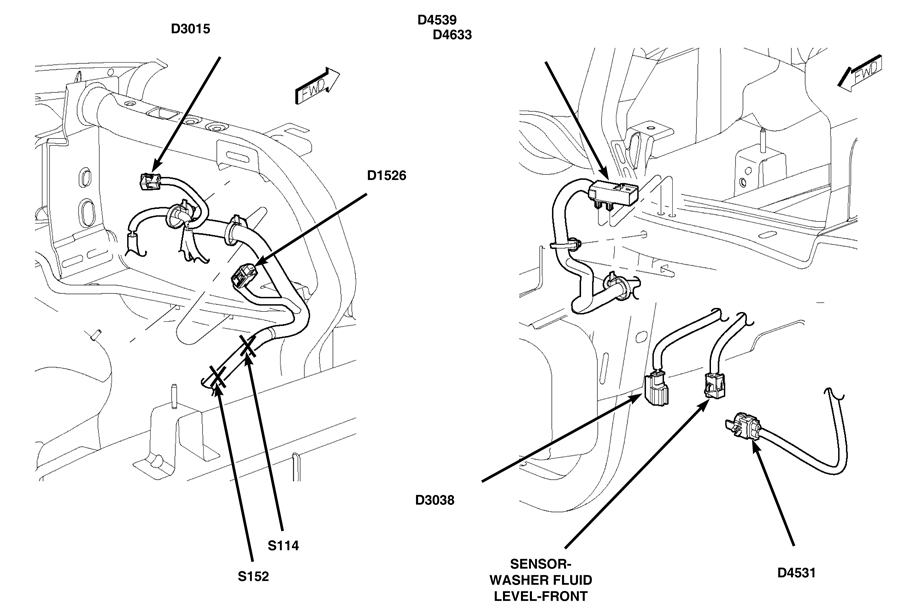

Fig 51: Left Front Of Engine Compartment

G00508865

Courtesy of CHRYSLER LLC

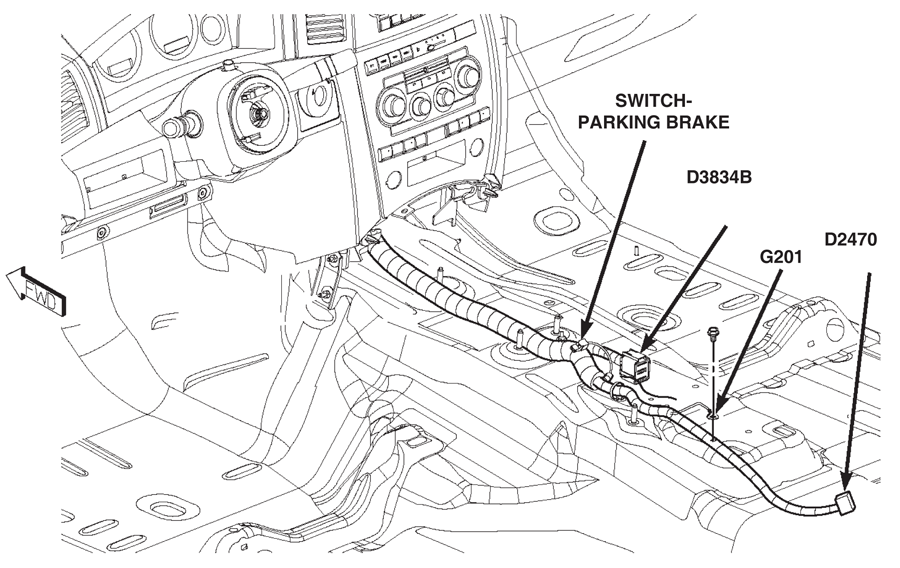

Fig 52: Below Center Console

G00508866

Courtesy of CHRYSLER LLC

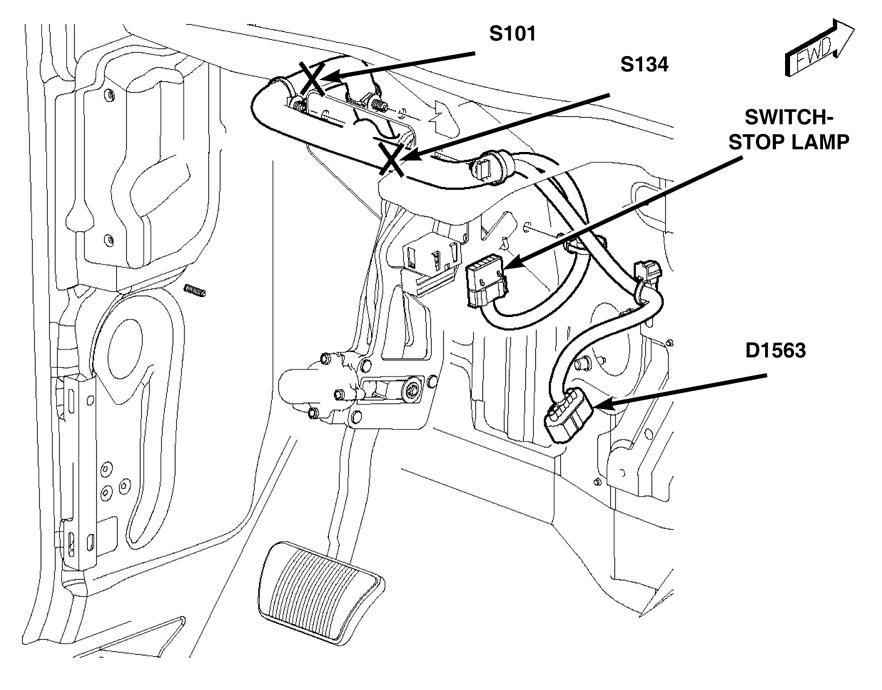

Fig 53: Lower Left Of Dash

G00508867

Courtesy of CHRYSLER LLC

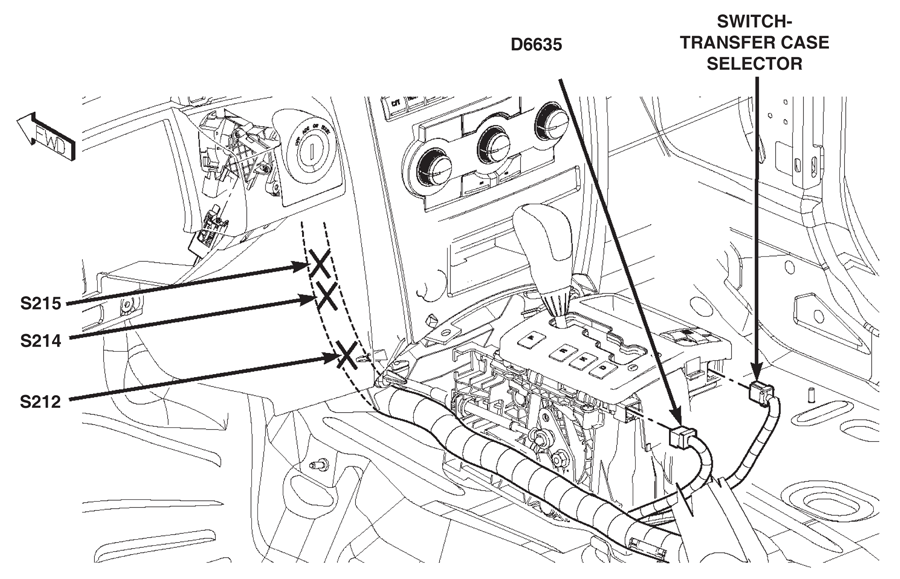

Fig 54: Center Console

G00508868

Courtesy of CHRYSLER LLC

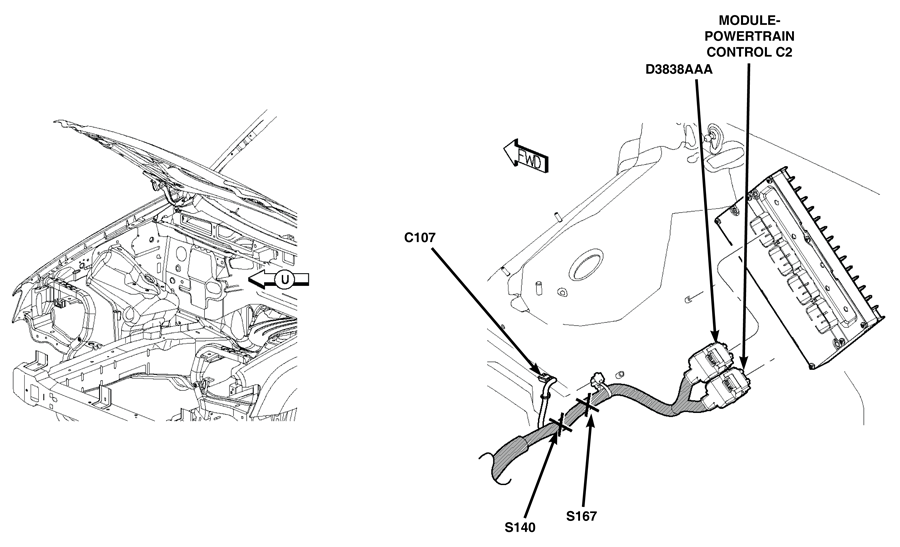

Fig 55: Right Rear Of Engine Compartment

G00508869

Courtesy of CHRYSLER LLC

Fig 56: Center Underbody

G00508870

Courtesy of CHRYSLER LLC

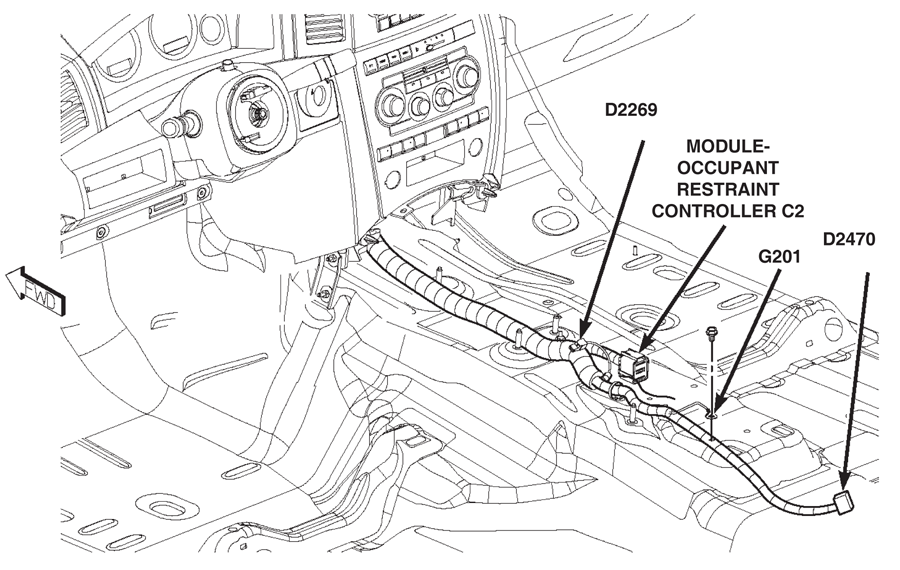

Fig 57: Below Center Console

G00508871

Courtesy of CHRYSLER LLC

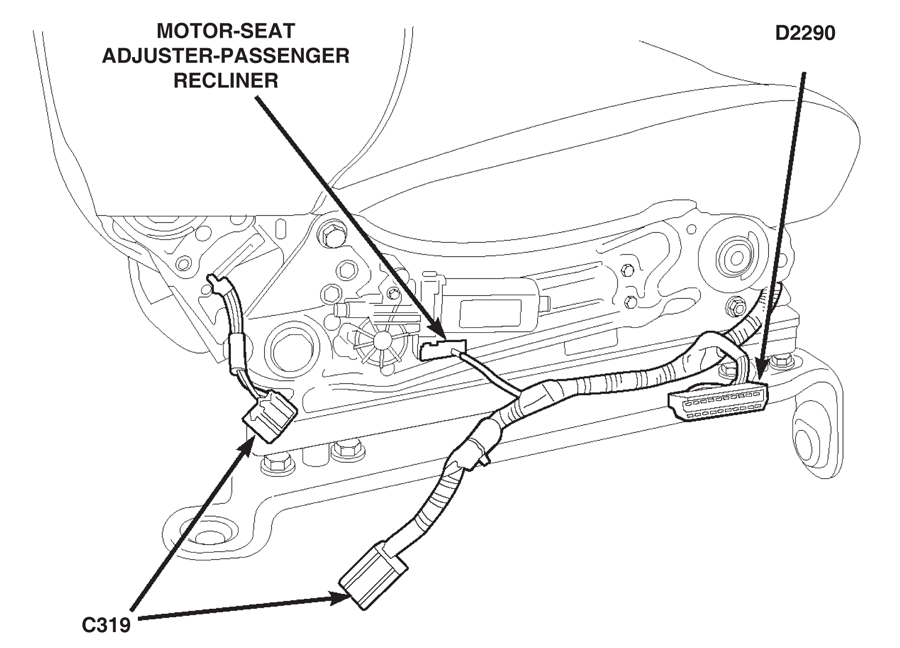

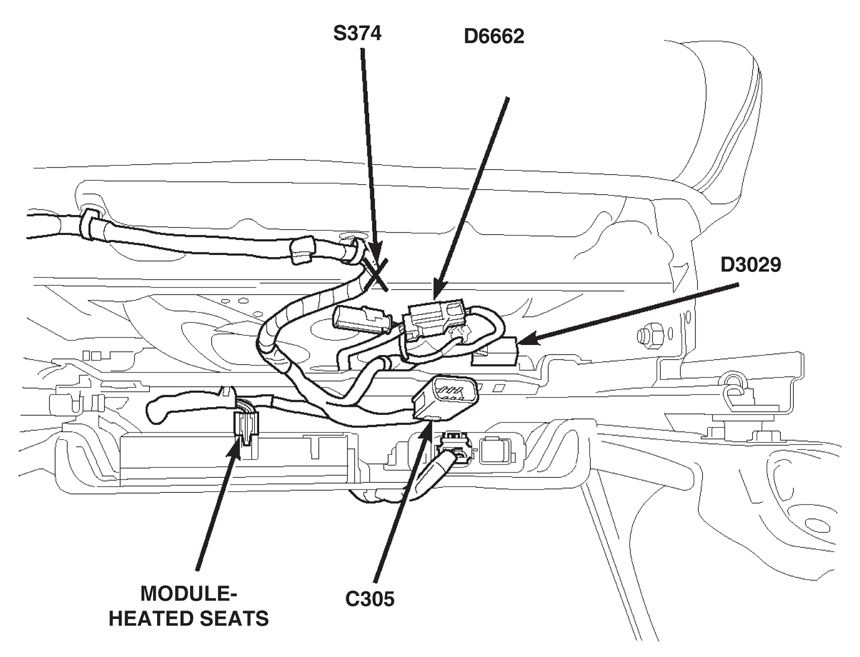

Fig 58: Passenger Seat Bottom

G00508872

Courtesy of CHRYSLER LLC

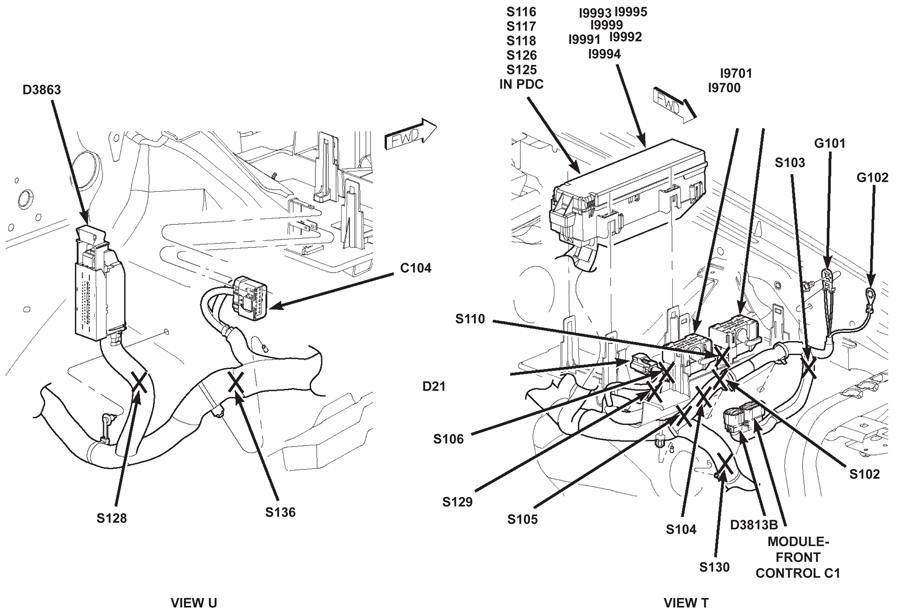

Fig 59: Left Side Of Engine Compartment

G00508873

Courtesy of CHRYSLER LLC

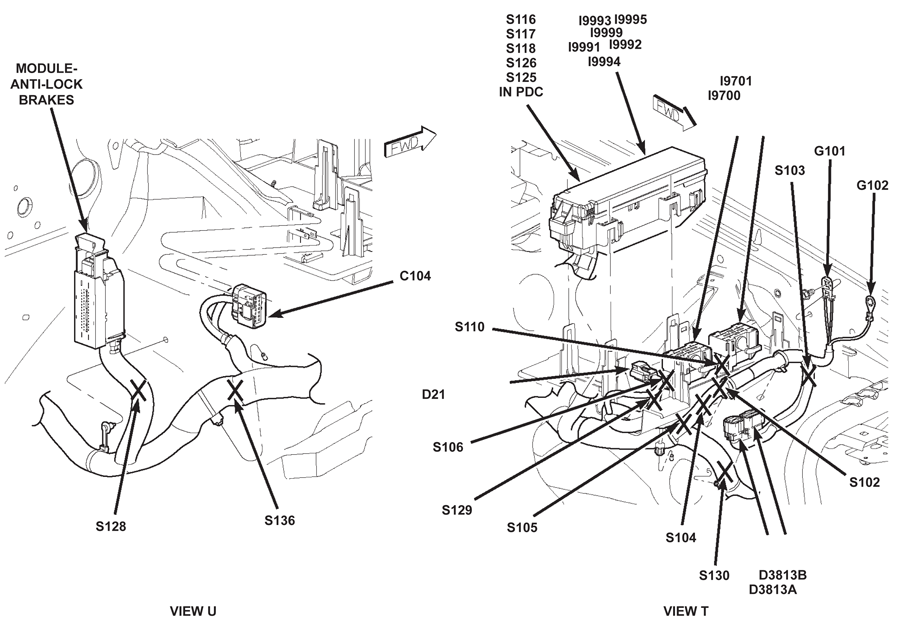

Fig 60: Left Side Of Engine Compartment

G00508874

Courtesy of CHRYSLER LLC

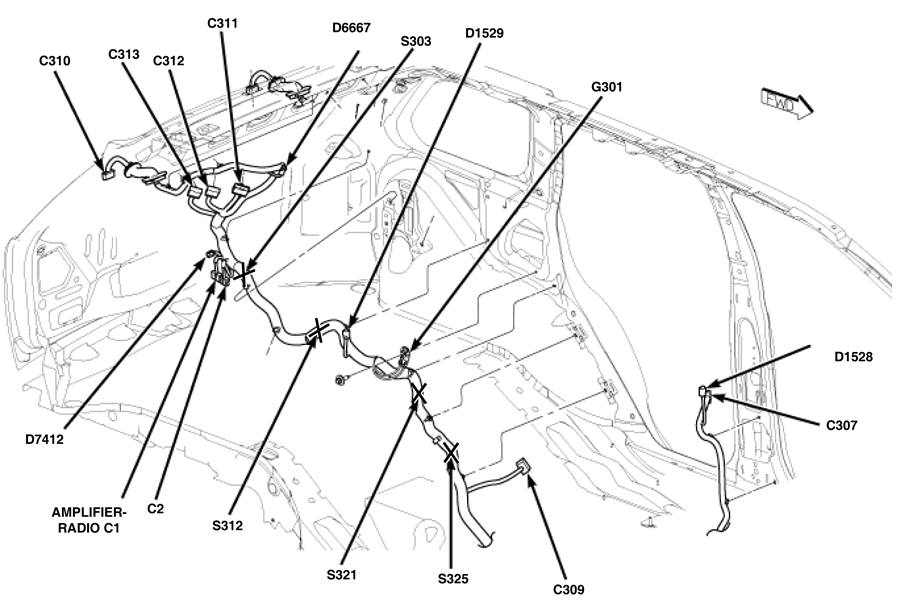

Fig 61: Left Rear Body

G00508875

Courtesy of CHRYSLER LLC

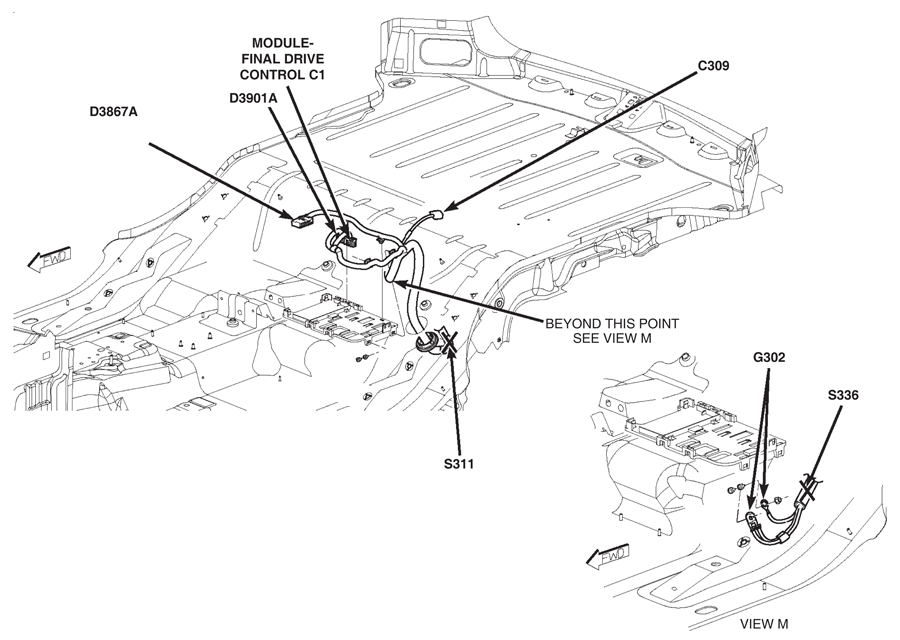

Fig 62: Center Underbody

G00508877

Courtesy of CHRYSLER LLC

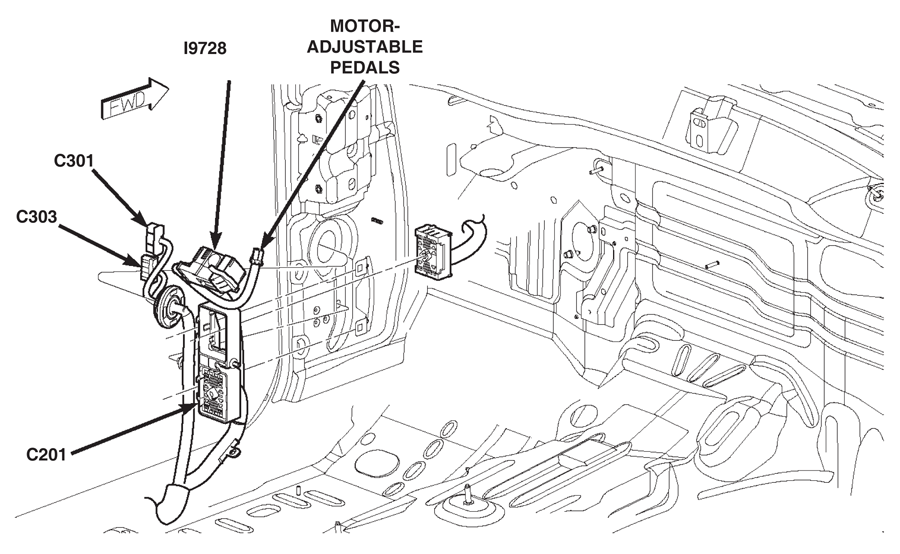

Fig 63: Left Front Body

G00508878

Courtesy of CHRYSLER LLC

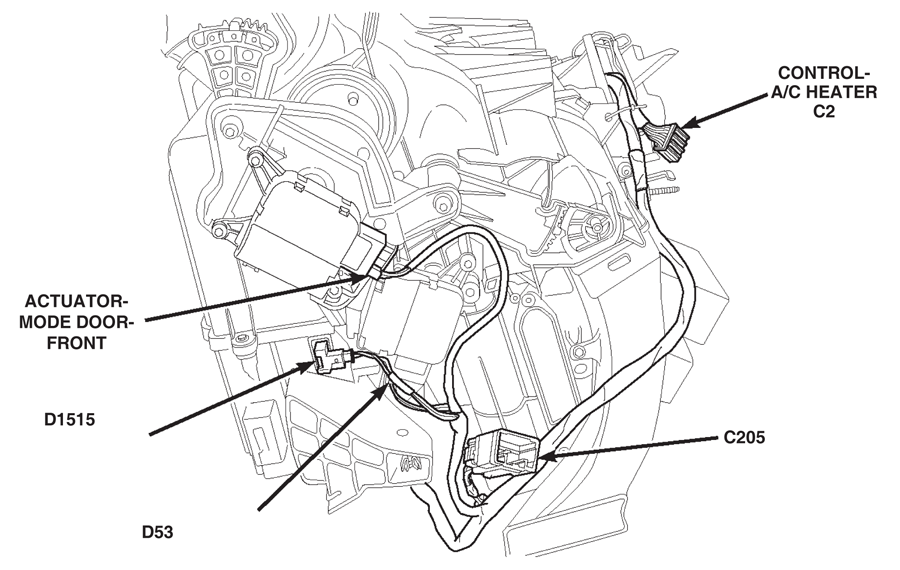

Fig 64: Left Side HVAC

G00508879

Courtesy of CHRYSLER LLC

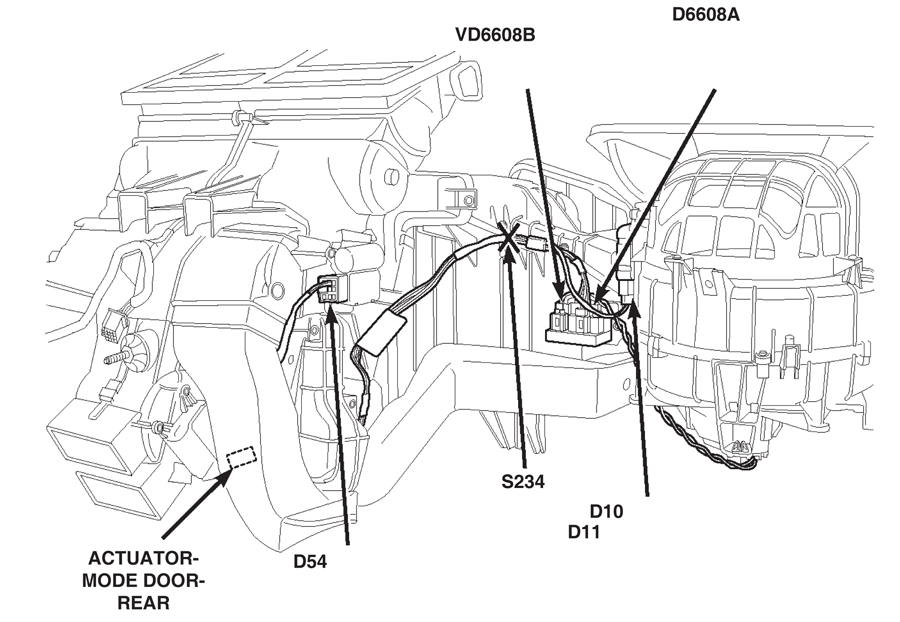

Fig 65: Right Side HVAC

G00508880

Courtesy of CHRYSLER LLC

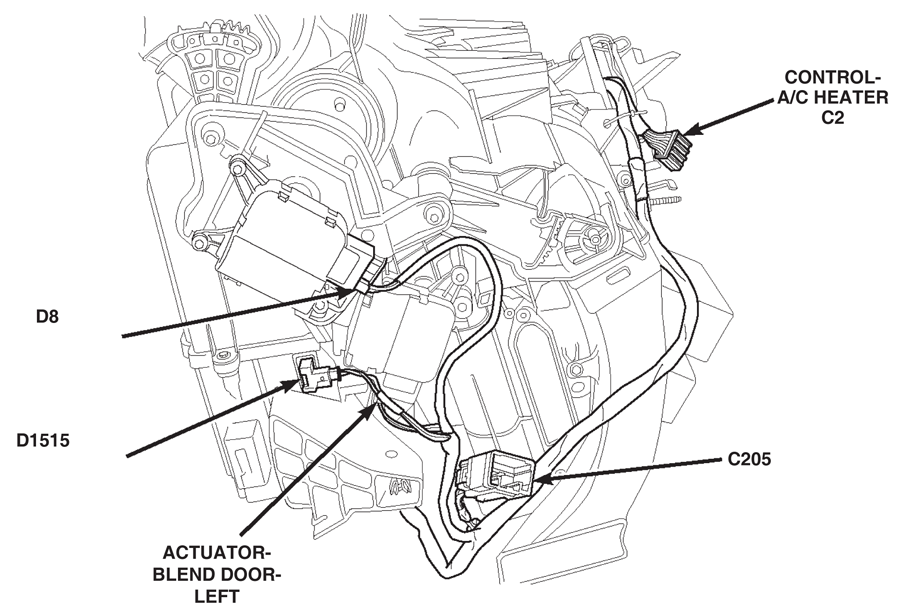

Fig 66: Left Side HVAC

G00508881

Courtesy of CHRYSLER LLC

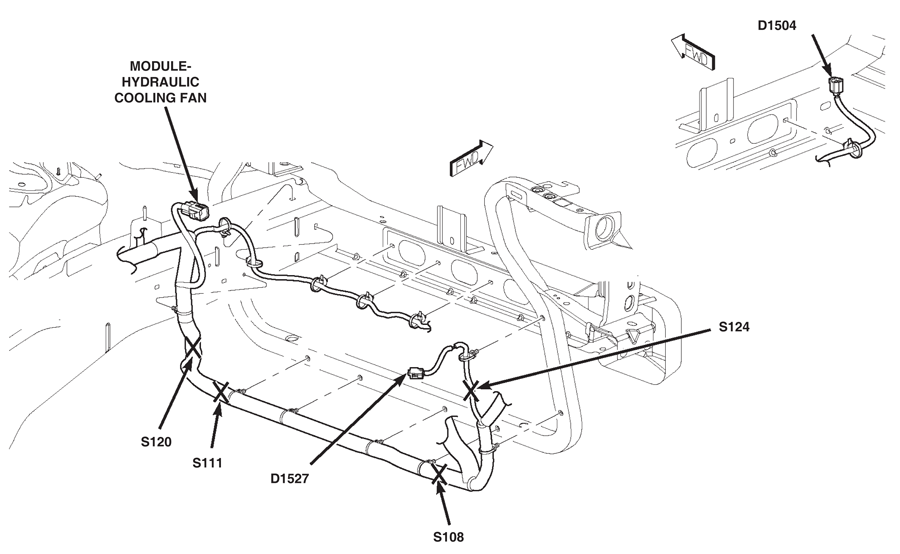

Fig 67: Front Of Engine Compartment

G00508882

Courtesy of CHRYSLER LLC

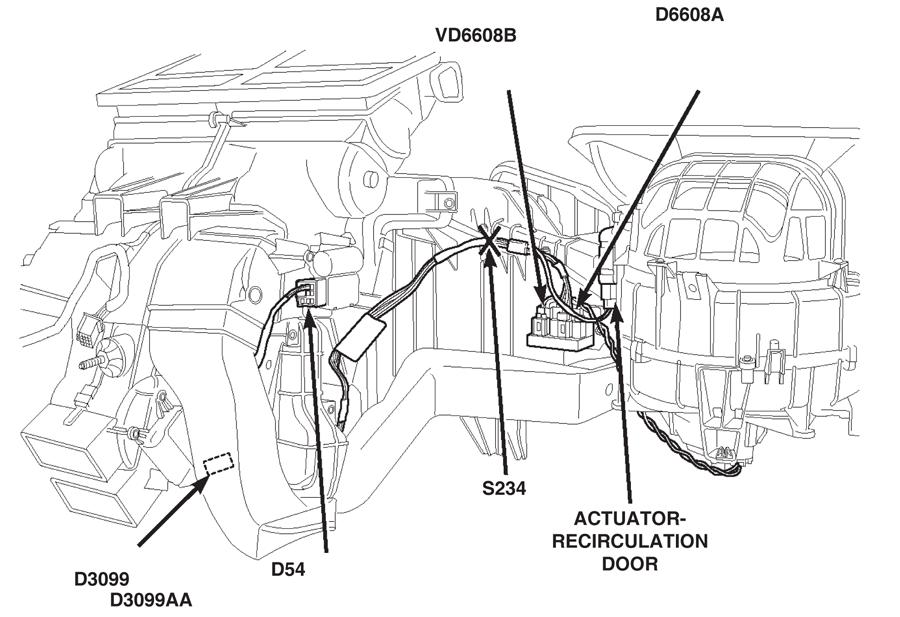

Fig 68: Right Side HVAC

G00508883

Courtesy of CHRYSLER LLC

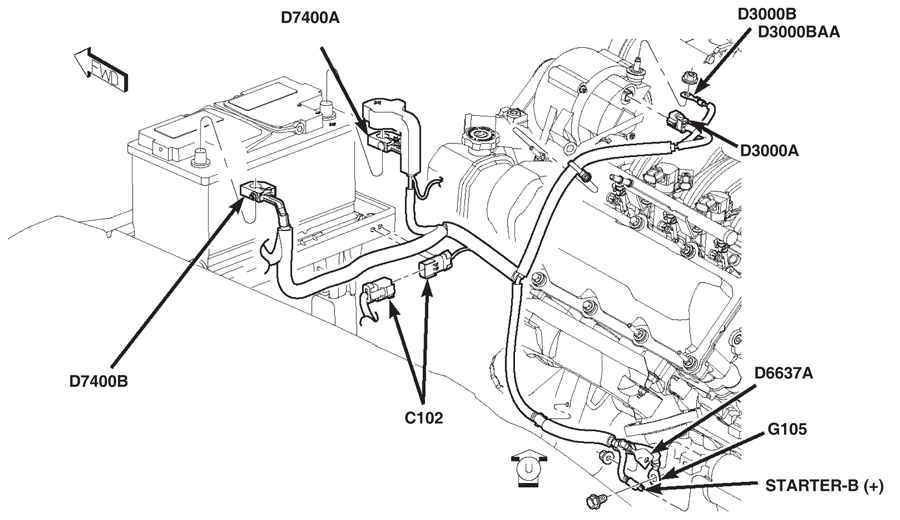

Fig 69: Left Side Of Engine Compartment

G00508884

Courtesy of CHRYSLER LLC

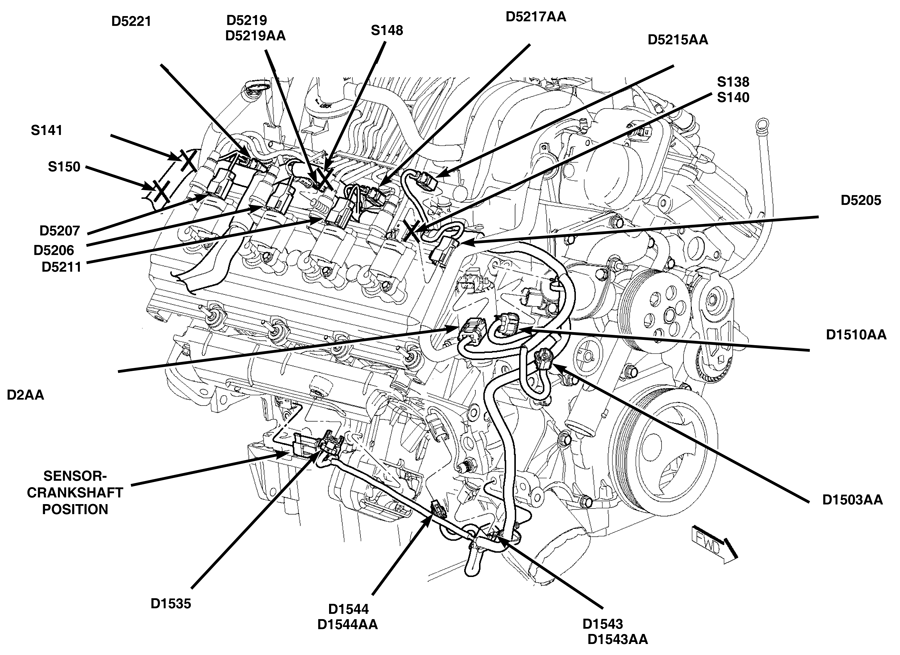

Fig 70: Right Side Of Engine

G00508885

Courtesy of CHRYSLER LLC

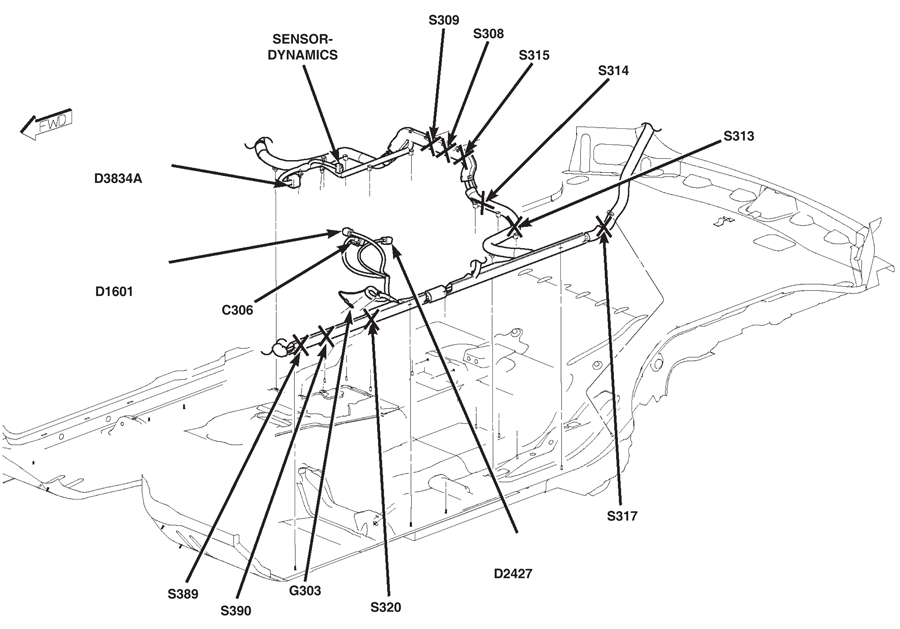

Fig 71: Left Side Body

G00508886

Courtesy of CHRYSLER LLC

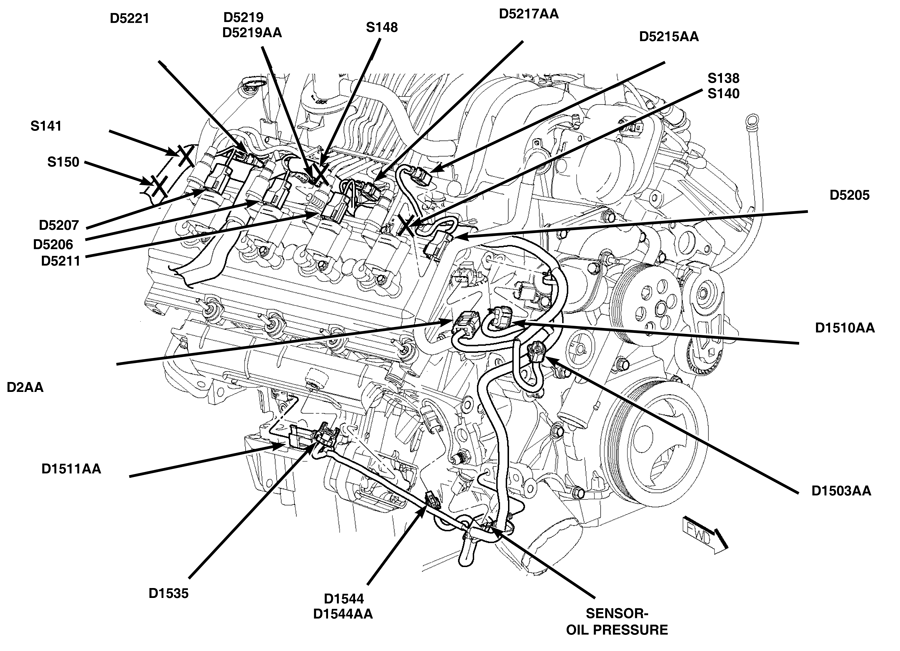

Fig 72: Right Side Of Engine

G00508887

Courtesy of CHRYSLER LLC

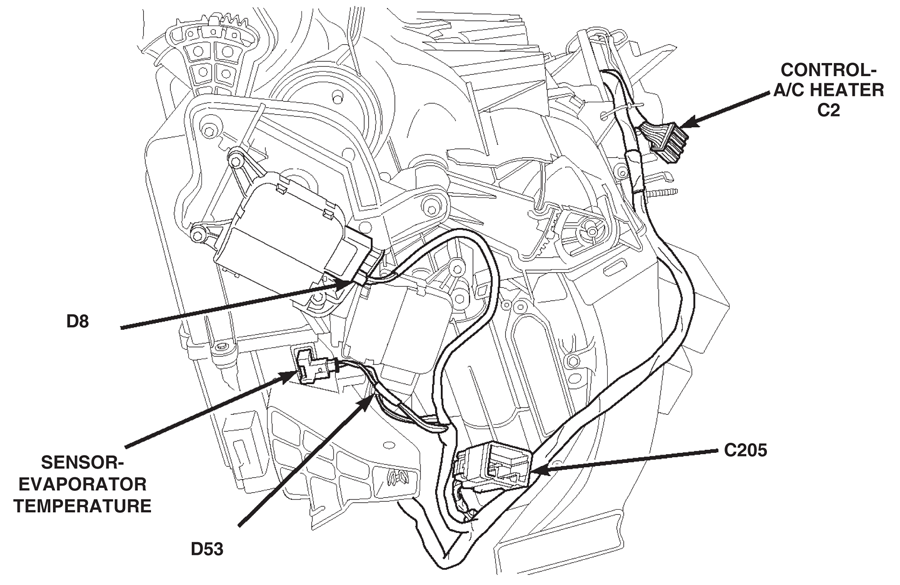

Fig 73: Left Side HVAC

G00508888

Courtesy of CHRYSLER LLC

Fig 74: Transmission

G00508889

Courtesy of CHRYSLER LLC

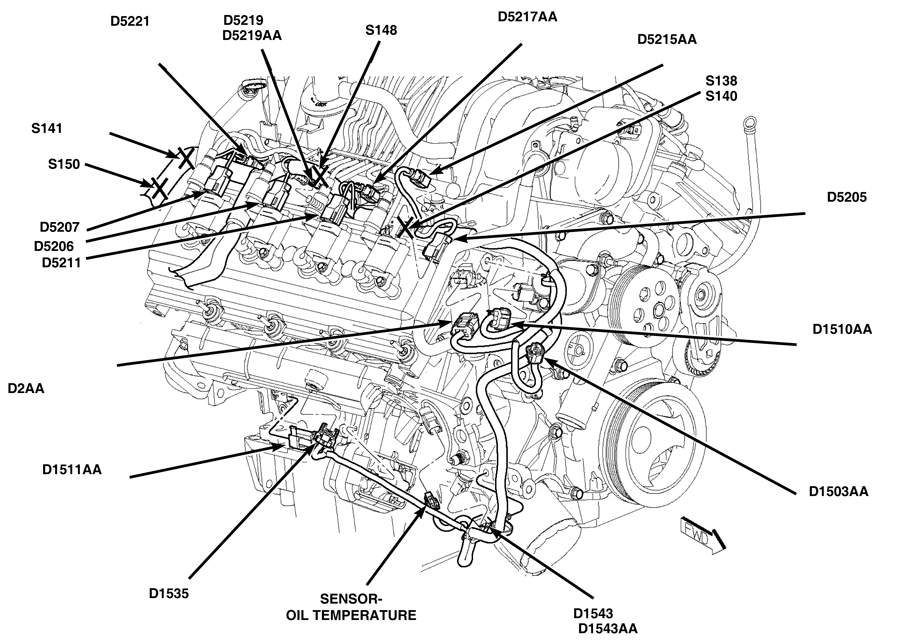

Fig 75: Right Side Of Engine

G00508891

Courtesy of CHRYSLER LLC

Fig 76: Transmission

G00508892

Courtesy of CHRYSLER LLC

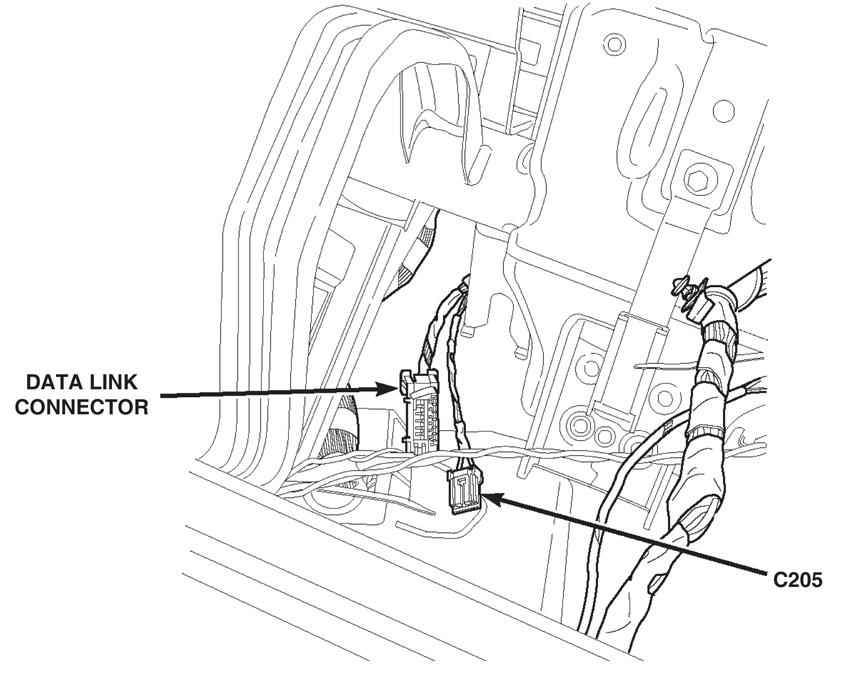

Fig 77: Lower Left Dash

G00508893

Courtesy of CHRYSLER LLC

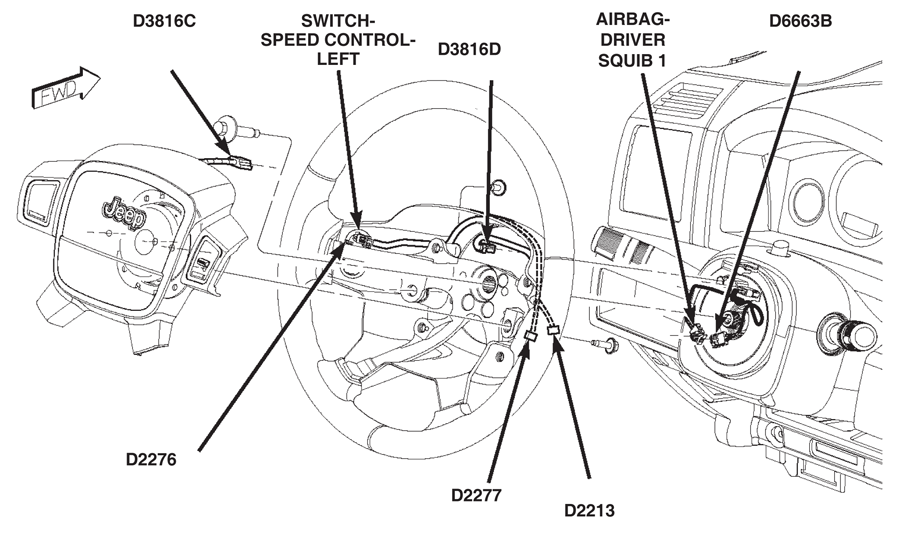

Fig 78: Steering Wheel

G00508894

Courtesy of CHRYSLER LLC

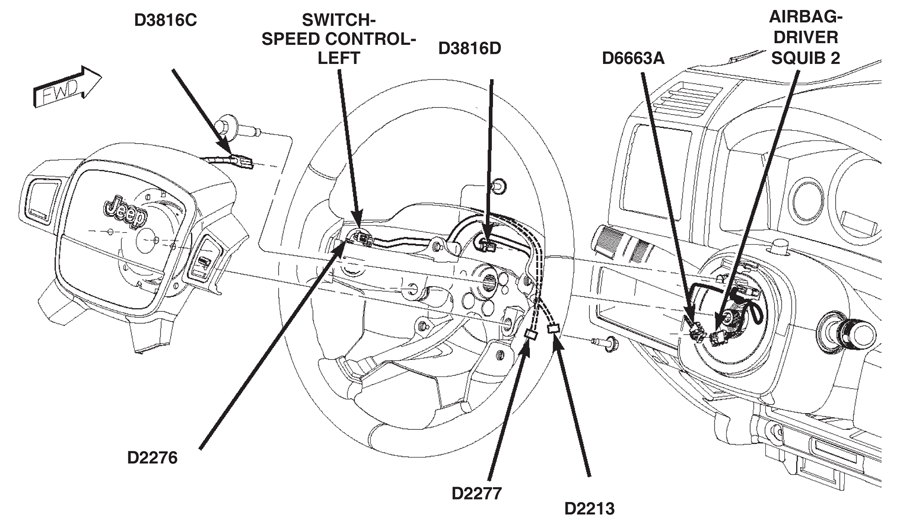

Fig 79: Steering Wheel

G00508895

Courtesy of CHRYSLER LLC

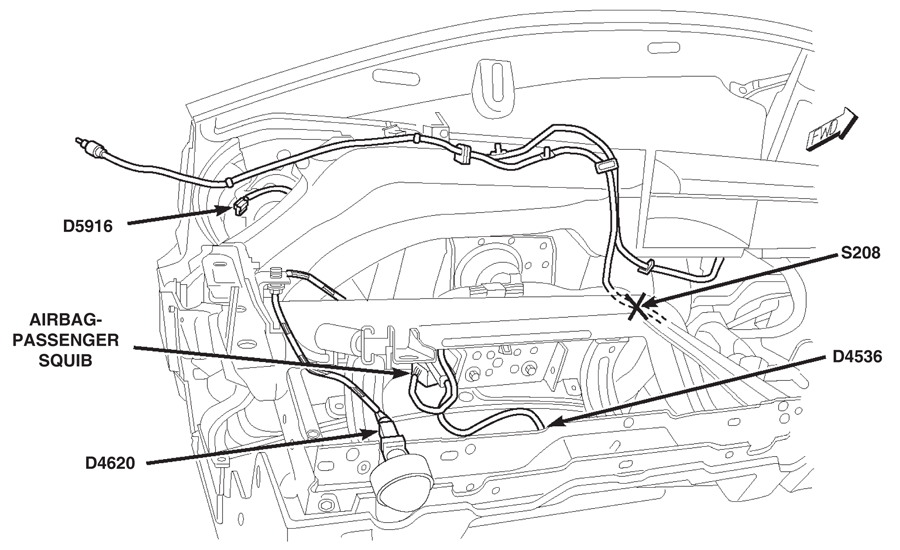

Fig 80: Right Side Of Dash

G00508896

Courtesy of CHRYSLER LLC

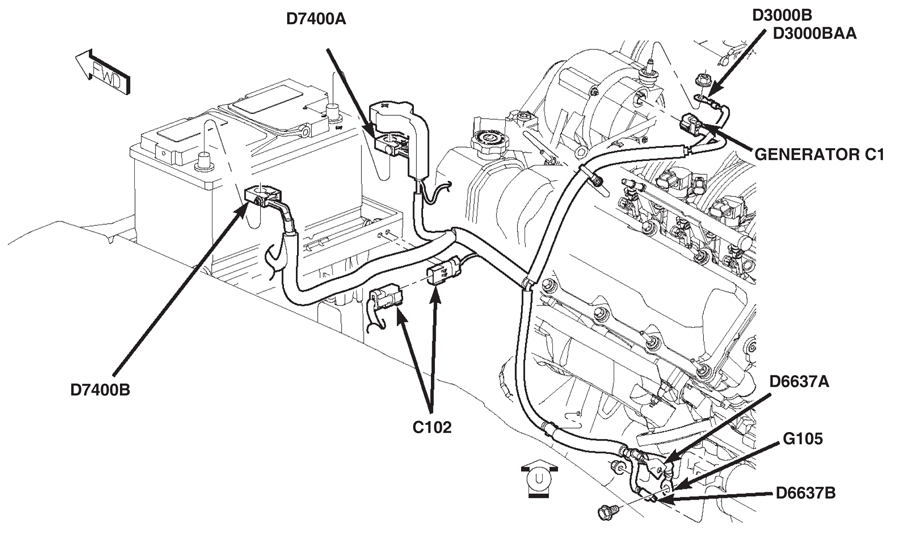

Fig 81: Left Side Of Engine Compartment

G00508897

Courtesy of CHRYSLER LLC

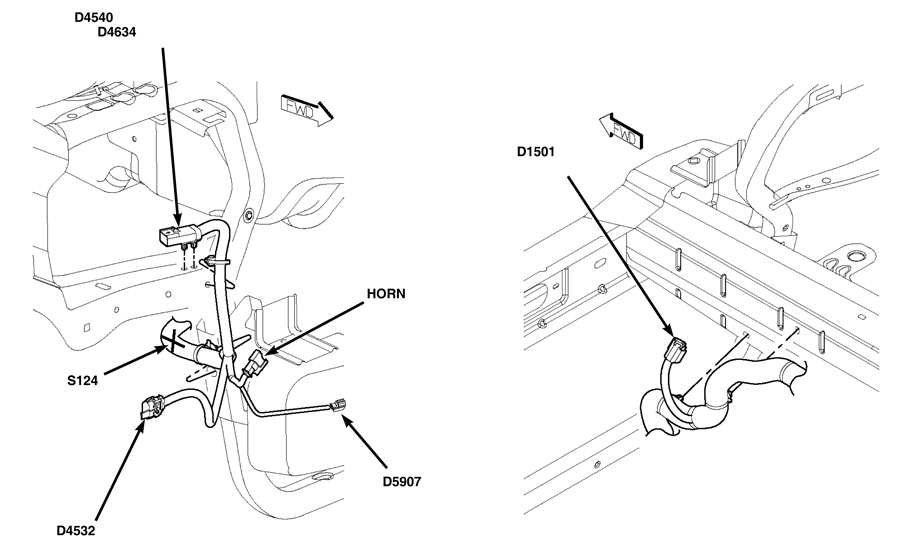

Fig 82: Right Front Of Engine Compartment

G00508898

Courtesy of CHRYSLER LLC

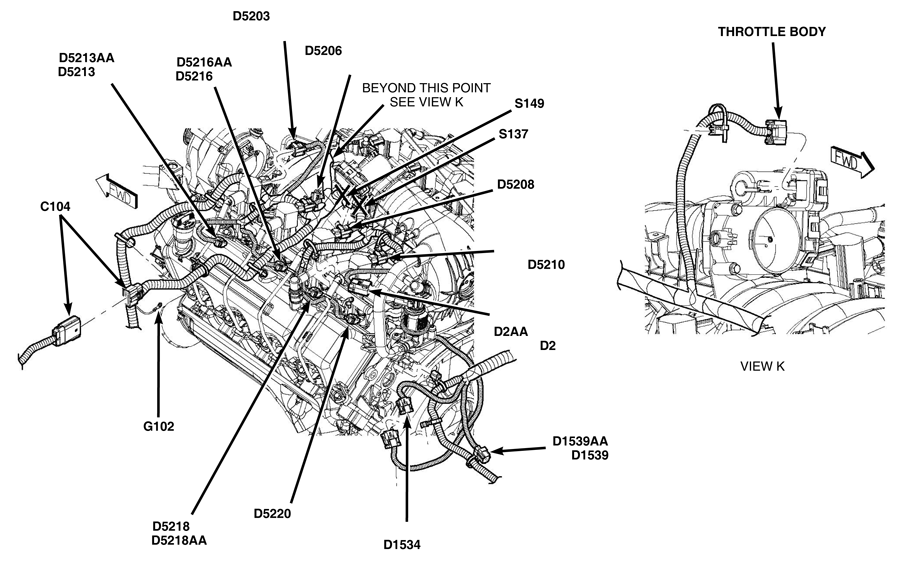

Fig 83: Left Side Of Engine

G00508899

Courtesy of CHRYSLER LLC

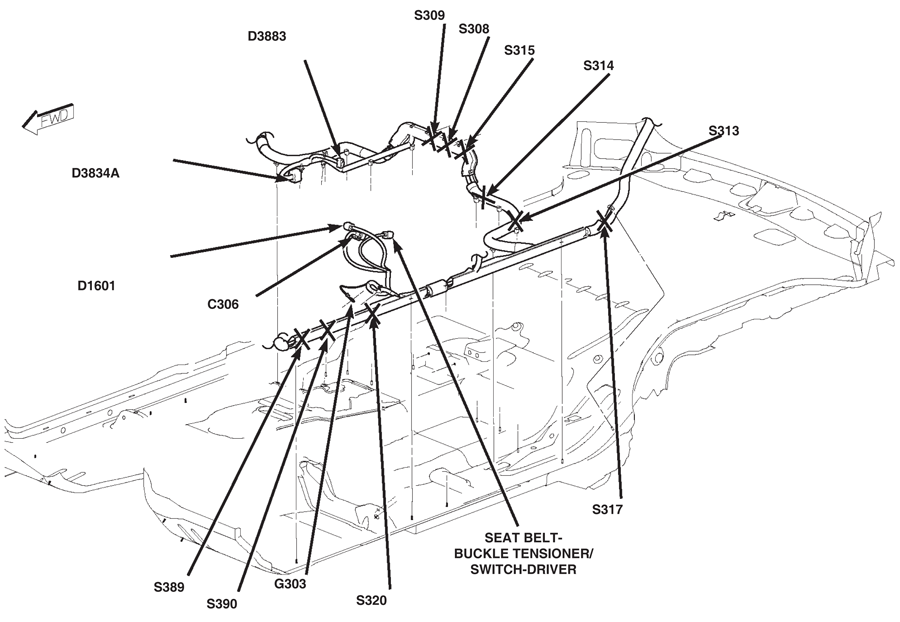

Fig 84: Left Side Of Body

G00508900

Courtesy of CHRYSLER LLC

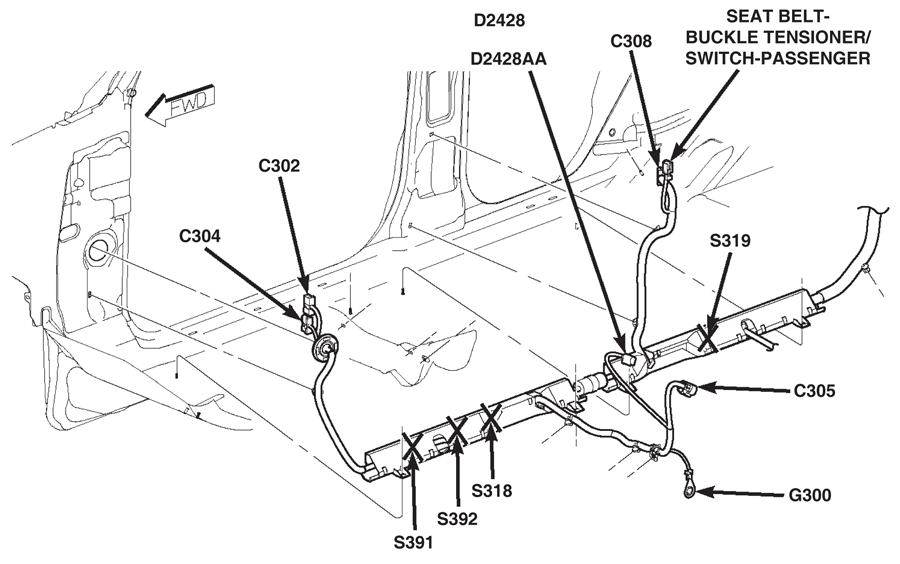

Fig 85: Right Side Of Body

G00508901

Courtesy of CHRYSLER LLC

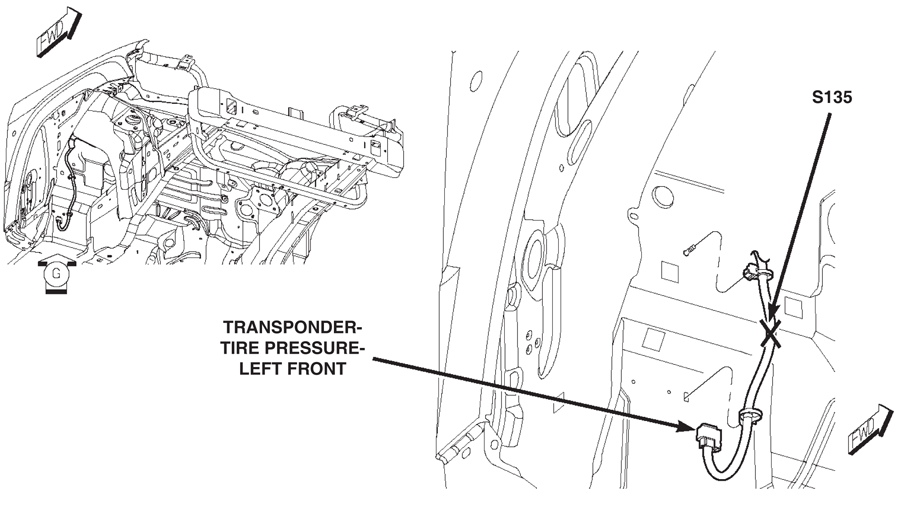

Fig 86: Right Front Wheel Well Shown; Left Is Similar

G00508902

Courtesy of CHRYSLER LLC

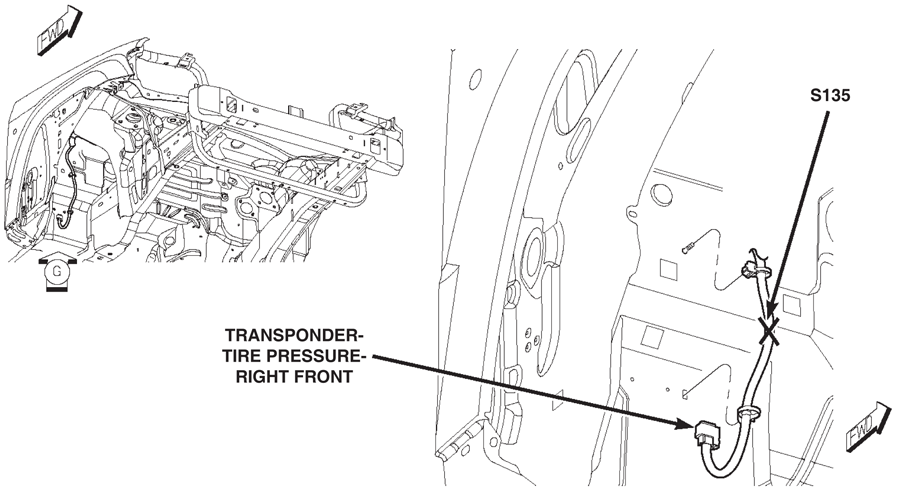

Fig 87: Right Front Wheel Well Shown; Left Is Similar

G00508903

Courtesy of CHRYSLER LLC

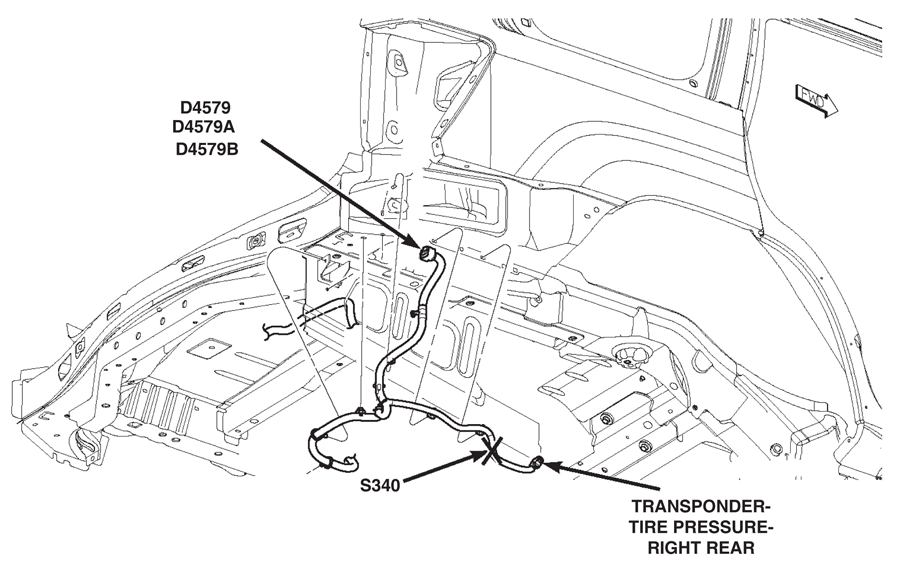

Fig 88: Right Rear Underbody

G00508904

Courtesy of CHRYSLER LLC

Fig 89: Rear Underbody

G00508905

Courtesy of CHRYSLER LLC

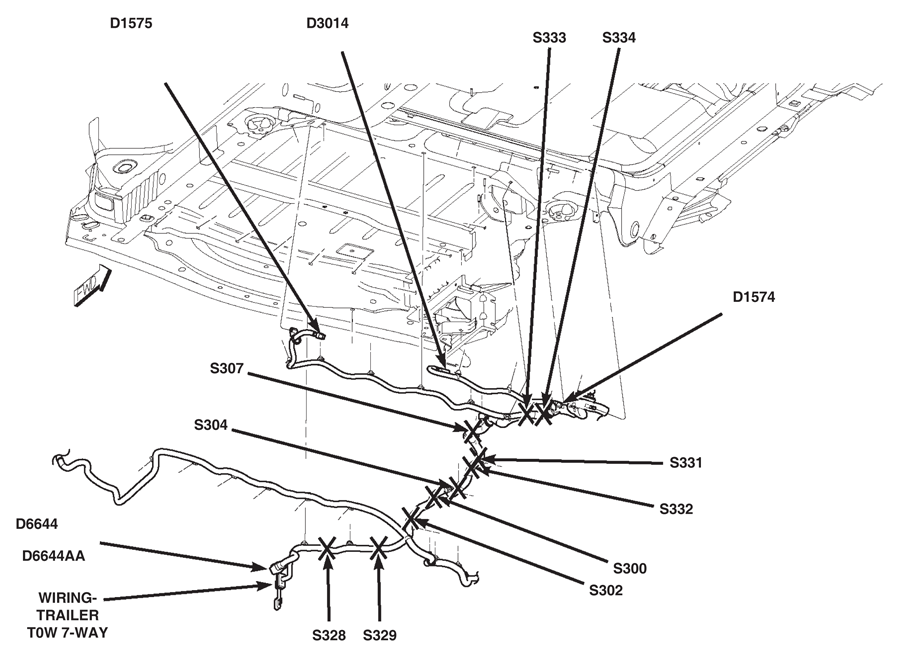

Fig 90: Rear Underbody

G00508906

Courtesy of CHRYSLER LLC

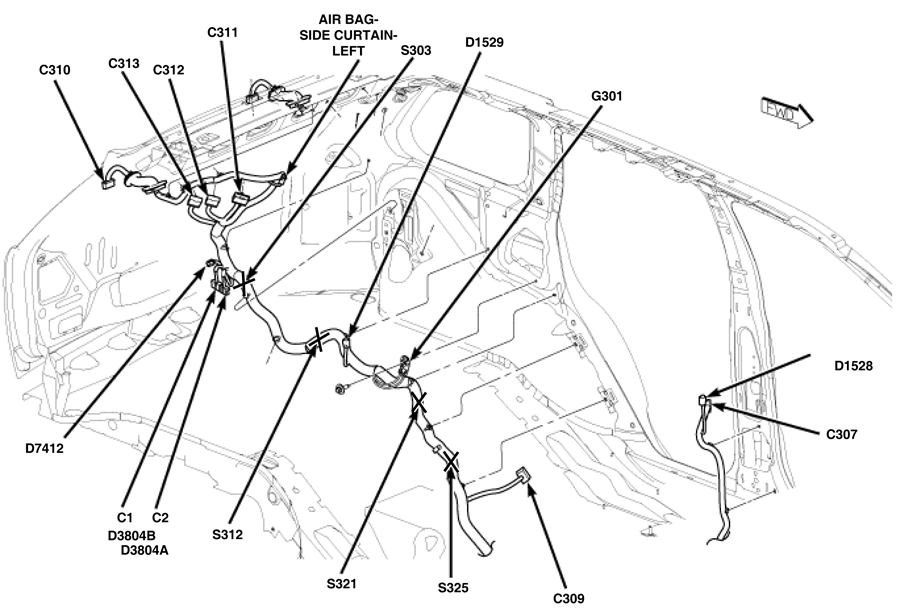

Fig 91: Left Rear Body

G00508907

Courtesy of CHRYSLER LLC

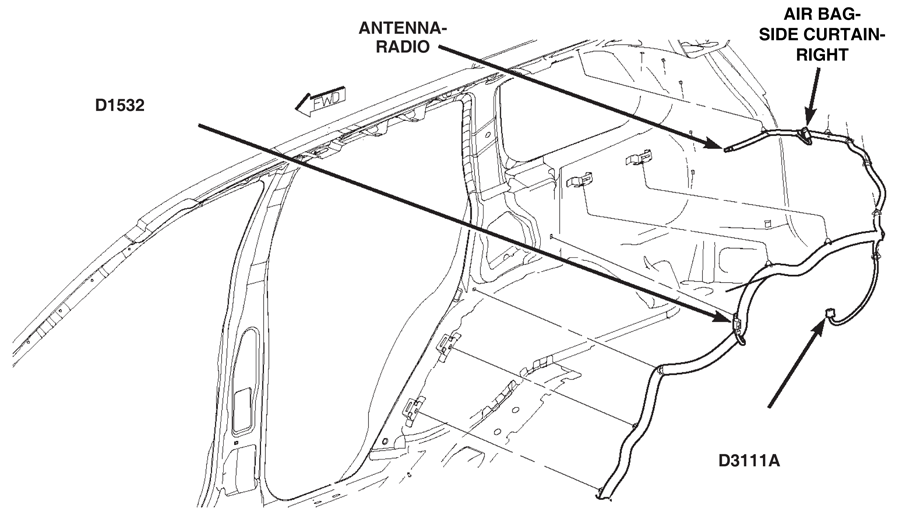

Fig 92: Right Rear Body

G00508908

Courtesy of CHRYSLER LLC
