Electrical Component Locator: Grounds

GROUNDS LOCATION

Component Location

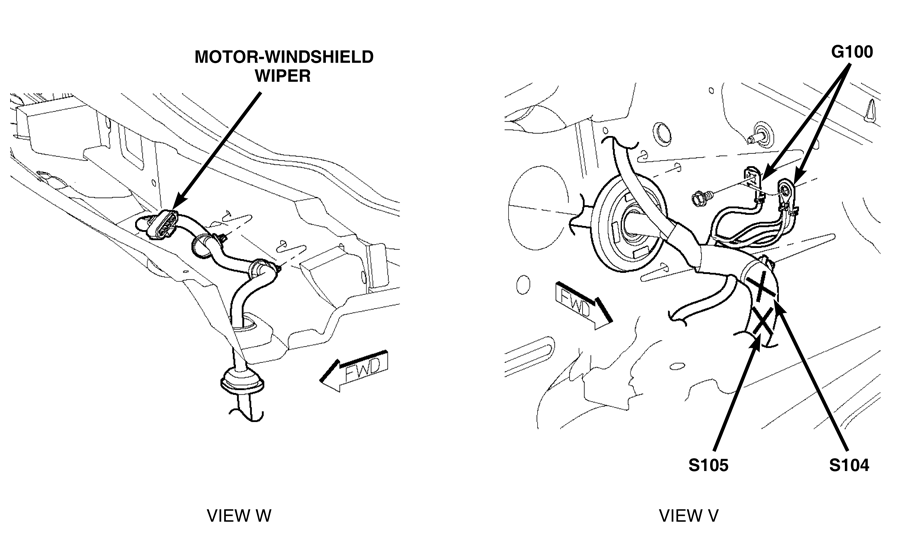

G100 Left rear of engine compartment. See Figure.
G102 Left side of engine compartment. See Figure.
G103 Right side of engine compartment. See Figure.
G104 Left side of engine compartment. See Figure.
G105 Lower left rear of engine. See Figure.

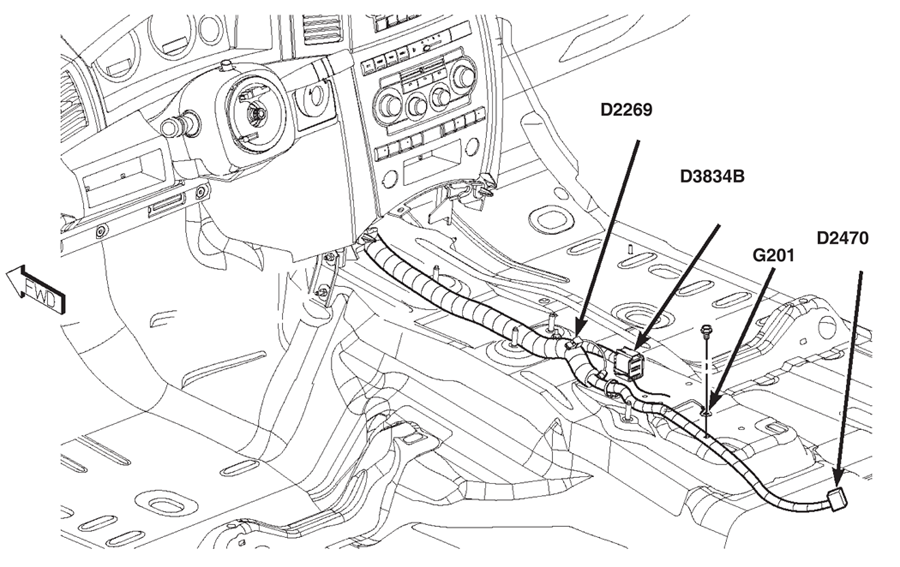

G201 Under center console. See Figure.
G300 Under front passenger's seat. See Figure.
G301 Bottom of left "C" pillar. See Figure.
G302 Under left rear seat. See Figure.
G303 Left of driver's seat. See Figure.
