Diagnostic Test

INTERMITTENT CONDITION
1. Turn the ignition on.
2. With the scan tool, clear all FCM DTCs.
3. Turn the Highbeam Headlamps on.
4. With the scan tool, read the DTC information.
  Does the scan tool display B1637-RIGHT HI BEAM CONTROL CIRCUIT LOW?

  Yes
  - Go to step 2
  No
  - Test complete, the condition or conditions that originally set this DTC are not present at this time. Using the wiring diagrams as a guide, check all related splices and connectors for signs of water intrusion, corrosion, pushed out or bent terminals, and correct pin tension.
  - Perform the BODY VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Front Control (FCM) - Standard Procedure .
(L34) RIGHT HIGHBEAM OUTPUT CIRCUIT SHORTED TO GROUND

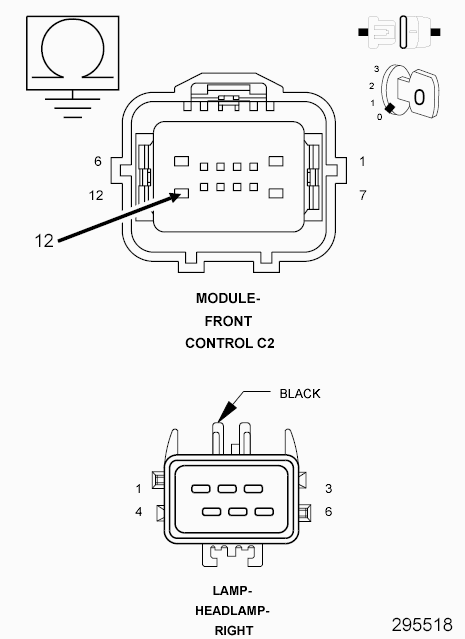

Fig 1: Checking Right High Beam Output Circuit
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the FCM C2 harness connector.
3. Disconnect the Right Headlamp harness connector.
4. Measure the resistance between ground and the (L34) Right Highbeam Output circuit.
  Is the resistance below 5.0 Ohms?

  Yes
  - Repair the short to ground in the (L34) Right Highbeam Output circuit.
  - Perform the BODY VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Front Control (FCM) - Standard Procedure .
  No
  - Replace the FCM in accordance with the Service Information.
  - Perform the BODY VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Front Control (FCM) - Standard Procedure .
