Passive Restraints
The passive restraints available for this vehicle include the following:
- Dual Front Airbags - Multistage driver and front passenger airbags are used in this vehicle. This airbag system consists of passive, inflatable, Supplemental Restraint System (SRS) components and vehicles with this equipment can be readily identified by the SRS - AIRBAG logo molded into the driver airbag trim cover in the center of the steering wheel and also into the passenger airbag area of the instrument panel top pad above the glove box. Vehicles with the airbag system can also be identified by the airbag indicator, which will illuminate in the ElectroMechanical Instrument Cluster (EMIC) (also known as the Cab Compartment Node/CCN) for about seven seconds as a bulb test each time the ignition switch is turned to the ON position. A pyrotechnic-type seat belt tensioner is also integral to the front seat belt buckle units mounted on the inboard side of each front seat cushion frame to work in conjunction with the dual front airbags.
- Side Curtain Airbags - Side curtain airbags are standard equipment in this vehicle when it is also equipped with dual front airbags. This airbag system consists of passive, inflatable SRS components and vehicles with this equipment can be readily identified by a molded identification trim button with the SRS - AIRBAG logo located on the headliner above the top of each B-pillar upper trim panel.

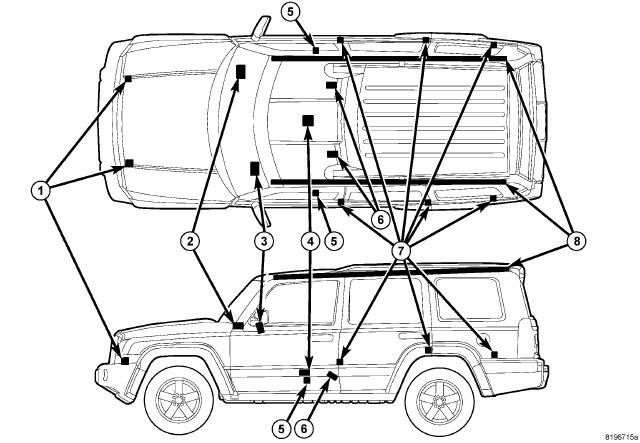

The SRS includes the following major components, which are described in further detail elsewhere in this service information:
- Airbag Indicator - The airbag indicator is integral to the ElectroMechanical Instrument Cluster (EMIC) (also known as the Cab Compartment Node/CCN), which is located on the instrument panel in front of the driver.
- Clockspring - The clockspring is located near the top of the steering column, directly beneath the steering wheel.
- Driver Airbag (3) - The driver airbag is located in the center of the steering wheel, beneath the driver airbag trim cover.
- Driver Knee Blocker - The driver knee blocker is a structural unit secured to the back side of and integral to the instrument panel steering column opening cover.
- Front Impact Sensor (1) - Two front impact sensors are used on vehicles equipped with dual front airbags, one left side and one right side. One sensor is located on the back side of each vertical member of the radiator support.
- Occupant Restraint Controller (4) - The Occupant Restraint Controller (ORC) is located on a mount on the floor panel transmission tunnel behind the transmission gear selector, and is concealed beneath the center floor console.
- Passenger Airbag (2) - The passenger airbag is located in the instrument panel, beneath the instrument panel top pad and above the glove box on the passenger side of the vehicle.
- Passenger Knee Blocker - The passenger knee blocker is a structural reinforcement that is integral to and concealed within the glove box door.
- Seat Belt Tensioner (6) - A seat belt tensioner is integral to both front seat belt buckle units on vehicles equipped with dual front airbags. The seat belt buckle tensioner units are secured to the inboard side of the front seat cushion frames and concealed beneath the inboard seat cushion side shield trim.
- Seat Track Position Sensor (5) - A seat track position sensor is located on the inboard side of one of the seat adjuster tracks on the driver side front seat on vehicles manufactured for domestic markets.
- Side Curtain Airbag (8) - A side curtain airbag is secured to each inside roof side rail above the headliner, and extends from the A-pillar to just ahead of the D-pillar.
- Side Impact Sensor (7) - Up to six side impact sensors are used, three on each side of the vehicle. One sensor is located behind the B-pillar trim near the belt line of each B-pillar, one sensor is located behind the quarter panel trim near the belt line of each C-pillar, and if the vehicle is equipped with an optional third row seat, one sensor is located behind the quarter panel trim near the belt line of each quarter inner panel just forward of the D-pillar.
The ORC and the EMIC each contain a microprocessor and programming that allow them to communicate with each other using the Controller Area Network (CAN) data bus. This method of communication is used by the ORC for control of the airbag indicator in the EMIC. Refer to Electrical - Electronic Control Modules/Electronic Control Modules/COMMUNICATION - Description .
Hard wired circuitry connects the SRS components to each other through the electrical system of the vehicle. These hard wired circuits are integral to several wire harnesses, which are routed throughout the vehicle and retained by many different methods. These circuits may be connected to each other, to the vehicle electrical system, and to the SRS components through the use of a combination of soldered splices, splice block connectors, and many different types of wire harness terminal connectors and insulators. Refer to the appropriate SYSTEM WIRING DIAGRAMS information. The wiring information includes wiring diagrams, proper wire and connector repair procedures, further details on wire harness routing and retention, as well as pin-out and location views for the various wire harness connectors, splices and grounds.
