Fuel System

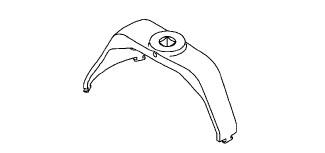

Fig 1: SAE FUEL PUMP LOCK RING WRENCH - 9340

Courtesy of CHRYSLER LLC

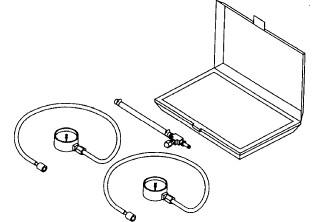

Fig 2: KIT, FUEL PRESSURE TEST - 5069

Courtesy of CHRYSLER LLC

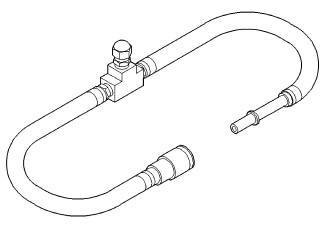

Fig 3: ADAPTER, FUEL PRESSURE - 6539

Courtesy of CHRYSLER LLC

Fig 4: ADAPTER, FUEL PRESSURE - 6631

Courtesy of CHRYSLER LLC

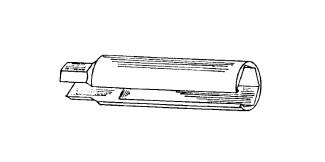

Fig 5: OXYGEN SENSOR SOCKET - C-4907

Courtesy of CHRYSLER LLC
