COIL, Ignition, 3.8L: Installation: Installation

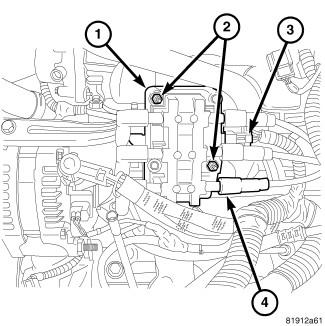

Fig 1: Ignition Coil Pack 3.8L

Courtesy of CHRYSLER LLC

1. Install coil pack over mounting studs.
2. Install two mounting nuts (2).
3. Connect electrical connector (3) to ignition coil.
4. Install six ignition cables (4) to ignition coil.
5. Connect negative battery cable.
