Wheel Stud / Lug Nut
WHEEL FASTENER

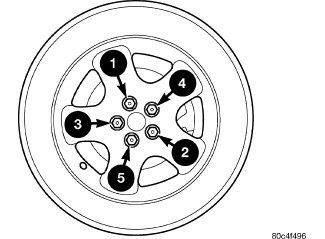

Wheel mounting (lug) nuts
Tighten nuts to a final torque
135 Nm (100 ft. lbs.)
