Steering System: Column: Installation: Installation

Fig 1: Column Mounting
GC0082510Courtesy of CHRYSLER LLC
NOTE:

LHD model shown in illustrations. RHD model similar.

  1. If the steering column is being replaced, assemble components on the steering column as necessary before column installation. Refer to Column, Assembly .
    NOTE:

    When installing a tilt column, do not release the tilt lever from the locked position until after the column is installed on the instrument panel.

  2. Install the steering column through the steering column opening.
  3. Raise the column onto the mounting studs and install the three mounting nuts (1) on the studs and the 1 bolt (2).

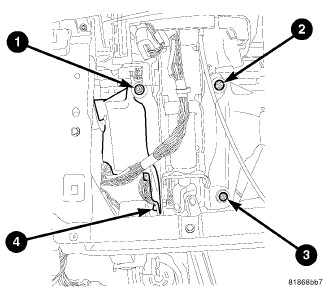

    Fig 2: Column Tightening Sequence
    GC0082512Courtesy of CHRYSLER LLC
    NOTE:

    When tightening the fasteners in the following step, make sure there is no gap between the column flange and the instrument panel support at bolt (4).

  4. Starting with the left upper nut and proceeding in a clockwise tightening sequence ending at the bolt (left lower), tighten all four mounting fasteners to 28 N.m (21 ft. lbs.).
    Fig 3: Lower Coupling Bolt
    GC0084367Courtesy of CHRYSLER LLC
  5. Verify the front wheels of vehicle are in the STRAIGHT-AHEAD position.
  6. Collapse the intermediate shaft (2). Center it over the steering gear pinion shaft (4), lining up the ends, then slide the intermediate shaft onto the steering gear pinion shaft. Do not install the intermediate shaft coupling bolt (3) at this time. The bolt can be more easily installed in a later step.
    Fig 4: Measuring For Voltage On The CMP Sensor Ground Circuit
    GC0082509Courtesy of CHRYSLER LLC
  7. Connect the wiring harness connectors (2) to the Steering Column Control Module (SCCM) (1).
  8. Connect any other the wiring harness connectors.
    Fig 5: Shift Interlock Cable AT Column
    GC0084368Courtesy of CHRYSLER LLC
  9. If equipped with an automatic transaxle, connect the ignition shift interlock cable to the steering column. To do so, insert the ignition key into the key cylinder and turn it to the ON position. Push the interlock cable connector (2) into the lock cylinder housing (1) until it clicks into place. Make sure the ignition-shift interlock feature operates properly.
    Fig 6: Steering Column Shrouds
    GC0083150Courtesy of CHRYSLER LLC
  10. Push the tilt lever (5) downward.
  11. Install the lower shroud (2) over the tilt lever and onto the column.
  12. Position the column tilt (5) at the full-upward position.
  13. Push the tilt lever (5) upward, locking it in place.
  14. Install the screw (3) attaching the lower shroud (2) to the steering column (6).
  15. Position the column tilt at the full-downward position and lock it in place.
  16. Install the upper shroud over the lower shroud, clipping the shrouds to one another.
  17. Install the two screws (4) attaching the upper shroud (1) to the lower shroud (2).
    Fig 7: Steering Column Reinforcement Panel & Four Screws
    GC0083940Courtesy of CHRYSLER LLC
  18. Position the column tilt at the full-upward position.
  19. Install the steering column reinforcement panel (1) and four screws (2).
    Fig 8: Air Bag Removal/Installation
    GC0082507Courtesy of CHRYSLER LLC
    CAUTION:

    When installing the steering wheel, the clockspring must be centered in its travel to avoid overextending the clockspring inner parts, causing the clockspring to become inoperative. If removed and handled properly using the correct procedures, it should be in the "centered" position. If there is any question as to whether the clockspring is in the "centered" position of travel, perform the clockspring centering procedure before proceeding. Refer to CLOCKSPRING, Standard Procedure .

    NOTE:

    Do not reuse the old steering wheel bolt, a new bolt must be used every time.

  20. Install the steering column opening cover (5). Refer to COVER, Steering Column Opening, Installation .
  21. Install the steering wheel (2) and a NEW  retaining bolt (4). Tighten the steering wheel retaining bolt to 50 N.m (37 ft. lbs.). Refer to WHEEL, Steering, Installation .
    Fig 9: Steering Wheel Wiring
    GC0082508Courtesy of CHRYSLER LLC
  22. Connect the wiring connector (2) at the clockspring.
    Fig 10: Air Bag Removal/Installation
    GC0082507Courtesy of CHRYSLER LLC
  23. Install the driver airbag (3). Refer to AIR BAG, Driver, Installation .
    Fig 11: Lower Coupling Bolt
    GC0084367Courtesy of CHRYSLER LLC
  24. From center, rotate the steering wheel to the right approximately 90° or until the shaft coupling pinch bolt (3) can be easily installed.
  25. Install the intermediate shaft coupling bolt (3). Tighten the bolt to 42 N.m (31 ft. lbs.).
  26. Reposition the floor carpet (1) in place.
  27. Straighten the steering wheel to STRAIGHT-AHEAD position.
    WARNING:

    Do not connect the battery ground cable without following the proper procedure as indicated in the following step. Personal injury or death may result if the Airbag System Test is not performed first.

  28. Reconnect the battery ground terminal following the Airbag System Test found in Restraints. Refer to Diagnosis and Testing .
  29. Test the operation of the all column mounted components. If applicable, reset the radio and the clock as necessary.
  30. Road test the vehicle to ensure proper operation of the steering system.
