PEDAL, Accelerator: Removal: Removal

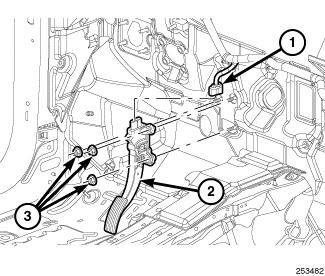

Fig 1: Pedal And APPS Sensor
GC0098890Courtesy of CHRYSLER LLC
  1. Disconnect and isolate negative battery cable at battery.
  2. Disconnect the electrical connector from accelerator pedal.
  3. Remove mounting nuts and remove accelerator pedal from the mounting studs.
