PLUG, Glow: Installation: Installation

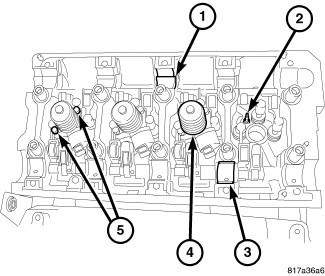

Fig 1: Glow Plugs
GC0098506Courtesy of CHRYSLER LLC
  1. Clean glow plug bay and install glow plug.
  2. Tighten glow plugs to 10 N.m (89 lbs. in.).
  3. Connect glow plug electrical connector.
  4. Install cylinder head cover.
  5. Install engine cover.
  6. Connect negative battery cable.
