HEATER, Engine Block: Removal: Removal

Fig 1: Air Cleaner Inlet
GC0098469Courtesy of CHRYSLER LLC
  1. Remove engine cover.
  2. Remove air cleaner inlet.

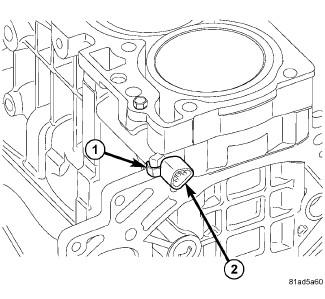

    Fig 2: Block Heater 2.0/2.4L Engine
    GC0083974Courtesy of CHRYSLER LLC
    1 - RETAINING CLIP
    2 - BLOCK HEATER
  3. Detach power cord plug from heater.
  4. Remove retaining clip (1). Remove block heater assembly (2).
