VALVE, Manifold Flow: Installation: Installation

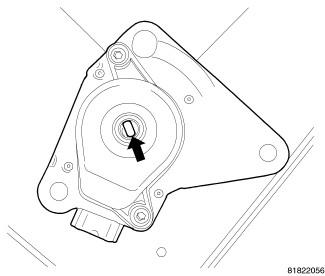

Fig 1: Flow Management Shaft Slot

Courtesy of CHRYSLER LLC

1. Make sure that slot in shaft is not damaged.

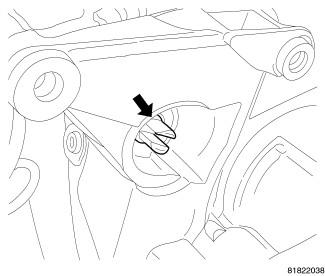

   Fig 2: Flow Management Valve Shaft

   Courtesy of CHRYSLER LLC
2. Make sure that tab in valve is not damaged.

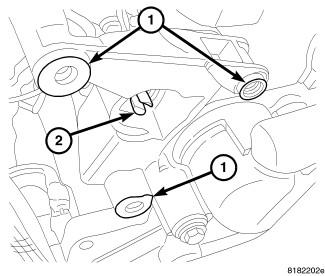

   Fig 3: Flow Valve Shaft & Mount

   Courtesy of CHRYSLER LLC
3. Align tab in valve with slot in intake manifold shaft (2) and rotate valve counterclock wise until valve drops onto location pin mounting (1).

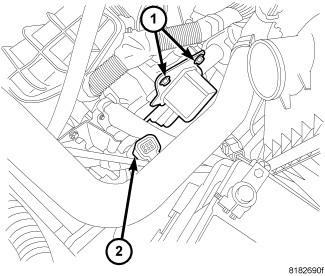

   Fig 4: Electrical Connector

   Courtesy of CHRYSLER LLC
4. Install mounting bolts (1) and tighten to 6 N.m (53 in. lbs.).
5. Connect electrical connector (2).
6. Install air tube.
7. Connect negative battery cable.
