Diesel Engine

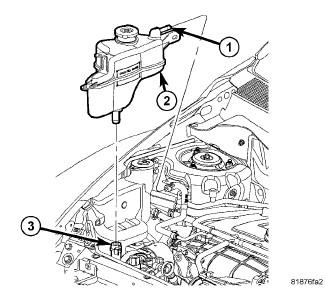

Fig 1: Coolant Container - Diesel Engine

Courtesy of CHRYSLER LLC

1 - RETURN FITTING

2 - PRESSURE CONTAINER

3 - COOLANT HOSE

Lower the pressure container (2) into the engine compartment and connect the coolant hose (3) at bottom of the pressure container (2).
Position the pressure container (2) and install the mounting bolts. Tighten the mounting bolts to 4 N.m (35 lbs. in.).
Connect the coolant return hose to the coolant recovery container (2).
Refill the cooling system. Refer to Standard Procedure .
