SENSOR, Crankshaft Position: Installation: Installation

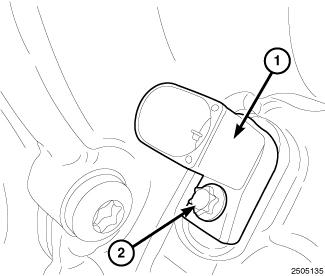

Fig 1: Identifying Crankshaft Position Sensor & Bolt

Courtesy of CHRYSLER LLC

1. Install the crankshaft position sensor (1). Tighten bolt (2) to 8 N.m (71 in. lbs).

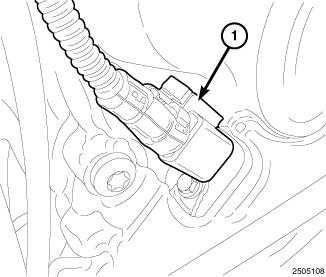

   Fig 2: Identifying Crankshaft Position Sensor Harness Connector

   Courtesy of CHRYSLER LLC
2. Connect the crankshaft position sensor harness connector (1).

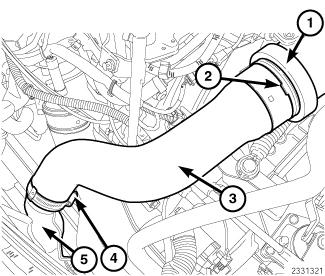

   Fig 3: Identifying Upper Charge Air Tube, Lock Ring. Lower Charge Air Tube, Clamp & Charge Air Cooler (Cac) Inlet

   Courtesy of CHRYSLER LLC
3. Connect the lower charge air tube (3) from the charge air cooler (CAC) inlet (5) and securely tighten clamp (4).
4. Install the lower charge air tube (3) to the upper charge air tube (1) to turbocharger and lock the lock ring in place.
5. Install the negative battery cable.
