CAPACITOR, Ignition: Installation: Installation

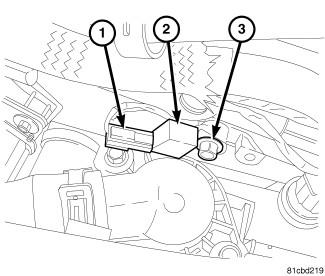

Fig 1: Ignition Capacitor

Courtesy of CHRYSLER LLC

1. Install ignition coil capacitor (2) and bolt (3), tighten bolt to 10 N.m (88.5 ft. lbs.).
2. Connect electrical connector (1).
3. Connect the negative battery cable, tighten the nut to 5 N.m (45 in. lbs.).
