CYLINDER, Ignition Lock: Installation: Installation

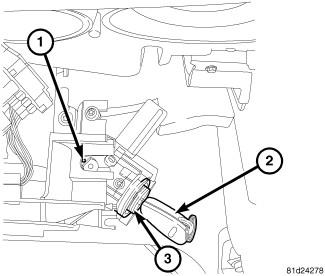

Fig 1: Identifying Ignition Key/Lock Cylinder

Courtesy of CHRYSLER LLC

1. Place actuator in the lock cylinder housing to the RUN position (if not already there).
2. Insert key into key cylinder and turn key cylinder to the RUN position.
3. Align the retaining tab on the key cylinder with the slot in the top of the lock cylinder housing.
4. Slide key cylinder into the lock cylinder housing until key cylinder retaining tab locks the cylinder into place.
5. Rotate key back and forth (OFF to START), then remove and reinstall it, making sure key cylinder and lock cylinder housing operate properly.

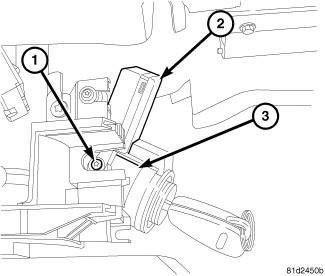

   Fig 2: Identifying Ignition Key/Lock Cylinder

   Courtesy of CHRYSLER LLC
6. Slide the ring of SKREEM/WCM (2) over lock cylinder housing (3) and engage the retainer fingers in the recesses formed on the lock cylinder housing.
7. Install screw (1) fastening the SKREEM/WCM (2) to lock cylinder housing (3). Tighten screw to 2.5 N.m (22 in. lbs.).

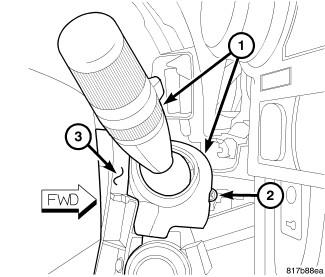

   Fig 3: Removing/Installing Right Multi-function Switch

   Courtesy of CHRYSLER LLC
8. Install and tighten the screw (2) that secures the mounting tab on the back of the right multi-function switch (1) to the mounting bracket on the clockspring (3).

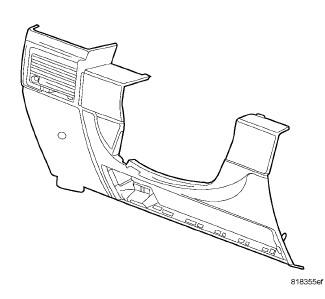

   Fig 4: Steering Column Cover

   Courtesy of CHRYSLER LLC
9. Install steering column opening cover. Refer to COVER, Steering Column Opening, Installation .
   Fig 5: Steering Column Shrouds

   Courtesy of CHRYSLER LLC
10. Install upper (1) and lower (2) steering column shrouds. Refer to SHROUD, Steering Column, Lower, Installation or SHROUD, Steering Column, Upper, Installation .
    Fig 6: Air Cleaner Box And Snorkel

    Courtesy of CHRYSLER LLC
11. Install air cleaner fresh air duct (2) and disconnect and isolate negative battery cable at battery. Refer to BATTERY, Installation .
12. Check operation of all steering column mounted components.
