TUBE, Water Inlet, Gas Engine: Installation: Installation

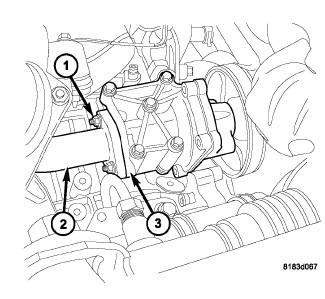

Fig 1: Water Pump Inlet Tube - Gas Engine

Courtesy of CHRYSLER LLC

1 - NUTS

2 - WATER PUMP INLET TUBE

3 - WATER PUMP HOUSING

1. Inspect the O-ring for damage before installing the tube. Replace O-ring as necessary.
2. Lubricate O-rings with soapy water.
3. Install new water inlet gasket between tube and water pump housing (2).
4. Position water pump inlet tube (3) on water pump housing (2). Hand tighten nuts to aide in tube alignment.
5. Install secondary thermostat and coolant adapter. Refer to THERMOSTAT, Installation .
6. Tighten coolant tube nuts (1) to 24 N.m (212 in. lbs.).
7. Fill cooling system. Refer to Standard Procedure .
