Intelligent Battery Sensor (IBS) - Description
DESCRIPTION

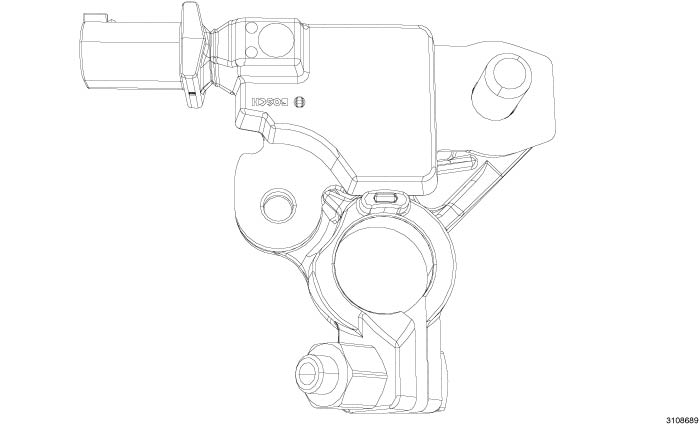

The Intelligent Battery Sensor (IBS) is mounted directly on the 12 VDC battery's negative post. The battery post clamp nut is a captive nut and the stud will break if the nut is removed.
