Rear

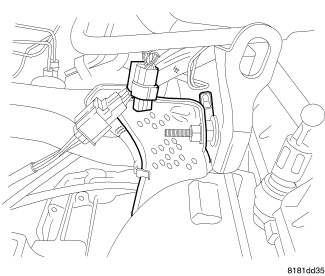

REAR





1. Lubricate sensor o-ring.
2. Install sensor utilizing twisting motion. Make sure sensor is fully seated. Do not drive sensor into the bore with screw. This can cause sensor to be incorrectly seated causing engine to fail.
3. Install mounting bolt and tighten to 9 Nm (79.5 in. lbs.).





4. Carefully attach electrical connector to camshaft position sensor. Feel for positive lock (click). Installation at angle may damage the sensor pins.

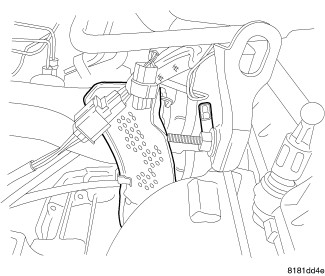

5. Install heat shield onto mounting stud.
6. Install heat shield retaining nut and tighten.





7. Connect negative battery cable.
