Exhaust Manifold

EXHAUST MANIFOLD

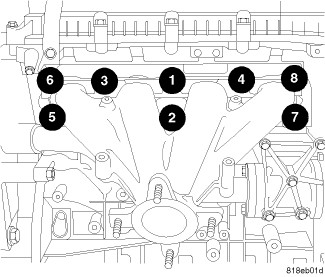

Tighten the exhaust manifold bolts 34 Nm (25 ft. lbs.).

Install exhaust manifold heat shields
Tighten bolts 12 Nm (105 in. lbs.)

Install exhaust pipe to manifold.
Tighten fasteners 28 Nm (250 in. lbs.)
