Front Fore And Aft

INSTALLATION

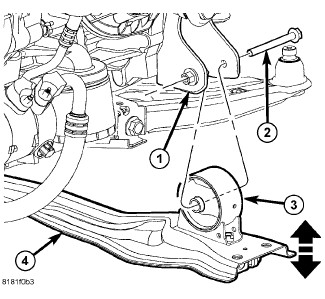

1. Install the fore/aft crossmember and install the engine anti-roll mount (3) through bolt (2).

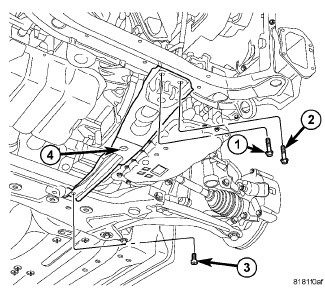

2. Install the bolts (1, 2 and 3), and tighten using the following sequence:
a. Tighten the bolt (1) to 78 Nm (58 ft. lbs.).
b. Tighten the bolt (2) to 78 Nm (58 ft. lbs.).
c. Tighten the bolt (3) to 129 Nm (95 ft. lbs.).





3. Tighten the bolt (2) to 65 Nm (48 ft. lbs.).

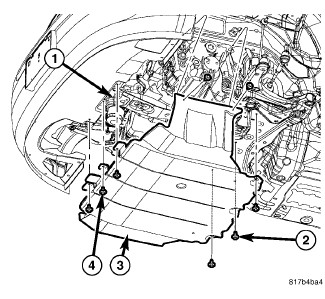

4. If equipped, install the belly pan.
5. Install the three front screws (4), the three rear screws (2) and on push pin fastener into the center of the belly pan.
