Outside Rearview Mirror - Installation

INSTALLATION

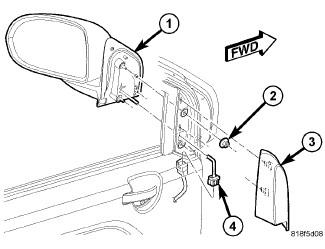

1. Install the mirror (1).
2. Install the nuts (2) and tighten to 5 Nm (44 in. lbs.).
3. Connect the electrical connector (4).
4. Position the mirror trim flag (3) and seat the clips fully.
