Ladder Frame - Installation

INSTALLATION






NOTE: When using RTV, the sealing surfaces must be clean and free from grease and oil.

NOTE: When using RTV, parts should be assembled in 10 minutes and tighten to final torque within 45 minutes.

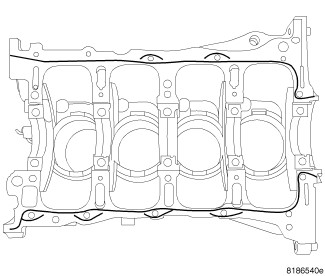

1. Apply a 2 mm bead of Mopar(R) engine sealant RTV or equivalent as shown.

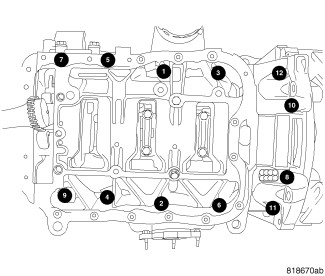

2. Install bolts and tighten as shown following a two step method.
- First: All to 10 Nm (89 in. lbs.).
- Second: All to 26 Nm (19 ft. lbs.).

3. Install balance shaft moduleEngine Oil Pump - Installation.
4. Install oil panEngine Oil Pan - Installation.
