Procedures

INSPECTION





1. Remove timing chain coverEngine Timing Cover(s) - Removal.
2. Remove oil panEngine Oil Pan - Removal.

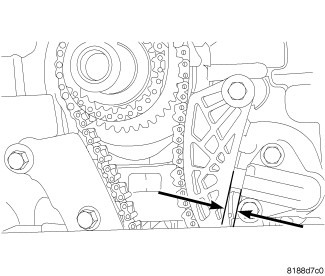

3. Measure the distance between the tensioner body and the guide shoe as shown.
4. If the distance is 10.1 mm (0.397 in.) or greater, replace the chain.
