Infrared Temperature Sensor - Description

DESCRIPTION

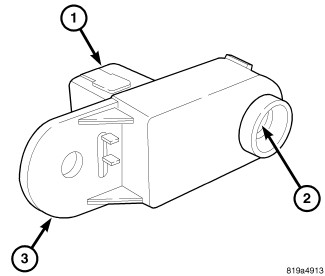

NOTE: Typical infrared temperature sensor shown.

The infrared temperature sensor consists of an infrared transducer concealed behind a clear lens (2) located in a molded plastic housing with an integral wire connector receptacle (1) and a mounting tab (3).

The infrared sensor is used only on models equipped with the Automatic Temperature Control (ATC) heating-A/C system.
