Engine Coolant Temperature Sensor - Installation

GAS ENGINE

COOLANT ADAPTER MOUNTED










1. Lubricate the ECT sensor O-ring with coolant.

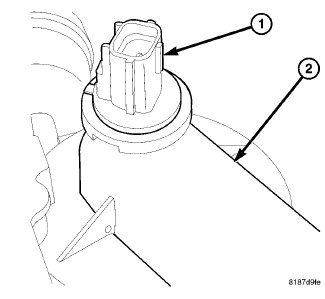

2. Install the ECT Sensor (1). Make sure the coolant sensor is locked in place.
3. Connect the ECT Sensor electrical connector.
4. Fill the cooling system Service and Repair.
5. Connect the negative battery cable.
