Removal

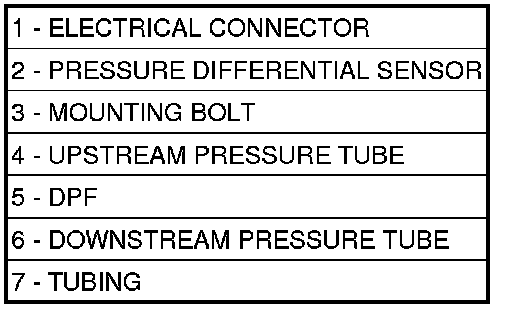

REMOVAL










1. Disconnect and isolate negative battery cable.
2. Remove electrical connector at pressure differential sensor (2).
3. Remove upstream exhaust pressure tube (4) from catalytic converter
4. Remove downstream pressure tube (6) from catalytic converter.
5. Remove pressure differential sensor mounting bolt.
6. Remove pressure differential sensor (2) and tubing (7) from vehicle.
7. Remove tubing (7) from pressure differential sensor (2).
