Installation

INSTALLATION

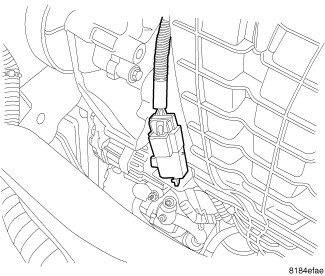

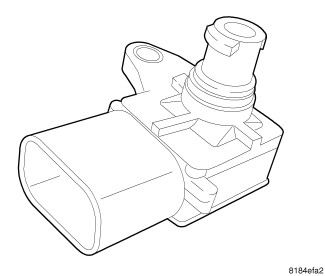

1. Install manifold absolute pressure (MAP) sensor to intake manifold.





2. Tighten screw to 4.5 Nm (40 in. lbs.).
3. Connect electrical connector to sensor.
4. Connect the negative battery cable.
