Ignition Capacitor - Installation

INSTALLATION

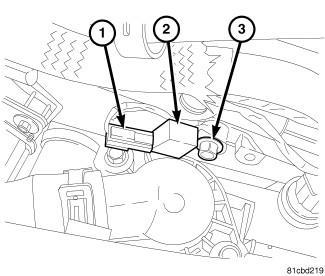

1. Install ignition coil capacitor (2) and bolt (3), tighten bolt to 10 Nm (88.5 ft. lbs.).
2. Connect electrical connector (1).
3. Connect the negative battery cable, tighten the nut to 5 Nm (45 in. lbs.).
