Description






DESCRIPTION

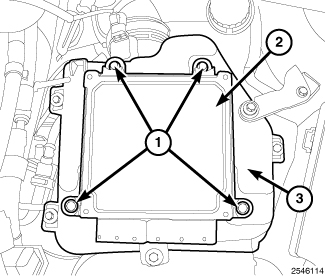

The Powertrain Control Module (PCM) is located in the left side of engine compartment and is attached to the top of air cleaner housing (2).
