Gearshift Cable - Installation

INSTALLATION

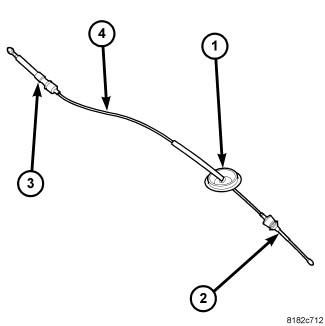

1. Install the shifter cable (1, 2) through the bulkhead and into the passenger compartment.

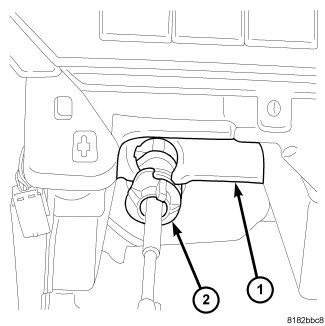

2. Install the cable into the bracket (2) at bulkhead (1).





3. Insure that the cable clips into place.
4. Tighten the hold down bolts at the air bag module Occupant Restraint Controller - Installation.
5. Install the shifterTransmission Shifter - Installation.

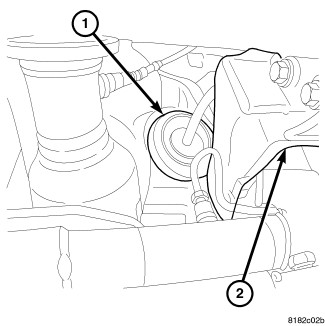

6. Install the shifter cable grommet (1) at the bulkhead.

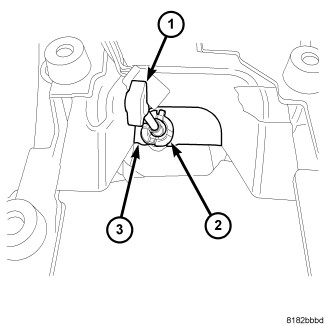

7. Clip the cable (2) into the bracket (1) install the nut (4) over the shifter cable at the transmission shift lever Adjustments.





8. Connect the negative battery cable (2).
9. Install the air box (1)
