Transmission Range Sensor - Installation

INSTALLATION

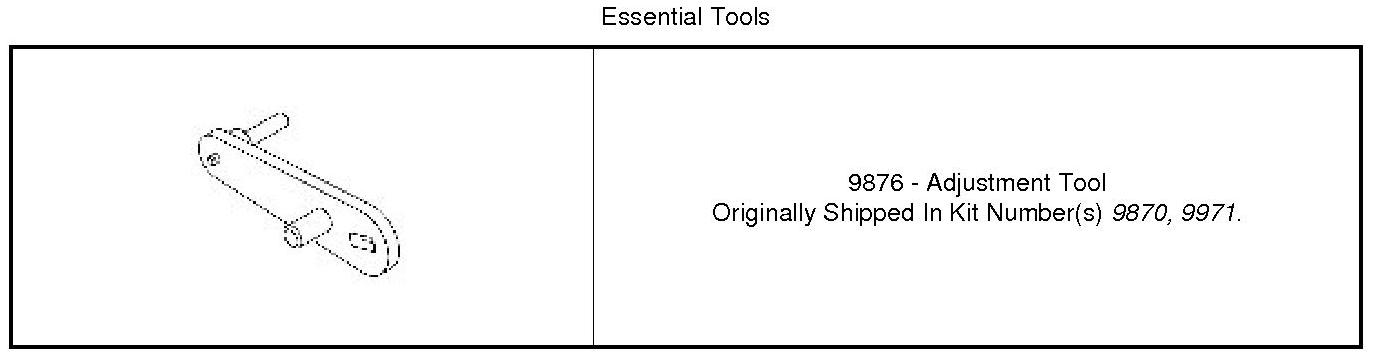

Special Tools:

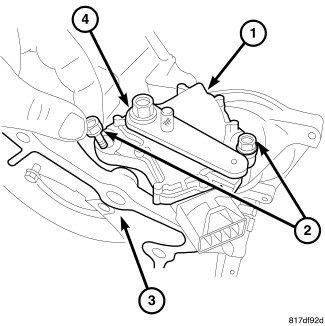

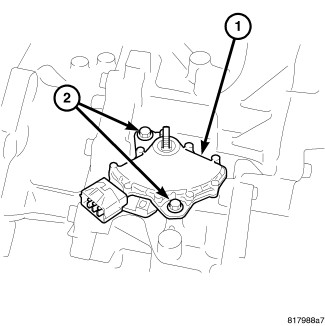

1. Install TRS into position (1).

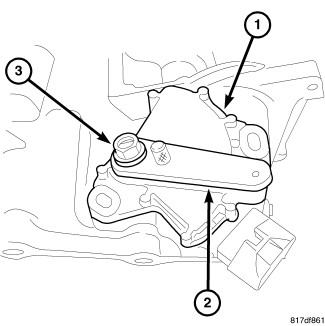

2. Put the manual shaft in the N position (3).
3. Install Alignment Tool (2) and adjust the position of the TRS (1).





4. Install and tighten the mounting bolts of the TRS to 6 Nm (49 in. lbs.).

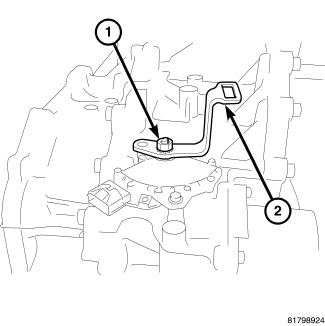

5. Remove Alignment Tool and Install the shift lever (2) onto the manual shaft (1).
6. Install and tighten the mounting nut to 17 Nm (150 in. lbs.).
