Windshield - Removal






REMOVAL

1. Before proceeding with the following repair procedure, review all warnings and cautions. Service Precautions
2. Remove rear view mirror, Interior Rearview Mirror - Removal.
3. Remove the cowl grille, Cowl Panel Cover - Removal.

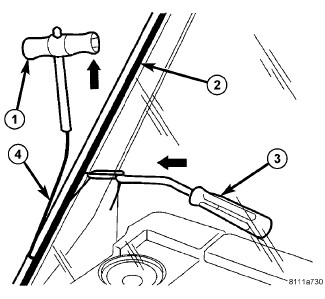

4. Using a windshield cut-out wire separate the adhesive.
5. Carefully remove windshield.
