Fluid - Differential: Service and Repair

STANDARD PROCEDURE - DRAIN AND FILL

Special Tools:

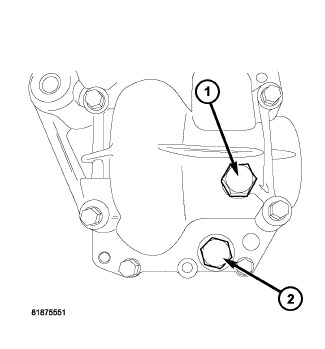

1. Remove fill plug (1) and drain plug (2). Drain fluid.
2. Install drain plug (2) and tighten to 32 Nm (24 ft.lb.).
3. Fill with MOPAR(R) MS SAE 80W90 Gear Lube to bottom of fill plug.
4. Install fill plug (1) and tighten to 32 Nm (24 ft.lb.).
