Valve, Fuel Quantity Control: Installation: Installation

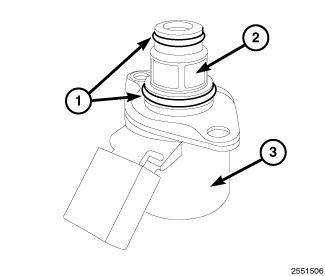

Fig 1: O-Rings & Fuel Quantity Control Valve

Courtesy of CHRYSLER GROUP, LLC

1. Install new O-rings (1) onto the fuel quantity control valve (3).

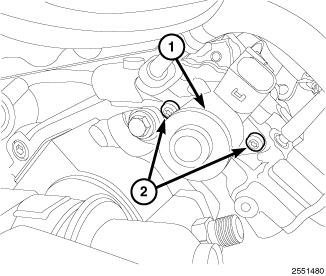

   Fig 2: Fuel Quantity Control Valve & Bolts

   Courtesy of CHRYSLER GROUP, LLC
2. Install the fuel quantity control valve (1). Tighten bolts (2) to 7 N.m (62 in. lbs.).
   Fig 3: Fuel Quantity Control Valve Harness Connector

   Courtesy of CHRYSLER GROUP, LLC
3. Connect the fuel quantity control valve harness connector (1).
4. Install the mixing chamber.
5. Install the engine cover.
6. Connect the negative battery cable.
