Regulator, Fuel Pressure: Installation: Installation

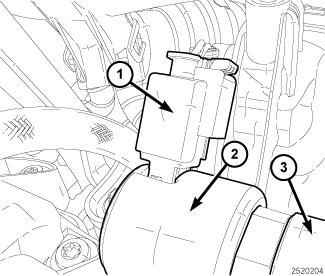

Fig 1: Fuel Rail Pressure Sensor Harness Connector
GC0138069Courtesy of CHRYSLER GROUP, LLC
  1. Install the fuel rail pressure sensor (2) onto fuel rail (3). Tighten to 35 N.m (26 ft. lbs.).
  2. Connect the fuel rail pressure sensor harness connector (1).
  3. Connect the negative battery cable.
