Sensor, Mass Airflow (MAF): Installation: Installation

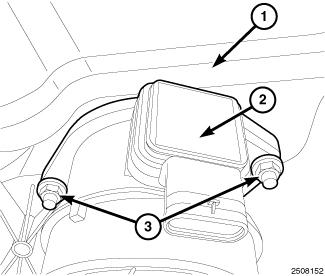

Fig 1: Air Cleaner Housing, MAF Sensor & Nuts

Courtesy of CHRYSLER GROUP, LLC

1. Install the Mass Air Flow (MAF) sensor (2) to the air cleaner housing (1). Tighten nuts (3) to 6 N.m (53 in. lbs.).

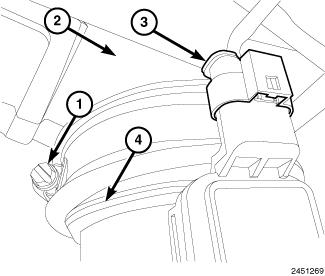

   Fig 2: Mass Air Flow Sensor, Harness Connector, Turbocharger Inlet Tube & Clamp

   Courtesy of CHRYSLER GROUP, LLC
2. Connect the turbocharger inlet tube (2) to the MAF sensor (4) and securely tighten clamp (1).
3. Connect the MAF sensor harness connector (3).
4. Connect the negative battery cable.
5. With the scan tool, navigate to Miscellaneous Functions and perform the MAF Sensor Replacement Initialization routine.
