Sensor, Crankshaft Position: Installation: Installation

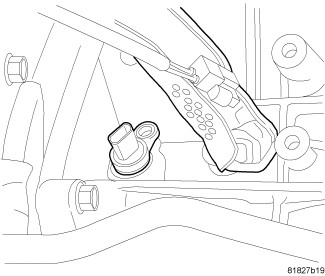

Fig 1: Crankshaft Position Sensor Disconnected

Courtesy of CHRYSLER GROUP, LLC

1. Check O-ring for damage and lubricate the O-ring with engine oil before installing sensor.
2. Using a twisting motion, install the crankshaft position sensor.
3. Install the crankshaft position sensor bolt. Tighten the bolt to 9 N.m (80 in. lbs.).

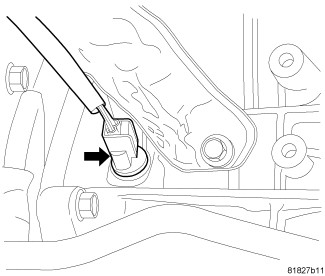

   Fig 2: Crankshaft Position Sensor

   Courtesy of CHRYSLER GROUP, LLC
4. Connect and lock the electrical connector to the crankshaft position sensor.

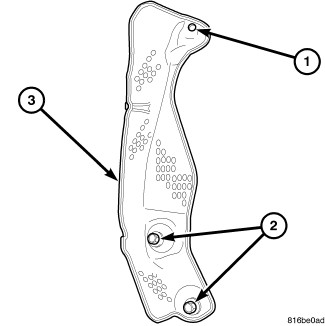

   Fig 3: Heat Shield Retaining Bolts

   Courtesy of CHRYSLER GROUP, LLC
5. Install the heat shield (3) with one nut (1) and two heat shield retaining bolts (2).

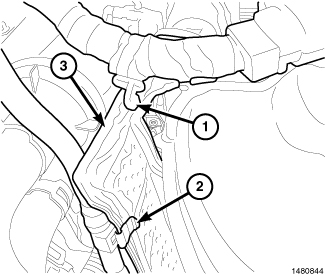

   Fig 4: Upstream O2 Sensor Wire Harness Retainer

   Courtesy of CHRYSLER GROUP, LLC
6. Install the upstream O2 sensor wire harness retainer (1) and crankshaft position sensor wire harness retainer (2) to the heat shield (3).

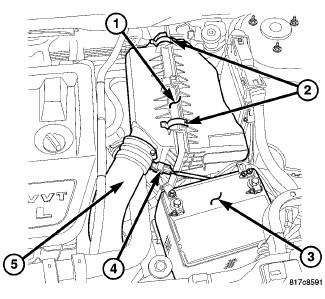

   Fig 5: Air Cleaner Housing

   Courtesy of CHRYSLER GROUP, LLC
7. Install the air cleaner body (1). Refer to BODY, AIR CLEANER, INSTALLATION or BODY, AIR CLEANER, INSTALLATION .

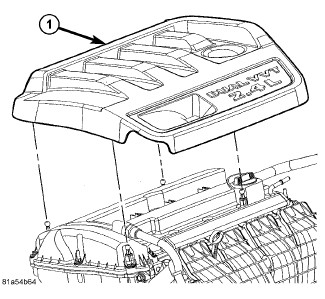

   Fig 6: Engine Cover

   Courtesy of CHRYSLER GROUP, LLC
8. Connect the negative battery cable.
9. Install the engine cover (1).
