Fuel System Pressure Release Procedure

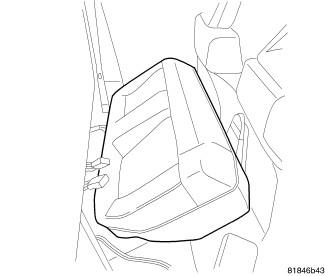

Fig 1: Cushion Loose

Courtesy of CHRYSLER GROUP, LLC

Remove lower rear seat cushion.

Fig 2: Module Cover
Courtesy of CHRYSLER GROUP, LLC
Remove the fuel pump module cover.

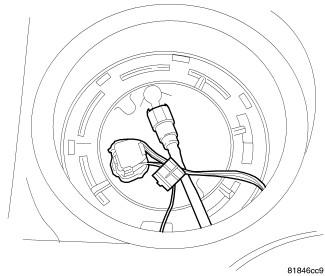

Fig 3: Fuel & Electrical Connections
Courtesy of CHRYSLER GROUP, LLC
Disconnect the electrical connector for fuel pump module.
Start and run engine until it stalls.
Attempt restarting engine until it will no longer run.
Turn ignition key to OFF position.
Disconnect negative battery cable.
One or more Diagnostic Trouble Codes (DTC's) may have been stored in PCM memory. The scan tool must be used to erase a DTC.
