Throttle Body: Installation: Installation

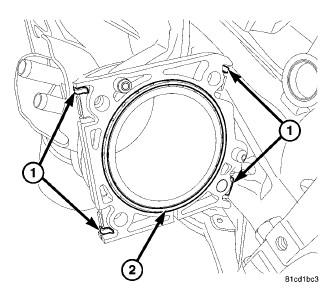

Fig 1: Throttle Body Gasket

Courtesy of CHRYSLER GROUP, LLC

Install a new intake manifold to throttle body gasket (2), if replacement was necessary.
Install four new four j-nuts (1), if replacement was necessary.

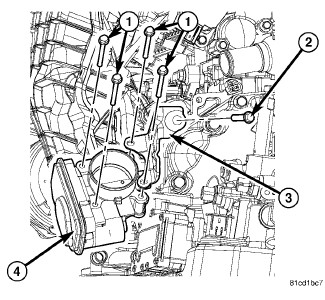

Fig 2: Throttle Body, Bracket & Bolts
Courtesy of CHRYSLER GROUP, LLC

CAUTION:
DO NOT OVER TORQUE. Over tightening can cause damage to the throttle body, gaskets, bolts and/or the intake manifold.
Install throttle body (4) to intake manifold.
Install throttle body support bracket (3), bolt (2) and tighten bracket bolt to 25 N.m (18 ft. lbs.).
Install four bolts (1) and hand tighten.

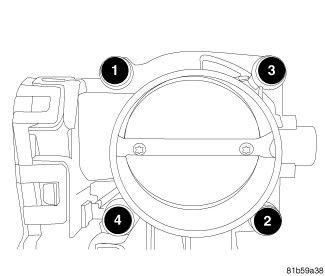

Fig 3: Throttle Body Tightening Sequence
Courtesy of CHRYSLER GROUP, LLC

CAUTION:
The throttle body must be torqued in a mandatory torque sequence. Tighten in a criss - cross pattern to specification.
Tighten the bolts in a mandatory torque criss - cross pattern sequence to 7.5 N.m (65 in. lbs.).

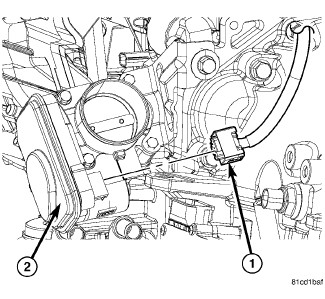

Fig 4: Throttle Body Electrical Connector
Courtesy of CHRYSLER GROUP, LLC
Connect electrical connector (1) to throttle body (2).
Install clean air hose and tighten clamps to 4 N.m (35 in. lbs.).
Connect negative battery cable, tighten nut to 5 N.m (45 in. lbs.).
Use a scan tool and clear all fault codes then perform the ETC RELEARN function.
