Clutch Assembly, Modular: Description: Description

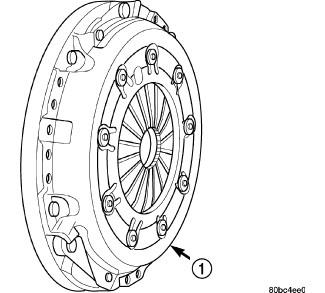

Fig 1: Modular Clutch Assembly-Typical

Courtesy of CHRYSLER GROUP, LLC

The modular clutch assembly (1) is located between the engine and manual transaxle in the transaxle bellhousing, and is responsible for transmitting engine power to the transaxle. The modular clutch is an assembly which incorporates a the following components:

• Flywheel
• Clutch Disc
• Pressure Plate
• Diaphragm Spring
• Sensor
• Cover
